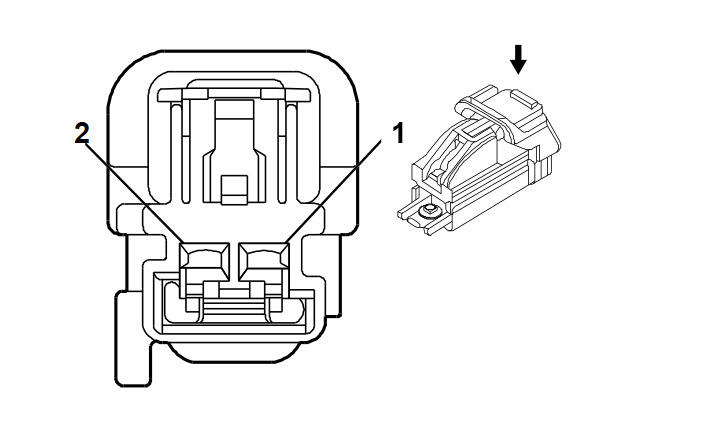

B60 Passenger Presence Sensor (UHH-AL0)
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 7283-6443-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.5 YESC Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/BN |
7571 |
Passenger Seat Belt Reminder Signal |
I |
- |
| 2 |
0.5 |
BK/OG |
1361 |
Passenger Seat Belt Switch Low Reference |
I |
- |
