A38 Reductant Pump and Sensor Assembly (LH7)
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

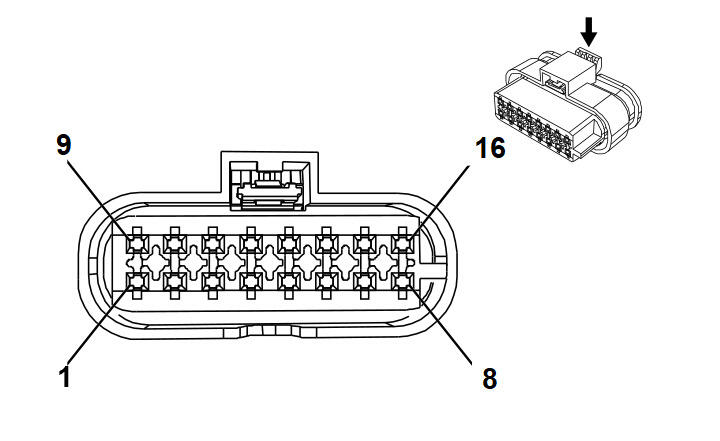

Connector Part Information
- Harness Type: Reductant Tank
- OEM Connector: 13935934
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 1.2 Multilock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD |
3244 |
Diesel Exhaust Fluid Tank Temperature Sensor Signal |
I |
- |
| 2 |
0.5 |
BK |
3245 |
Diesel Exhaust Fluid Tank Temperature Sensor Feedback Signal |
I |
- |
| 3 |
0.5 |
RD |
3107 |
Diesel Exhaust Fluid Pressure Sensor Low Reference |
I |
- |
| 4 |
0.5 |
BK |
3108 |
Diesel Exhaust Fluid Pressure Sensor Signal |
I |
- |
| 5 |
0.5 |
BK |
3106 |
Diesel Exhaust Fluid Pressure Sensor 5 Volt Reference |
I |
- |
| 6 |
1 |
RD |
3029 |
Diesel Exhaust Fluid Tank Level Sensor Low Reference |
I |
- |
| 7 |
1 |
GY |
3876 |
Diesel Exhaust Fluid Smart Pump Supply Voltage Phase 3 |
I |
- |
| 8 |
1 |
RD |
3875 |
Diesel Exhaust Fluid Smart Pump Supply Voltage Phase 2 |
I |
- |
| 9 |
1 |
BK |
3677 |
Diesel Exhaust Fluid Reservoir Heater Control |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
1 |
BK |
4318 |
Diesel Exhaust Fluid Tank Heater Low Control |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.5 |
BK |
7290 |
Diesel Exhaust Fluid Sensor Voltage Reference 1 |
I |
- |
| 14 |
0.5 |
BK |
3028 |
Diesel Exhaust Fluid Tank Level Sensor Signal |
I |
- |
| 15 |
1 |
BK |
3104 |
Diesel Exhaust Fluid Smart Pump Low Reference |
I |
- |
| 16 |
1 |
BK |
3103 |
Diesel Exhaust Fluid Smart Pump Control |
I |
- |
