S2L Transmission Manual Shift Switch - Left
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

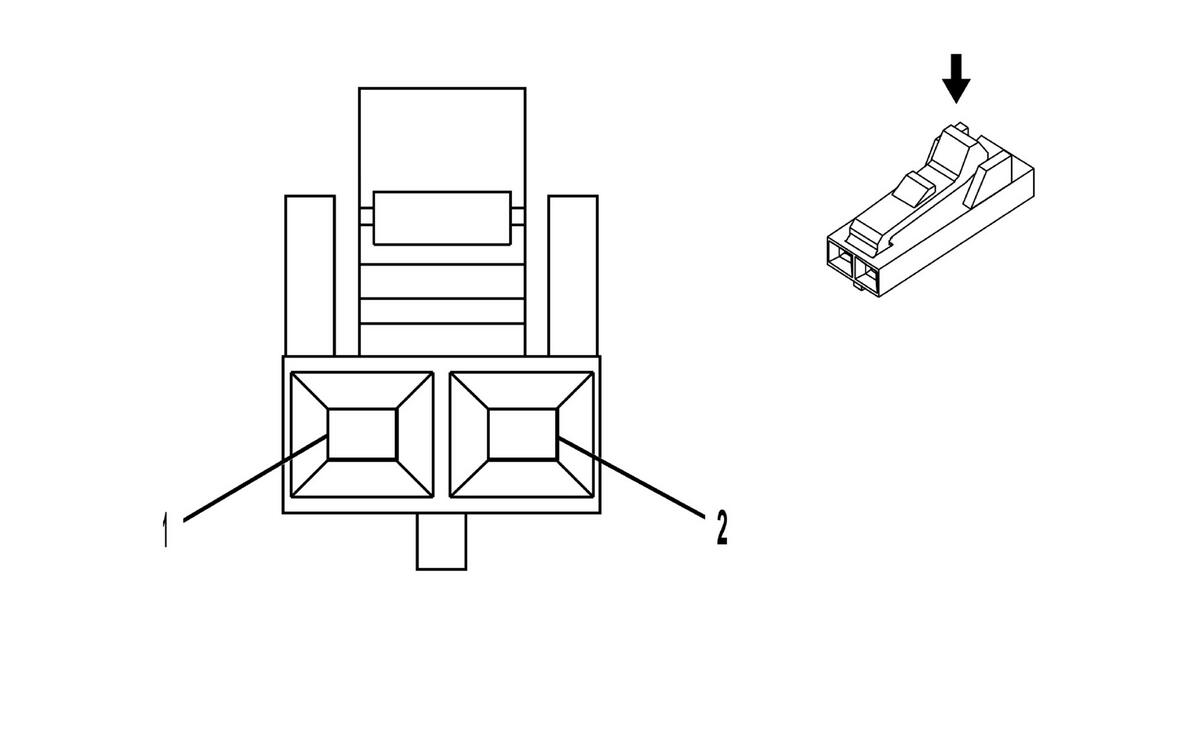

Connector Part Information
- Harness Type: Transmission Manual Shift Switch - Left
- OEM Connector: 104257-1
- Service Connector: Service by Harness -
- Description: 2-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BK |
1050 |
Ground |
I |
- |
| 2 |
- |
GN |
5525 |
Tap Up/Down Enable Signal |
I |
- |
