K85 Passenger Presence Module
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

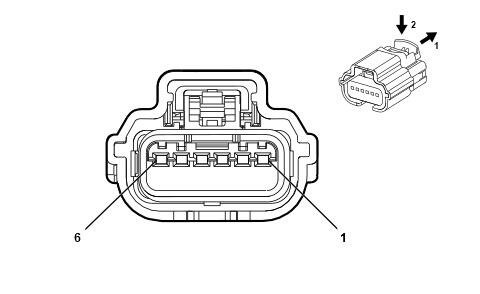

Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 31404-7132
- Service Connector: Service by Harness -
- Description: 6-Way F 64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / WH |
2040 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
BK / WH |
1251 |
Signal Ground |
I |
- |
| 5 |
0.35 |
GY / OG |
3946 |
Passenger Automatic Locking Retractor Switch Low Reference |
I |
- |
| 6 |
0.35 |
OG / BN |
3947 |
Passenger Automatic Locking Retractor Switch Signal |
I |
- |
