K182 Parking Assist Control Module X2 (UD5/UD7)
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

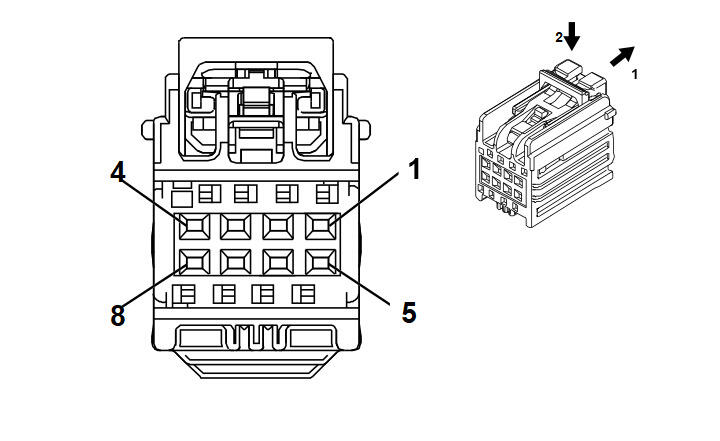

Connector Part Information
- Harness Type: Body
- OEM Connector: 13593893
- Service Connector: 19355209
- Description: 8-Way F YESC Kaizen Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
YE / WH |
2377 |
Right Rear Middle Parking Assist Sensor Signal |
I |
(UD5/UD7) |
| 3 |
0.5 |
YE |
2375 |
Left Rear Outer Parking Assist Sensor Signal |
I |
(UD5/UD7) |
| 4 |
0.5 |
BN / WH |
2374 |
Object Sensor Voltage Reference |
I |
(UD5/UD7) |
| 5 |
0.5 |
YE / VT |
2378 |
Right Rear Outer Parking Assist Sensor Signal |
I |
(UD5/UD7) |
| 6 |
0.5 |
YE / BU |
2376 |
Left Rear Middle Parking Assist Sensor Signal |
I |
(UD5/UD7) |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
BK / GY |
2379 |
Object Sensor Low Reference |
I |
(UD5/UD7) |
