K32 Steering Wheel Heating Control Module X2
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

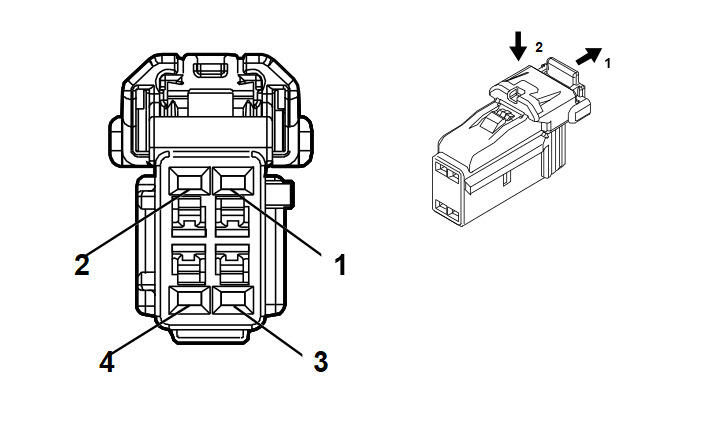

Connector Part Information
- Harness Type: Steering Wheel Heating Control Module
- OEM Connector: 13517405
- Service Connector: Service by Harness -
- Description: 4-Way F 1.2 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
RD |
5886 |
Steering Wheel Heating Temperature Sensor Signal |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
- |
BK / RD |
5888 |
Steering Wheel Heating High Control |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
