K32 Steering Wheel Heating Control Module X1
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

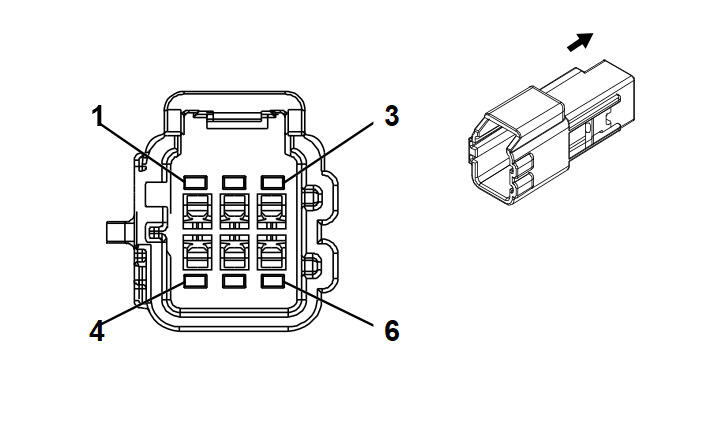

Connector Part Information
- Harness Type: Steering Wheel Heating Control Module
- OEM Connector: 13588646
- Service Connector: Service by Harness -
- Description: 6-Way M 1.2 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
YE / GY |
5883 |
Steering Wheel Heating Switch Signal |
I |
- |
| 2 |
- |
BN / WH |
5884 |
Steering Wheel Heating Switch LED Control |
I |
- |
| 3 |
- |
VT / WH |
1439 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 4 |
- |
BK |
1350 |
Ground |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
- |
GN / BU |
4119 |
HVAC Control Module LIN Bus 2 |
I |
- |
