B70 Liftgate Close Switch
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

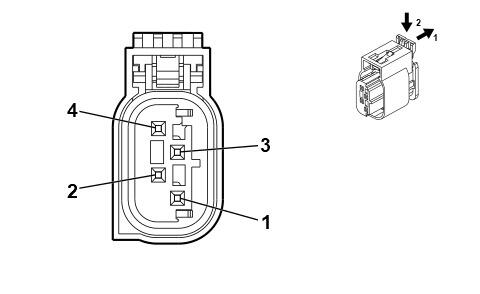

Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 13526216
- Service Connector: Service by Harness -
- Description: 4-Way F 0.64 MTS Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK / VT |
5801 |
Liftgate Object Sensor Low Reference |
I |
(TB5/TC2) |
| 2 |
0.5 |
GY / WH |
3034 |
Liftgate Close Switch LED Control |
I |
(TB5/TC2) |
| 3 |
0.5 |
GN |
3033 |
Liftgate Close Switch Signal |
I |
(TB5/TC2) |
| 4 |
0.5 |
BK / VT |
5801 |
Liftgate Object Sensor Low Reference |
I |
(TB5/TC2) |
