B14A Transmission Output Shaft Speed Sensor
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

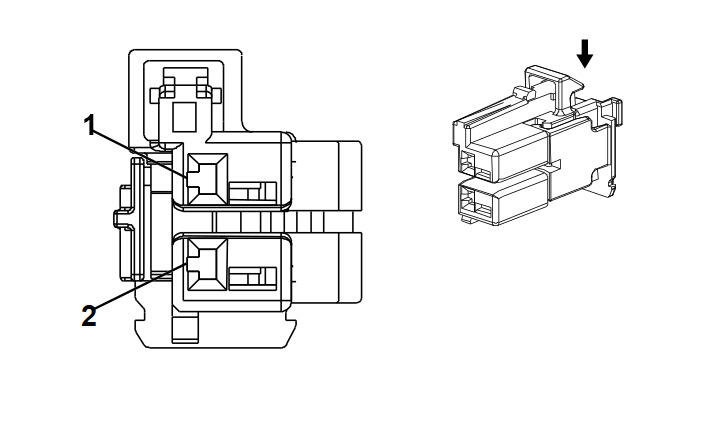

Connector Part Information
- Harness Type: Transmission Output Shaft Speed Sensor
- OEM Connector: 2203696-1
- Service Connector: Service by Harness -
- Description: 2-Way F 1.2 MCON Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
Not Available |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE / BU |
4171 |
Transmission Input Shaft Speed Sensor Circuit 9V Reference |
I |
- |
| 2 |
0.5 |
GY / BU |
6358 |
Output Speed Signal |
I |
- |
