A24P Door Handle Assembly - Passenger Exterior
WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

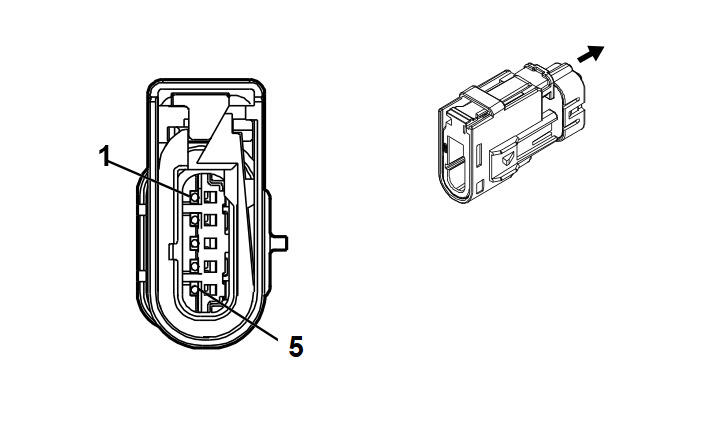

Connector Part Information
- Harness Type: Passenger Door
- OEM Connector: 13519367
- Service Connector: Service by Harness -
- Description: 5-Way M 1.2 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT / WH |
3571 |
Passenger Door Handle Switch Signal |
I |
(ATH/ATS) |
| 2 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BK |
650 |
Ground |
I |
(ATH/ATS) |
