Installation Procedure

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

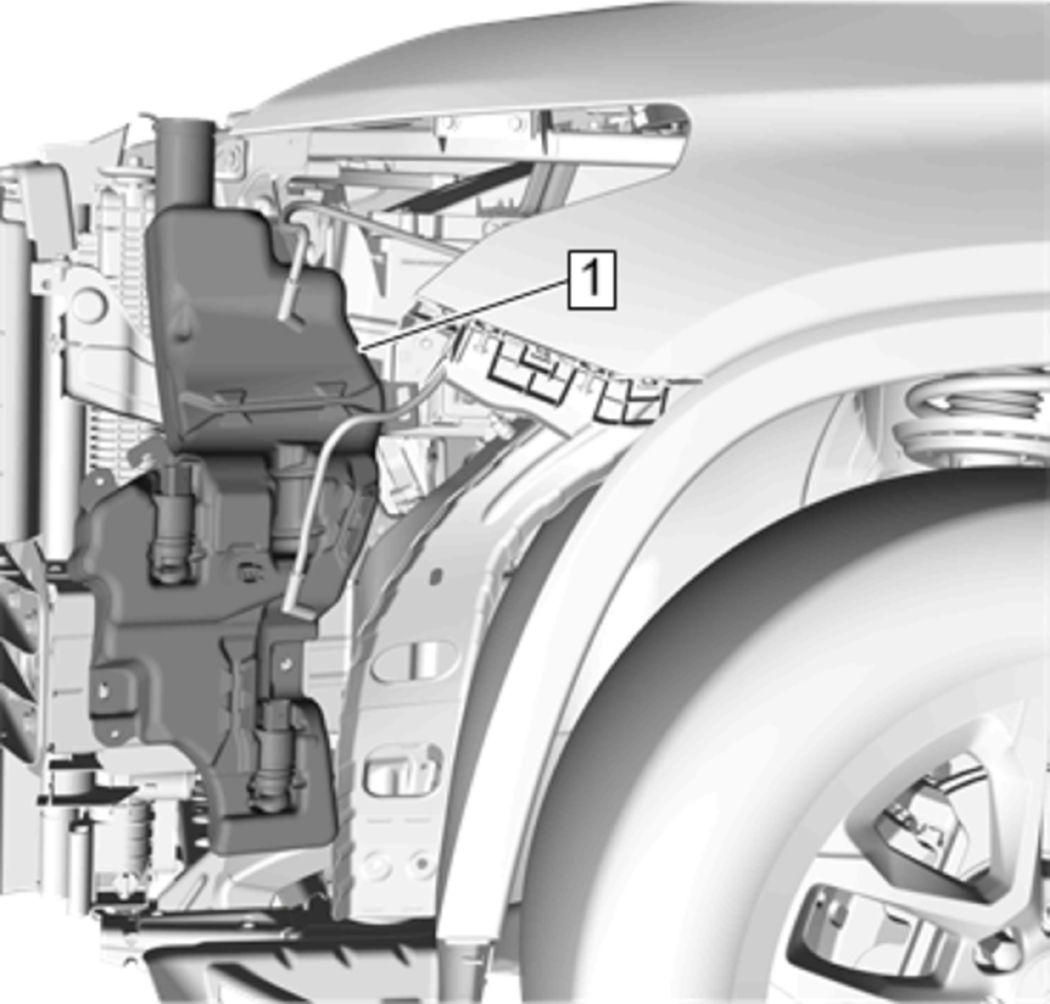

  1. GM4751067Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Solvent Container (1) - Install

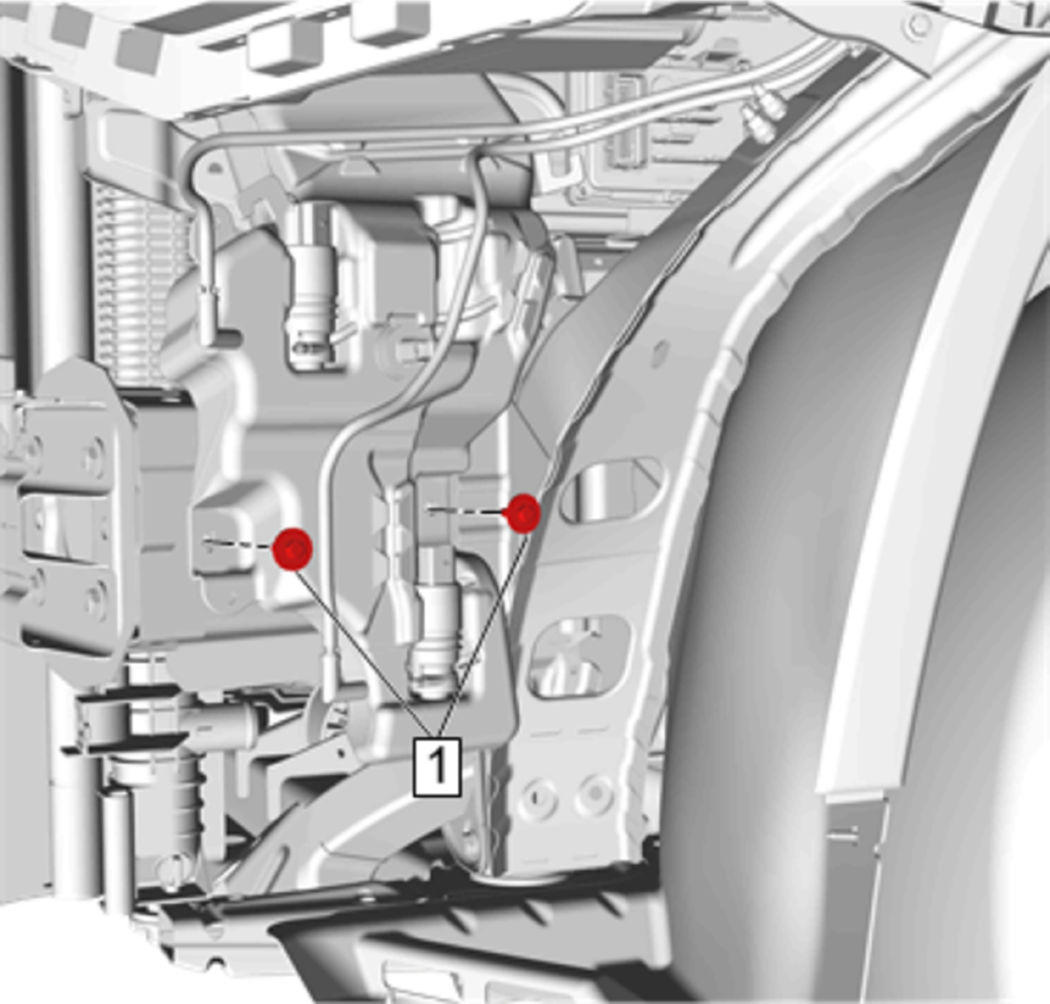

  2. GM4751069Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Windshield Washer Solvent Container Bolt (1) - Install and tighten [ 2x ] 9 N.m (80 lb/in)

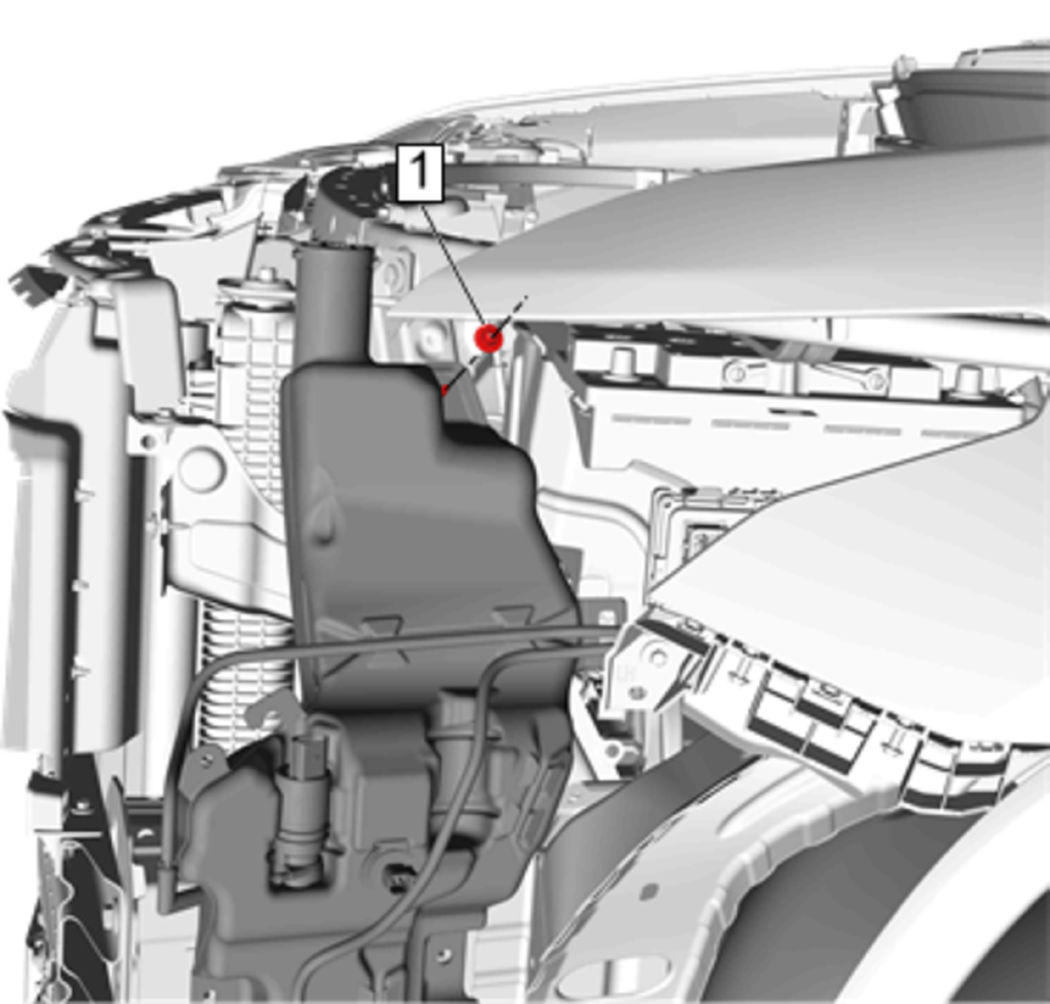

  3. GM4751068Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Solvent Container Nut (1) - Install and tighten 9 N.m (80 lb/in)

  4. Wiring Harness Connector Retainer @ Windshield Washer Solvent Container - Connect [ 3x ]
  5. Connect all electrical connectors.

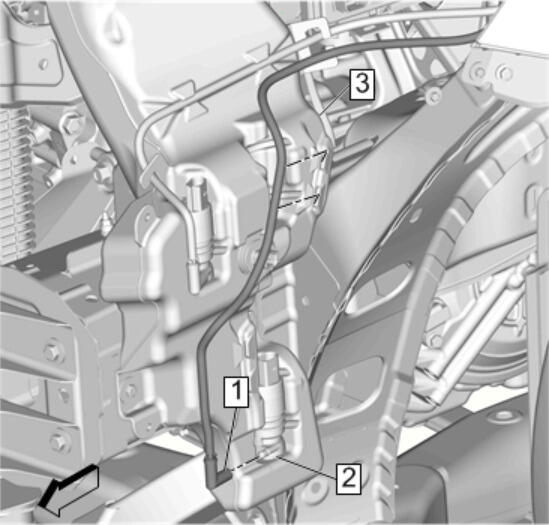

  6. GM4744725Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Pump Hose (1) @ Windshield Washer Pump (2) - Install

  7. Windshield Washer Pump Hose (1) @ Windshield Washer Solvent Container (3) - Install

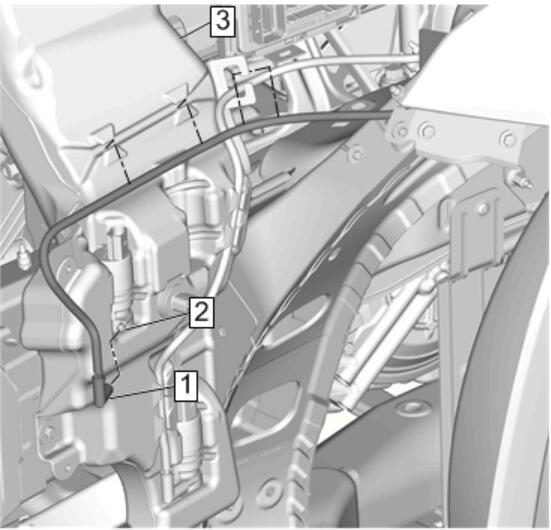

  8. GM4744736Courtesy of GENERAL MOTORS COMPANY

    Rear Window Washer Pump Hose (1) @ Rear Window Washer Pump (2) - Install

  9. Rear Window Washer Pump Hose (1) @ Windshield Washer Solvent Container (3) - Install
  10. Headlamp - Left Side - Install - Front Headlamp Replacement
