Dash Upper Extension Panel Extension Replacement

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

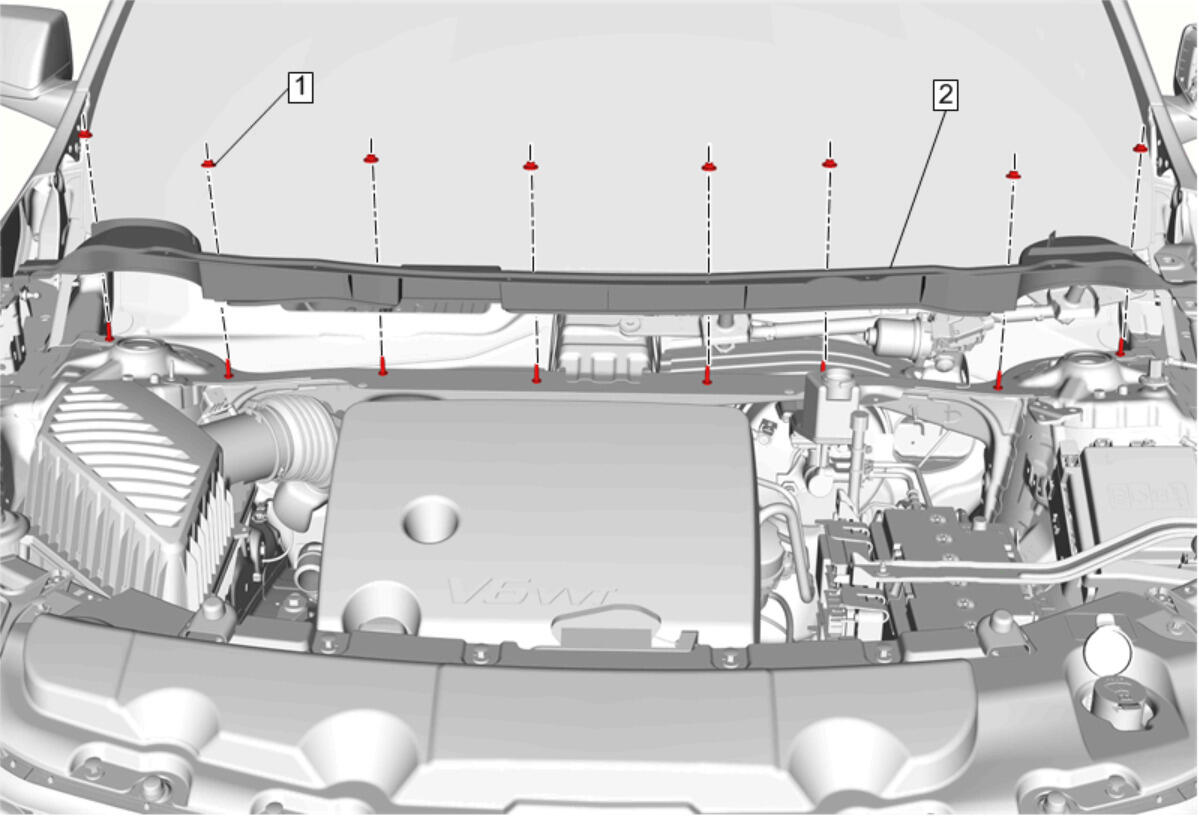

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel Replacement
1	Dash Panel Upper Extension Panel Extension Nut [ 8x ] CAUTION: Refer to Fastener Caution . Tighten 13 N.m (115 lb/in)
2	Dash Panel Upper Extension Panel Extension Procedure Lift up to clear the studs to remove the panel. Release the retainer as needed.

Callout

Component Name

Preliminary Procedure
Air Inlet Grille Panel Replacement

Dash Panel Upper Extension Panel Extension Nut [ 8x ]

CAUTION:

Refer to Fastener Caution .

Tighten
13 N.m (115 lb/in)

Dash Panel Upper Extension Panel Extension

Procedure

Lift up to clear the studs to remove the panel.
Release the retainer as needed.
