Instrument Panel Light Conductor Lamp Replacement

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Replacement

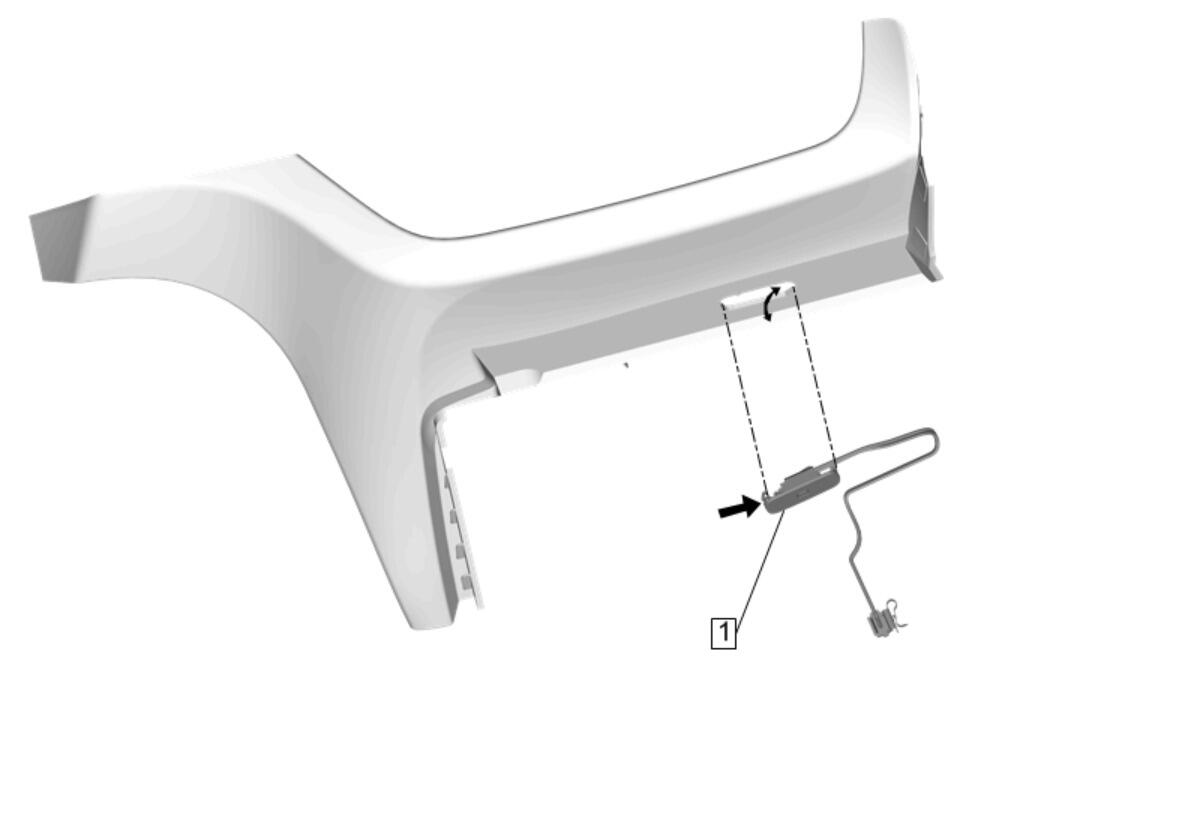

1	Instrument Panel Light Conductor Lamp Procedure Note the location and routing of the lamp prior to removal to ensure proper installation. Use a plastic trim tool to release the tab. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Instrument Panel Lower Trim Panel Replacement

Instrument Panel Light Conductor Lamp

Procedure

Note the location and routing of the lamp prior to removal to ensure proper installation.
Use a plastic trim tool to release the tab.
Disconnect the electrical connector.
