Front Turn Signal Lamp Bulb Replacement

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

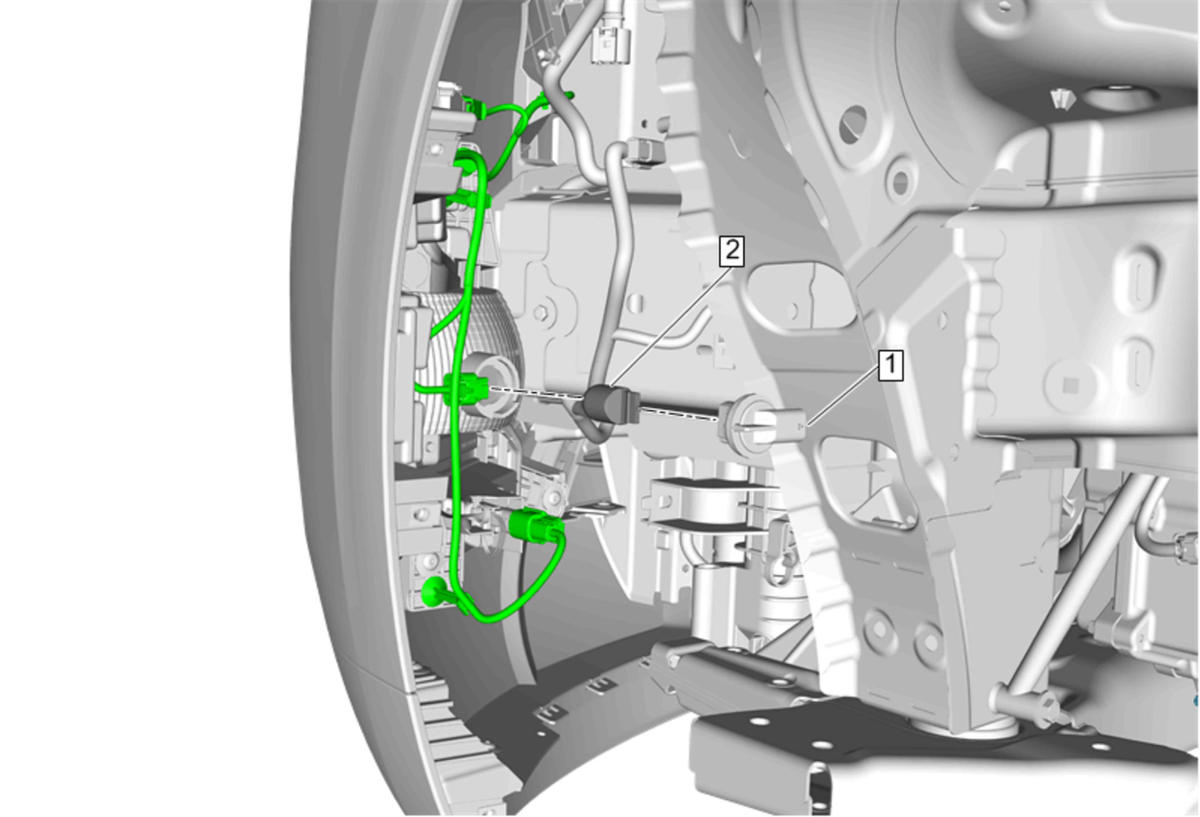

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement Disconnect the electrical connector.
1	Front Turn Signal Lamp Bulb Socket Procedure Rotate the bulb socket a quarter turn counterclockwise and remove.
2	Front Turn Signal Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Pull the bulb straight from the lamp socket.

Callout

Component Name

Preliminary Procedure

Front Wheelhouse Liner Replacement
Disconnect the electrical connector.

Front Turn Signal Lamp Bulb Socket
Procedure
Rotate the bulb socket a quarter turn counterclockwise and remove.

Front Turn Signal Lamp Bulb

WARNING:

Refer to Halogen Bulb Warning .

Procedure
Pull the bulb straight from the lamp socket.
