Front Side Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

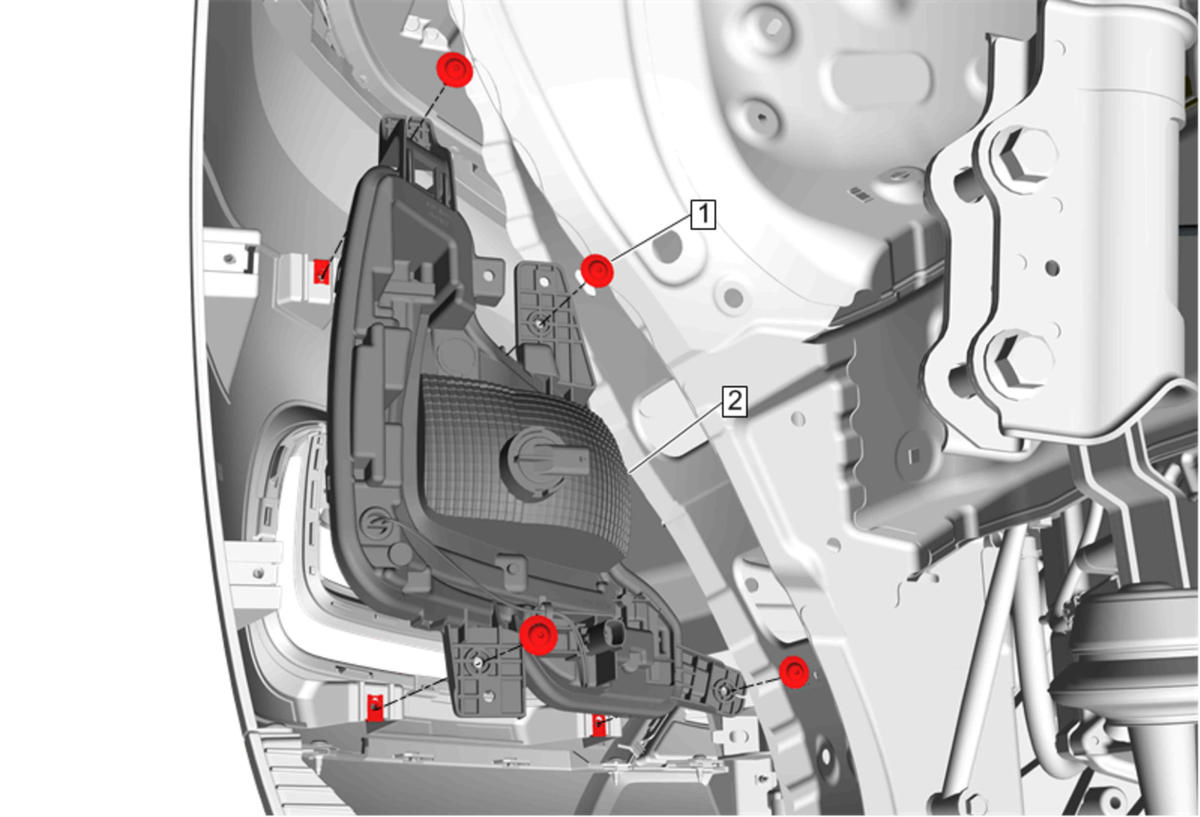

Callout	Component Name
Preliminary Procedures Front Wheelhouse Liner Replacement Disconnect the electrical connector. Disconnect and reposition harness as necessary.
1	Front Turn Signal Lamp Screw [ 4x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb/in)
2	Front Turn Signal Lamp Procedure Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Wheelhouse Liner Replacement
Disconnect the electrical connector.
Disconnect and reposition harness as necessary.

Front Turn Signal Lamp Screw [ 4x ]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb/in)

Front Turn Signal Lamp
Procedure
Transfer components as necessary.
