Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2021 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

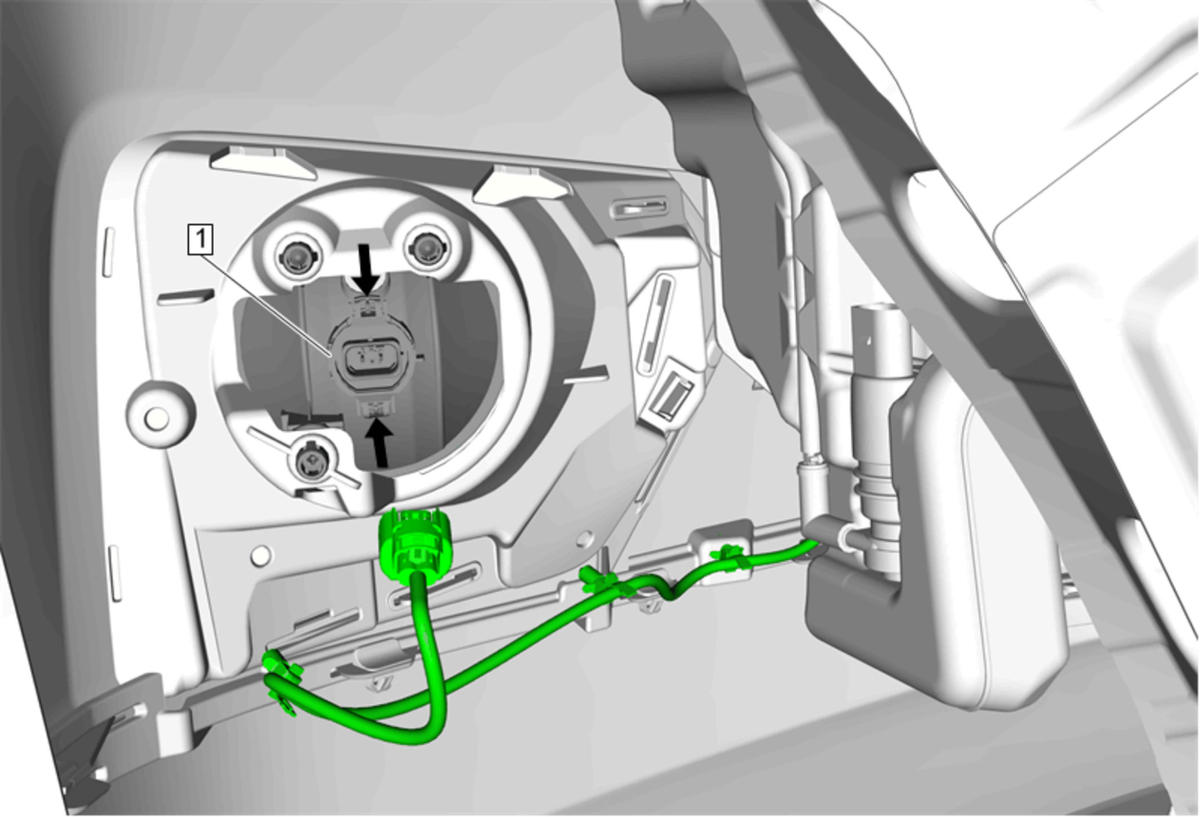

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedure Reposition the forward half of front wheelhouse liner away to gain access to the component. Front Wheelhouse Liner Replacement
1	Front Fog Lamp Bulb Procedure Disconnect the electrical connector. Squeeze the tabs and pull rearward to release the lamp socket and bulb from the housing. Pull the bulb straight from the lamp socket

Callout

Component Name

WARNING:

Refer to Halogen Bulb Warning .

Preliminary Procedure Reposition the forward half of front wheelhouse liner away to gain access to the component. Front Wheelhouse Liner Replacement

Front Fog Lamp Bulb

Procedure

Disconnect the electrical connector.
Squeeze the tabs and pull rearward to release the lamp socket and bulb from the housing.
Pull the bulb straight from the lamp socket
