Driver Seat Adjuster Memory Module Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

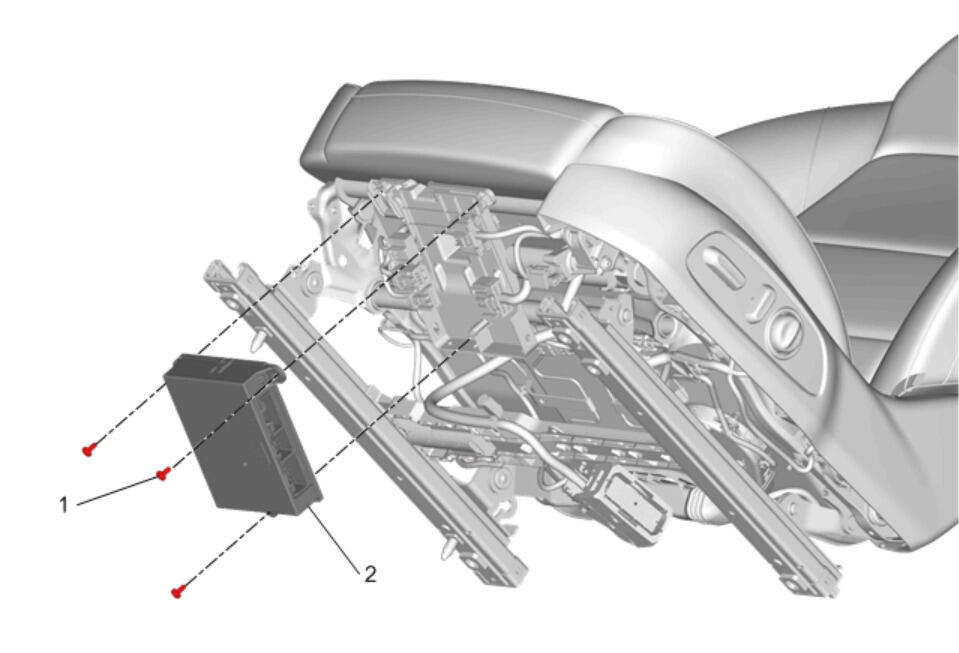

Callout	Component Name
Preliminary Procedure Front Seat Removal and Installation
1	Driver Seat Adjuster Memory Module Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Driver Seat Adjuster Memory Module Procedure Disconnect all electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Front Seat Removal and Installation

Driver Seat Adjuster Memory Module Fastener [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Driver Seat Adjuster Memory Module

Procedure

Disconnect all electrical connectors.
Perform the necessary programming and setup procedure:Control Module References
