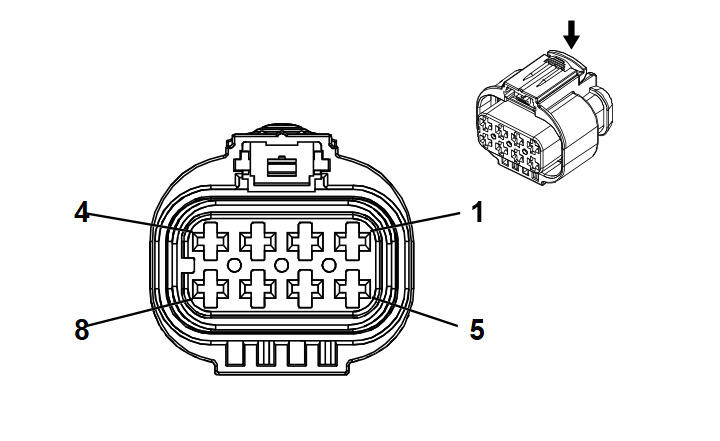

A7 Fuel Pump and Level Sensor Assembly (FWD)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Fuel Tank Harness
- OEM Connector: 2-2109441-5
- Service Connector: Service by Harness -
- Description: 8 -Way F 2.8 Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| II |
Not required |
J-35616-4A (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
GY / |
120 |
Fuel Pump Control |
I |
- |
| 2 |
2.5 |
YE / GY |
4137 |
Fuel Pump Supply Voltage Phase 2 |
I |
- |
| 3 |
2.5 |
WH / BN |
4138 |
Fuel Pump Supply Voltage Phase 3 |
I |
- |
| 4 |
0.5 |
BU / |
7443 |
Fuel Pump Assembly Shield Ground |
II |
- |
| 5 |
0.5 |
BU / VT |
1589 |
Primary Fuel Level Sensor Signal |
II |
- |
| 6 |
0.5 |
BK / GN |
6281 |
Fuel Level Sensor Low Reference |
II |
- |
| 7 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
