Front Compartment Fuse Block Cover Replacement

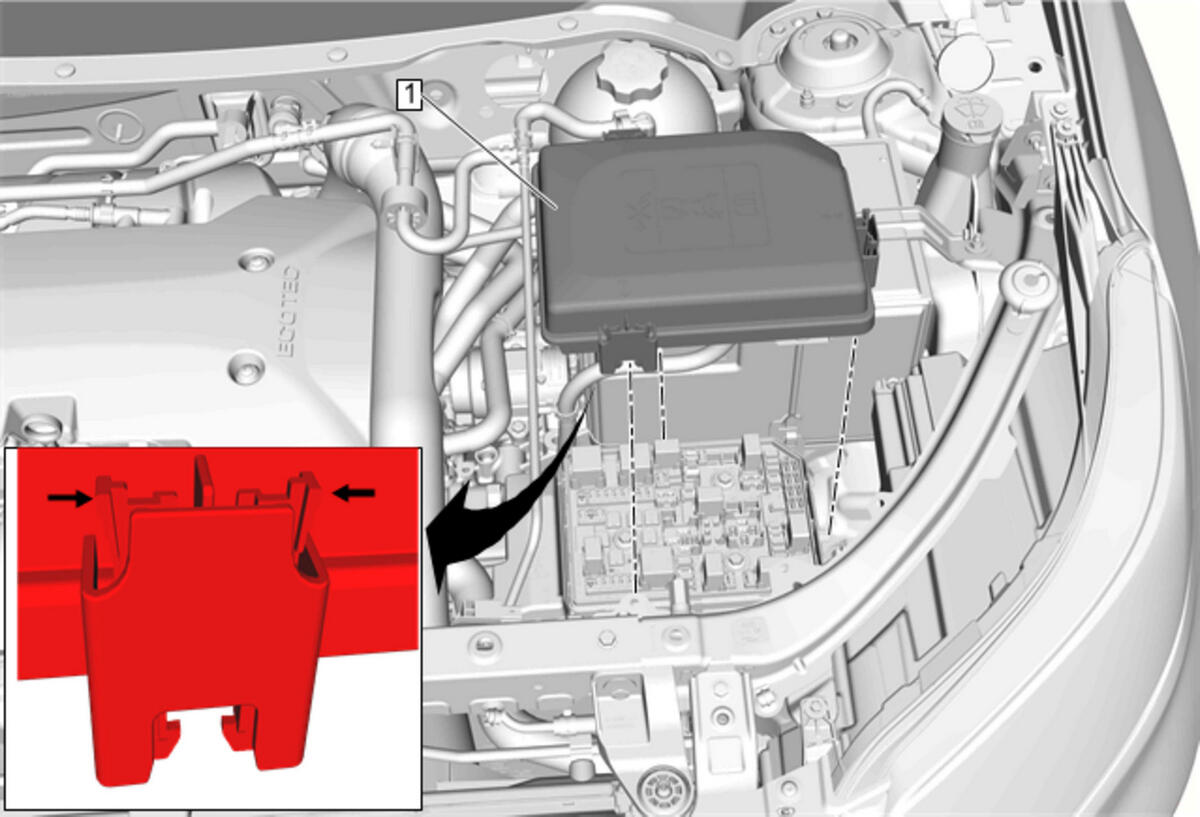

GM4580038

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Compartment Fuse Block Cover Procedure Squeeze the 3 tabs to release cover.
