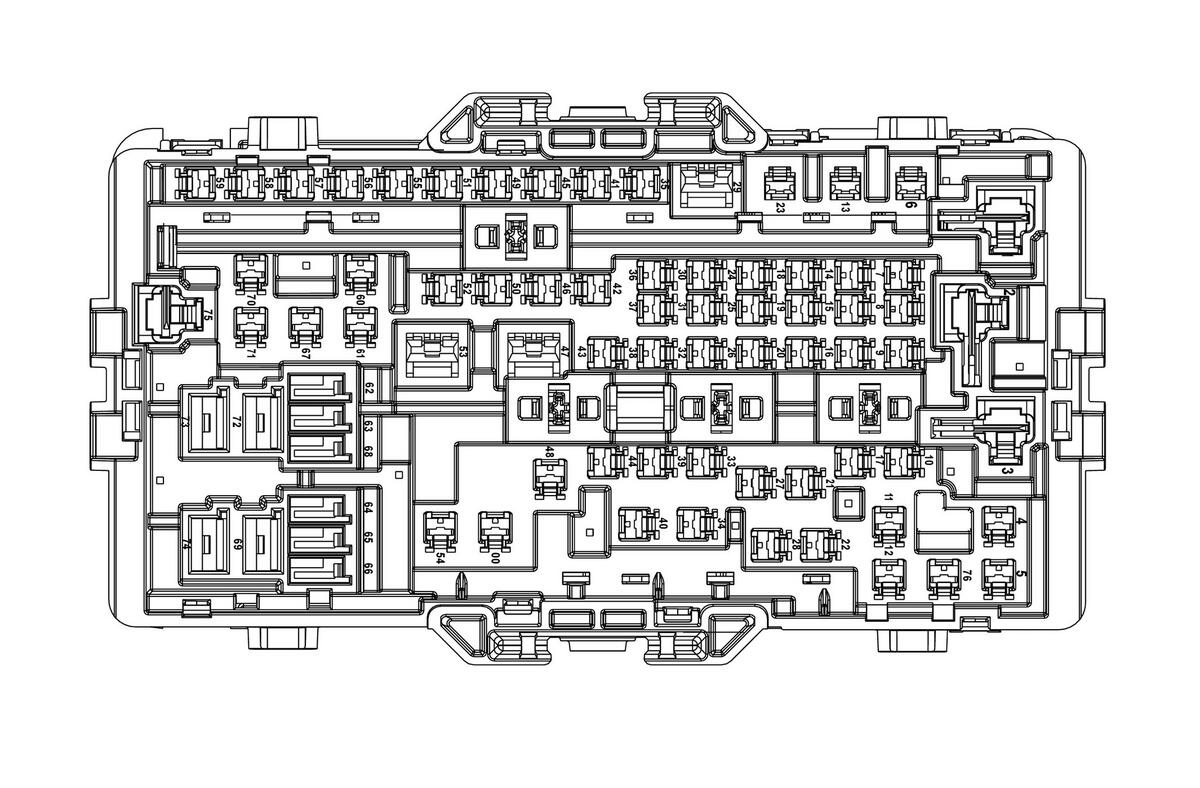

X51A Fuse Block - Instrument Panel
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel Harness
- OEM Connector: 35048788
- Service Connector: Service by Component Assembly -
- Description: Wire Entry Fuse Block
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| II |
Not required |
J-35616-42 (RD) |
No Tool Required |
| III |
Not required |
J-35616-43 (RD) |
No Tool Required |
| IV |
Not required |
J-35616-4A (PU) |
No Tool Required |
| V |
Not required |
J-35616-5 (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
10 |
RD / BU |
42 |
Battery Positive Voltage |
II |
- |
| 2 |
10 |
RD / GY |
142 |
Battery Positive Voltage |
II |
- |
| 6 |
1.5 |
RD / WH |
2040 |
Battery Positive Voltage |
V |
KI6/KI7 |
| 13 |
2.5 |
RD / BN |
3640 |
Battery Positive Voltage |
V |
|
| 16 |
1 |
RD / BU |
4540 |
Battery Positive Voltage |
IV |
- |
| 17 |
0.35 |
RD / YE |
2340 |
Battery Positive Voltage |
IV |
Z88+KA1 |
| 21 |
0.35 |
RD / BU |
2540 |
Battery Positive Voltage |
IV |
EPH |
| 22 |
0.35 |
VT |
4601 |
Retained Accessory Power Control |
IV |
- |
| 23 |
2.5 |
RD / GN |
4042 |
Battery Positive Voltage |
V |
V92 |
| 27 |
1 |
RD / BN |
4940 |
Battery Positive Voltage |
IV |
- |
| 28 |
1.5 |
VT |
1301 |
Retained Accessory Power Control |
IV |
U37 /KC5 |
| 29 |
4 |
RD / BU |
840 |
Battery Positive Voltage |
III |
- |
| 30 |
0.35 |
RD / BN |
440 |
Battery Positive Voltage |
IV |
EPH |
| 31 |
2.5 |
RD / GN |
2173 |
12V Regulated Supply Voltage 2 |
IV |
EPH |
| 32 |
0.35 |
RD / BN |
2240 |
Battery Positive Voltage |
IV |
AY0 |
| 33 |
0.35 |
RD / GN |
742 |
Battery Positive Voltage |
IV |
- |
| 35 |
- |
RD / YE |
4340 |
Battery Positive Voltage |
I |
- |
| 36 |
1.5 |
RD / GN |
2173 |
12V Regulated Supply Voltage 2 |
IV |
KL9 |
| 37 |
2.5 |
RD / GN |
2173 |
12V Regulated Supply Voltage 2 |
IV |
KL9 |
| 38 |
0.35 |
RD / GN |
2440 |
Battery Positive Voltage |
IV |
AL0 |
| 39 |
0.35 |
RD / WH |
4042 |
Battery Positive Voltage |
IV |
- |
| 40 |
- |
VT / |
1701 |
Retained Accessory Power Control |
I |
- |
| 41 |
0.35 |
RD / GN |
3140 |
Battery Positive Voltage |
IV |
- |
| 42 |
0.5 |
RD / GY |
1740 |
Battery Positive Voltage |
IV |
KA1 /KU1 /KU3 |
| 44 |
0.5 |
RD / BU |
5240 |
Battery Positive Voltage |
IV |
TB4 |
| 46 |
0.5 |
RD / VT |
2640 |
Battery Positive Voltage |
IV |
- |
| 47 |
2 |
RD / BN |
2940 |
Battery Positive Voltage |
III |
((AG1/A45/A74))/((UEU/UHX)-EPH)/(EPH+UKC) |
| 48 |
0.35 |
GY / GN |
4083 |
Retained Accessory Power Relay 2 Coil Control |
IV |
- |
| 49 |
1 |
RD / GN |
4440 |
Battery Positive Voltage |
IV |
- |
| 50 |
1 |
RD / BN |
4240 |
Battery Positive Voltage |
IV |
- |
| 51 |
2.5 |
RD / VT |
5340 |
Battery Positive Voltage |
IV |
- |
| 52 |
0.35 |
RD / BN |
1440 |
Battery Positive Voltage |
IV |
- |
| 53 |
2.5 |
RD / YE |
3740 |
Battery Positive Voltage |
III |
(MAH/MBC/MCX/EPH/MBI) |
| 54 |
2 |
BK |
1650 |
Ground |
IV |
- |
| 55 |
0.35 |
RD / GY |
2140 |
Battery Positive Voltage |
IV |
UE1 |
| 56 |
0.35 |
RD / BN |
2240 |
Battery Positive Voltage |
IV |
- |
| 57 |
0.35 |
RD / GN |
2440 |
Battery Positive Voltage |
IV |
UEU /UHX /TC2 /TB4 /TB5 |
| 58 |
0.35 |
RD / BU |
2540 |
Battery Positive Voltage |
IV |
- |
| 59 |
0.75 |
RD / YE |
5040 |
Battery Positive Voltage |
IV |
- |
| 60 |
0.35 |
BK |
1650 |
Ground |
IV |
TB4 |
| 61 |
0.5 |
RD / BU |
5240 |
Battery Positive Voltage |
IV |
TB4 |
| 65 |
- |
BK / |
1650 |
Ground |
I |
- |
| 70 |
0.35 |
BU / WH |
6128 |
Rear Closure Unlatch Actuator Unlatch Control |
IV |
TB4 |
| 71 |
0.35 |
GY / YE |
6188 |
Liftgate Window/Rear Compartment Lid Motor Unlatch Control |
IV |
TB4 |
| 75 |
4 |
GY / BN |
3761 |
Infotainment Regulated Control |
II |
KL9 |
