Sunroof Window Replacement

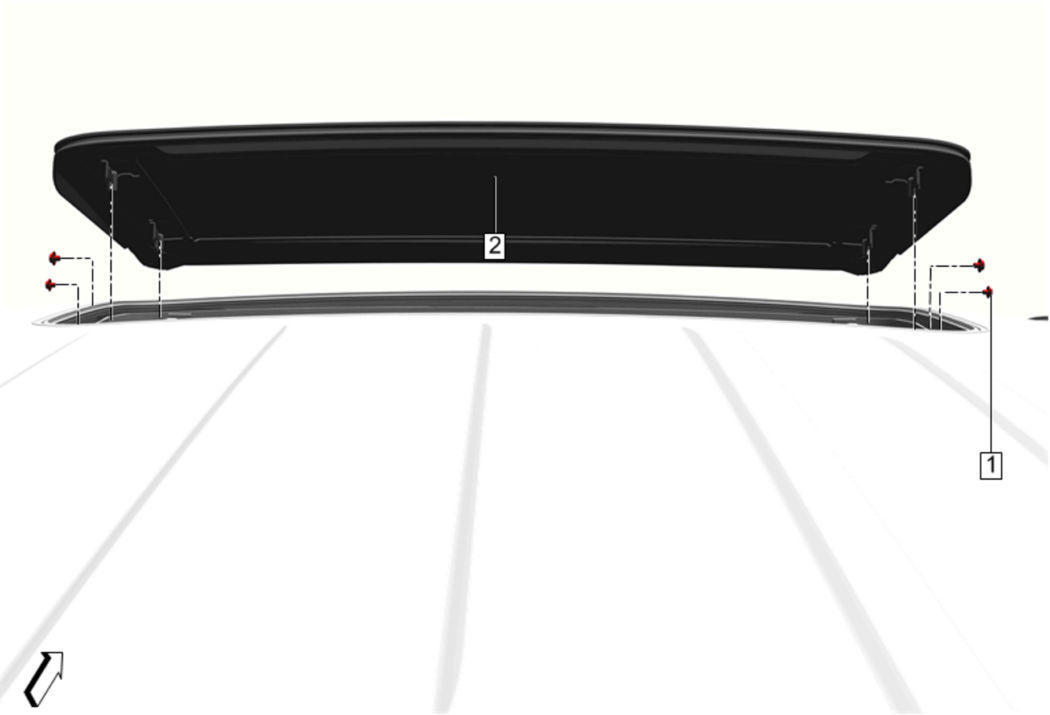

GM4672663

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Open the sunshade.
Position the front sunroof window in the vent position.

1

Sunroof Window Screw [ 4x ]

CAUTION:

Refer to Fastener Caution .

Tighten
4 N.m (35 lb/in)

2

Sunroof Window

Procedure

Align the side sunroof window brackets to the left and right side of the housing frame.
Close the sunroof and adjust sunroof window if needed.
Sunroof Window Height and Opening Fit Adjustment
Inspect sunroof for proper operation and water test to ensure no leaks.
