Sunroof Switch Replacement
Courtesy of GENERAL MOTORS COMPANY

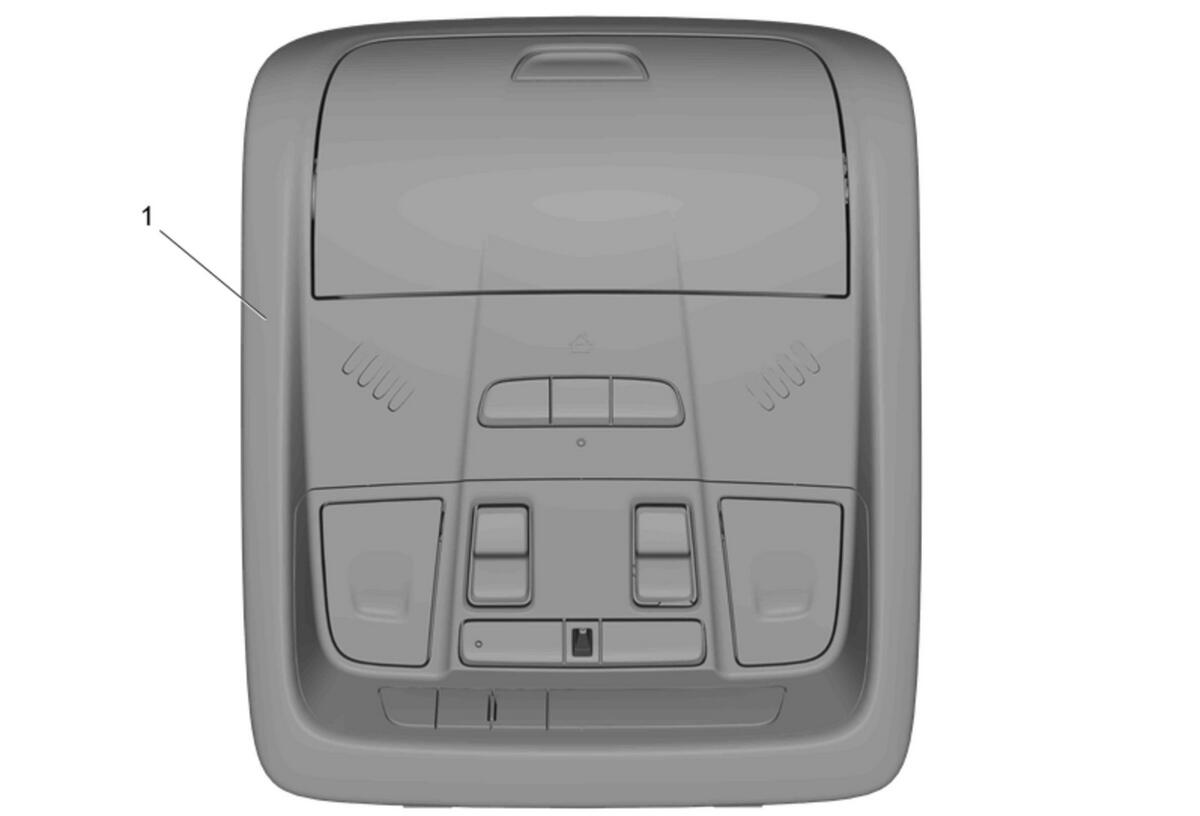

Callout
Component Name
Preliminary Procedure
Roof Console Replacement
1
Sunroof Switch
Procedure
Disconnect all electrical connectors.
Transfer components as necessary.
NOTE:
The sunroof switch is serviced as part of the roof console assembly.
