Front View Driver Information Camera Bracket Replacement

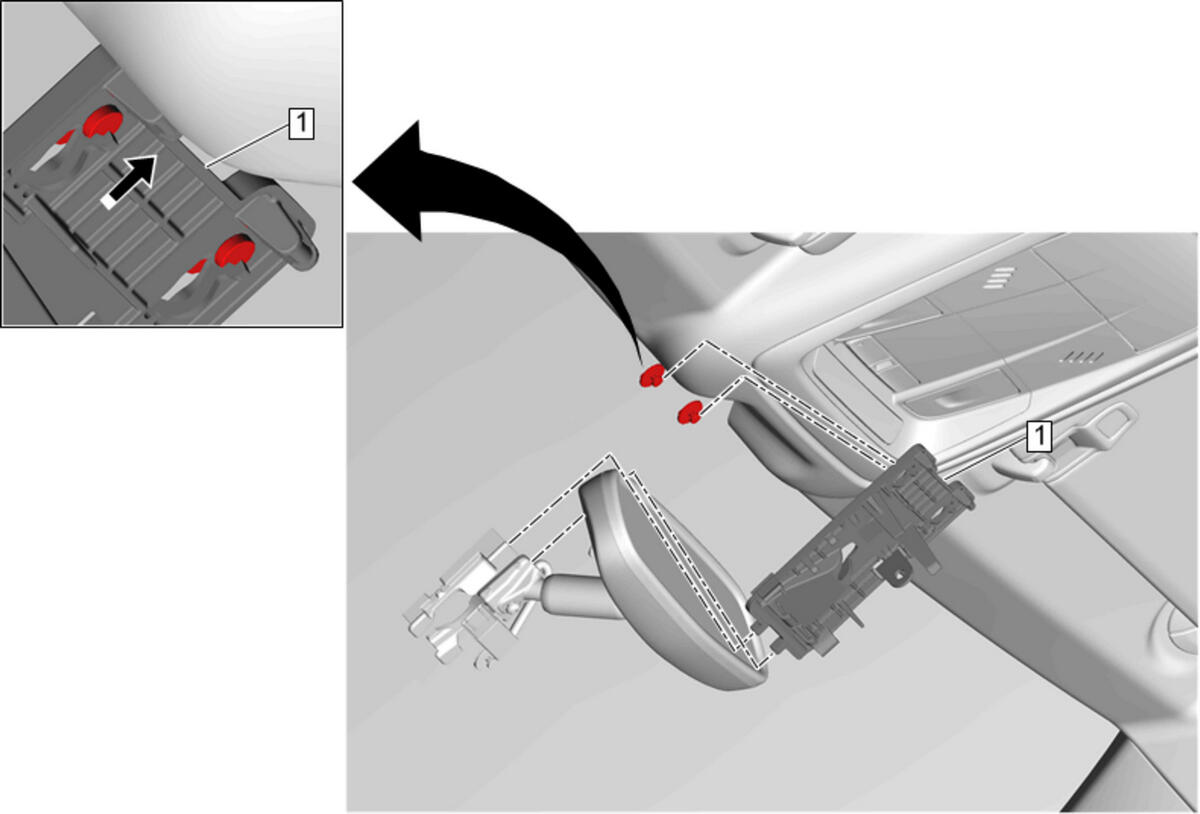

GM4590408

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front View Camera Replacement

1

Front View Driver Information Camera Bracket

Procedure

Release inside air moisture and windshield temperature sensor harness retainer from camera bracket.
Release the retaining tabs and slide the bracket upward to disengage pins, gently pull from windshield.
Ensure the inside of the windshield is clean before reinstalling the bracket.

NOTE:

Do Not remove or service the sensor farm pins.
