Turn Signal Switch Bracket Replacement (Terrain)

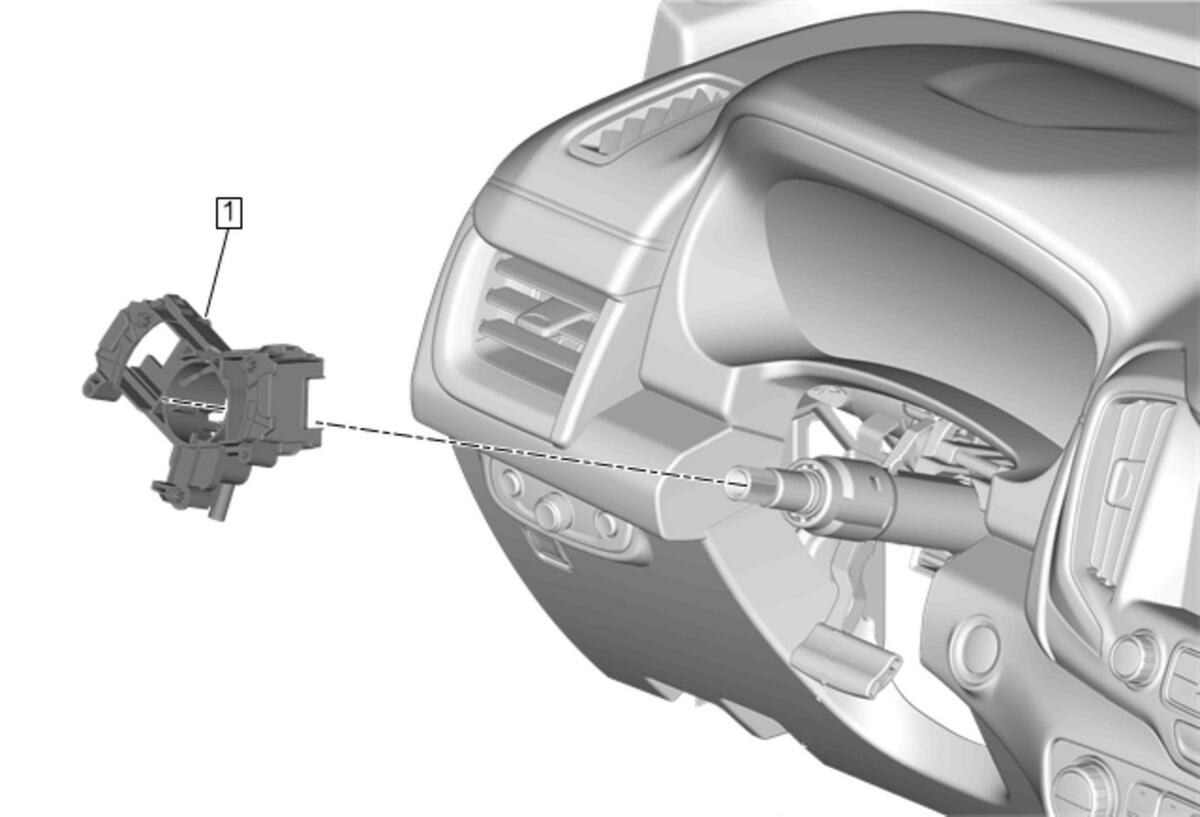

GM4711459Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Airbag Coil Replacement (Terrain)
  2. Turn Signal Switch Replacement (Terrain)
  3. Windshield Wiper and Windshield Washer Switch Replacement (Terrain)
1 Turn Signal Switch Bracket

Procedure

  1. Release the retaining tabs and remove the turn signal switch bracket from the steering column.
  2. Remove the wire harness retainer from the turn signal switch bracket.
