K32 Steering Wheel Heating Control Module X1 (UVD)
 Courtesy of GENERAL MOTORS COMPANY
|

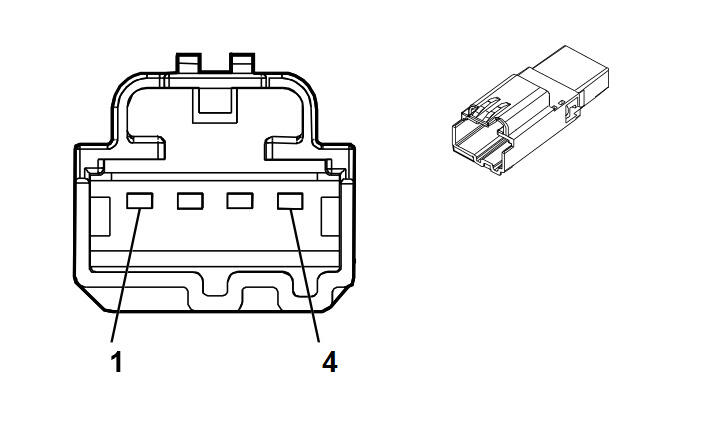

Connector Part Information
- Harness Type: Steering Wheel Harness
- OEM Connector: 31068-1040
- Service Connector: Service by Harness -
- Description: 4 -Way M 0.64 H-DAC Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU / RD |
5883 |
Steering Wheel Heating Switch Signal |
I |
- |
| 2 |
0.35 |
GN / RD |
5884 |
Steering Wheel Heating Switch LED Control |
I |
- |
| 3 |
0.5 |
OG |
739 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 4 |
0.5 |
BK |
1650 |
Ground |
I |
- |
