Headliner (except C3U)

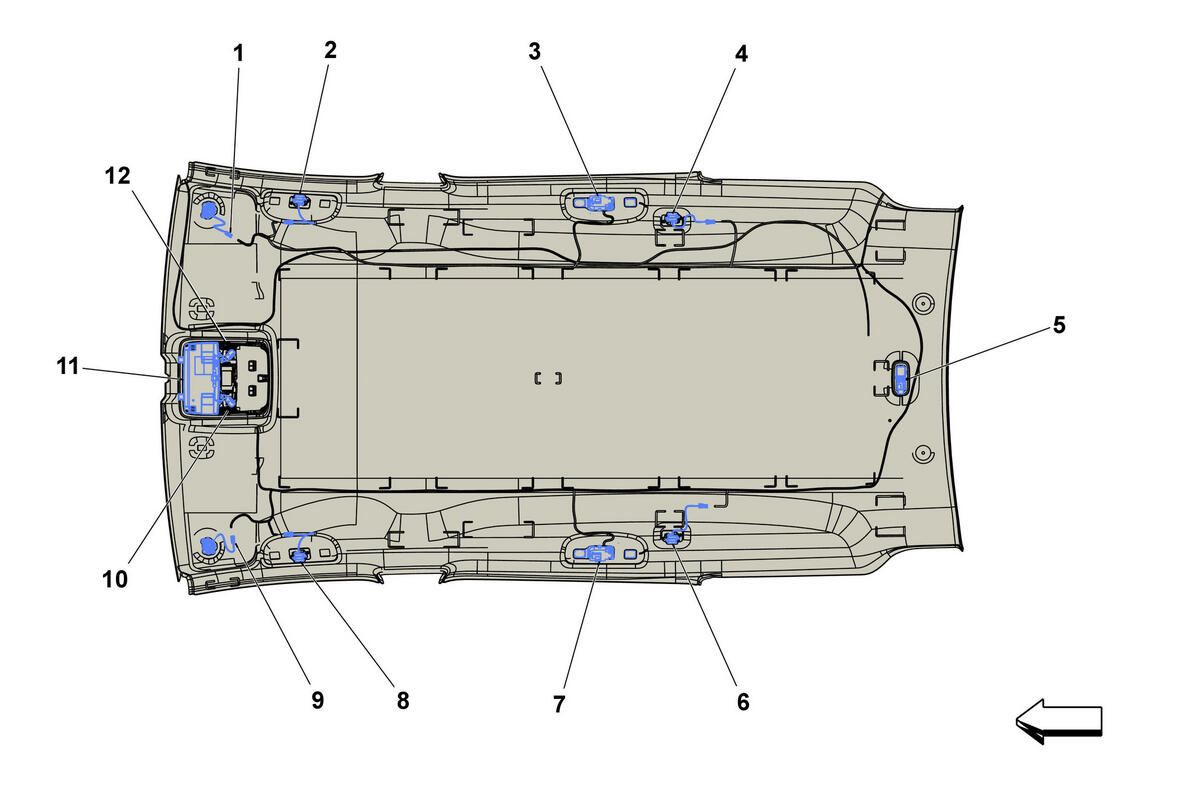

GM4585930Courtesy of GENERAL MOTORS COMPANY
Headliner (except C3U)

Items
1. A3R Sunshade - Right
A3R Sunshade - Right .
2. B77RF Radio Volume Compensator Interior Noise Microphone - Right Front (NKC)
B77RF Radio Volume Compensator Interior Noise Microphone - Right Front (NKC) .
3. E37RR Dome/Reading Lamps - Right Rear
E37RR Dome/Reading Lamps - Right Rear .
4. B77RR Radio Volume Compensator Interior Noise Microphone - Right Rear (NKC)
B77RR Radio Volume Compensator Interior Noise Microphone - Right Rear (NKC) .
5. E8S Rear Compartment Courtesy Lamp
E8S Rear Compartment Courtesy Lamp .
6. B77LR Radio Volume Compensator Interior Noise Microphone - Left Rear (NKC)
B77LR Radio Volume Compensator Interior Noise Microphone - Left Rear (NKC) .
7. E37LR Dome/Reading Lamps - Left Rear
E37LR Dome/Reading Lamps - Left Rear .
8. B77LF Radio Volume Compensator Interior Noise Microphone - Left Front (NKC)
B77LF Radio Volume Compensator Interior Noise Microphone - Left Front (NKC) .
9. A3L Sunshade - Left
A3L Sunshade - Left .
10. B24LF Mobile Telephone Microphone - Left Front
B24LF Mobile Telephone Microphone - Left Front .
11. A98 Front Overhead Console Assembly
A98 Front Overhead Console Assembly .
12. B24RF Mobile Telephone Microphone - Right Front (IOS/IOT/IOU)
B24RF Mobile Telephone Microphone - Right Front (IOS/IOT/IOU) .
