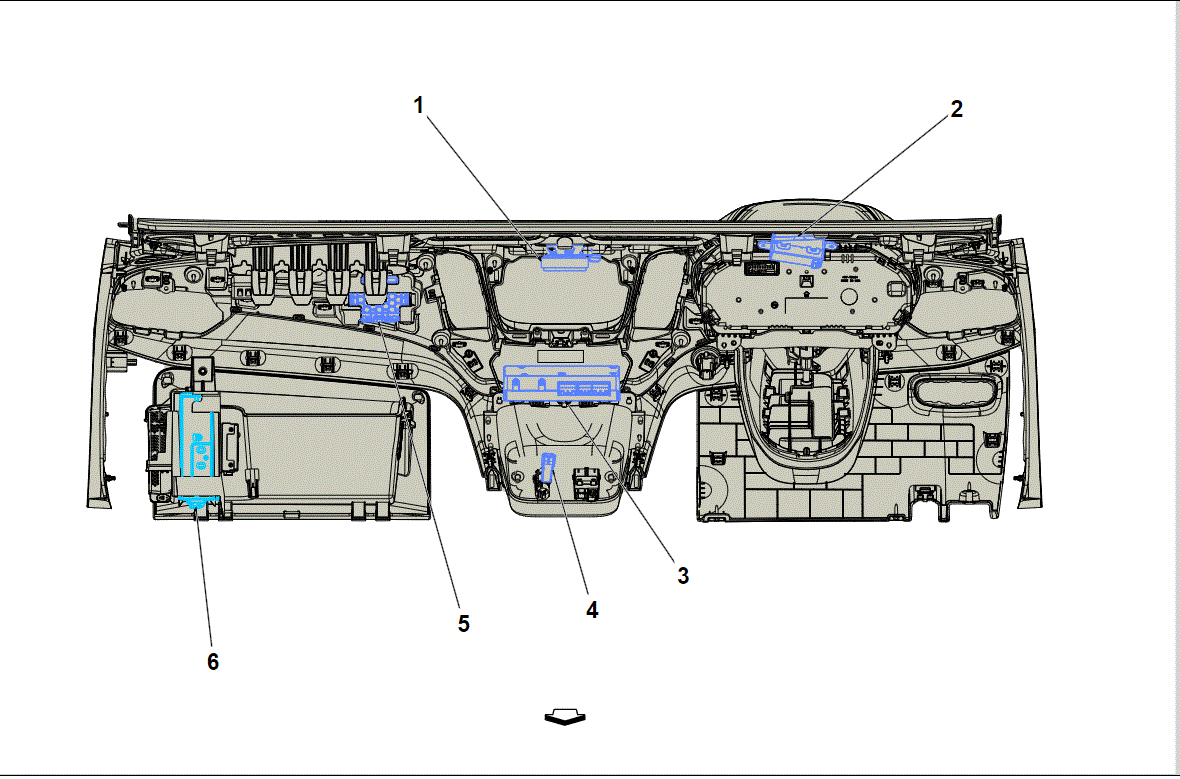

Behind the Instrument Panel (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Items
1. P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA) .
2. P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators .
3. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1) , or K73 Telematics Communication Interface Control Module X5 (UE1) , or K73 Telematics Communication Interface Control Module X7 (UE1) .
4. R6F Terminating Resistor - High Speed Extension Bus 2
5. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 .
6. A11 Radio A11 Radio X1 (IOR) , or A11 Radio X1 (IOS/IOT/IOU) , or A11 Radio X2 (IOR) , or A11 Radio X2 (IOS/IOT/IOU) , or A11 Radio X3 (IOR) , or A11 Radio X3 (IOR+UE1) , or A11 Radio X3 (IOS/IOT/IOU) , or A11 Radio X4 ((IOS/IOT/IOU)+(MCR+MCZ)) , or A11 Radio X4 (IOR) , or A11 Radio X5 ((IOS/IOT/IOU)+(UV2/UVB)) , or A11 Radio X5 (IOS/IOT/IOU) , or A11 Radio X6 (IOS/IOT/IOU) , or A11 Radio X7 , or A11 Radio X8 ((IOS/IOT/IOU)-UE1) , or A11 Radio X9 (U2K) .
