Windshield Washer Solvent Container Level Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

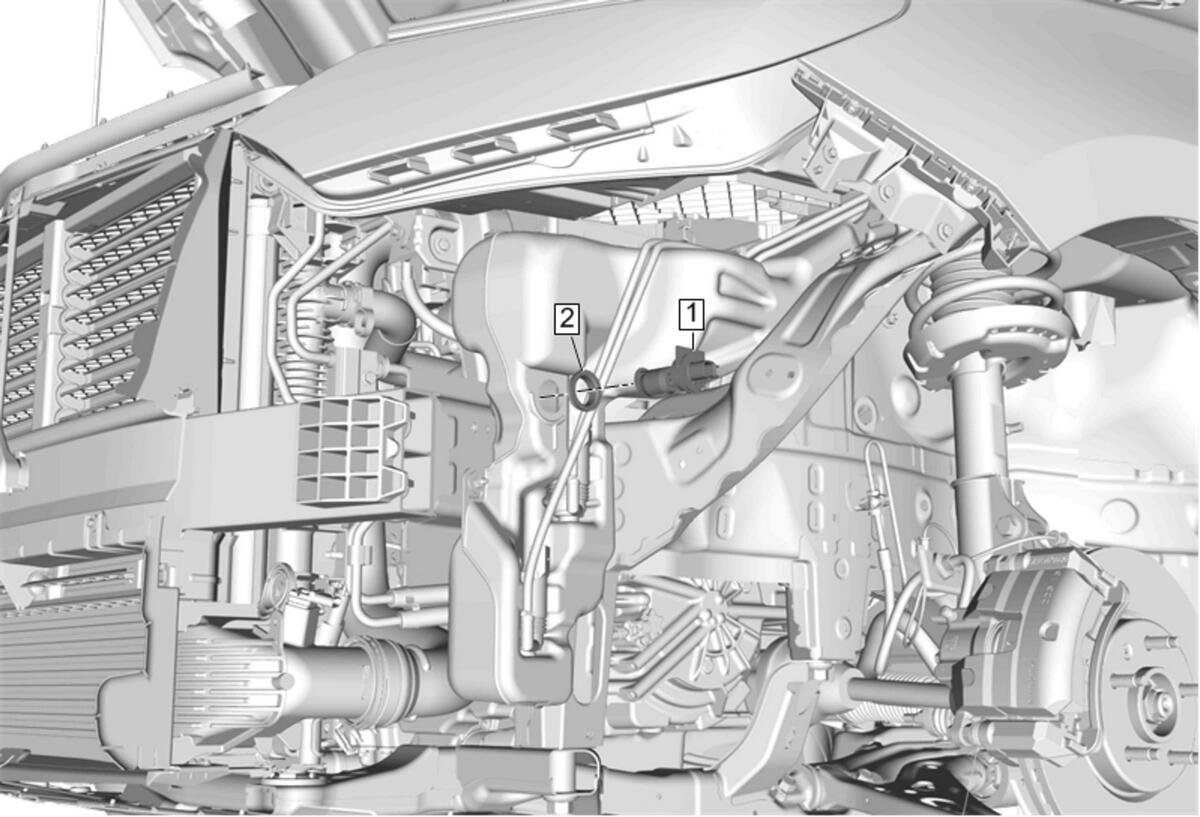

Callout	Component Name
Preliminary Procedures Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain) Place a clean suitable drain pan under the windshield washer solvent container.
1	Windshield Washer Solvent Container Level Sensor Procedure Disconnect the electrical connector. Using two flat-bladed tools placed under each side of the level sensor, disengage the level sensor from the washer container.
2	Windshield Washer Solvent Container Level Sensor Grommet Procedure Using two flat-bladed tools under the washer pump grommet, pry upward in order to remove the grommet from the washer container. NOTE: Install a new grommet. DO NOT reuse the old grommet.

Callout

Component Name

Preliminary Procedures

Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain)
Place a clean suitable drain pan under the windshield washer solvent container.

Windshield Washer Solvent Container Level Sensor

Procedure

Disconnect the electrical connector.
Using two flat-bladed tools placed under each side of the level sensor, disengage the level sensor from the washer container.

Windshield Washer Solvent Container Level Sensor Grommet
Procedure
Using two flat-bladed tools under the washer pump grommet, pry upward in order to remove the grommet from the washer container.

NOTE:

Install a new grommet. DO NOT reuse the old grommet.
