Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

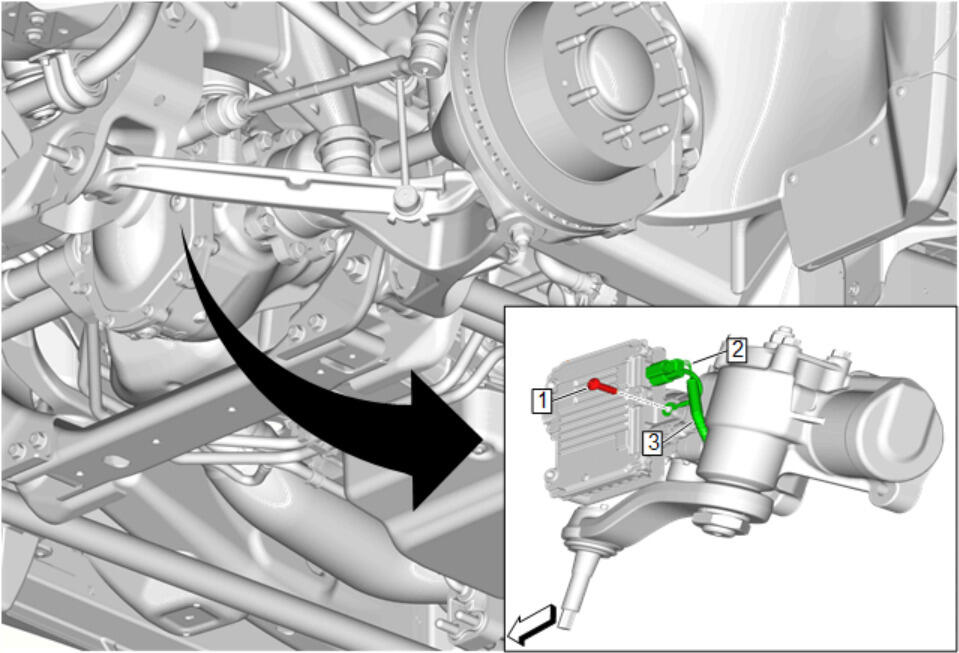

Install the power steering control module wiring harness (3).
Connect the electrical connector (2).
Install and tighten the electronic power steering motor control module bracket bolt (1). Electronic Power Steering Motor Control Module Replacement
Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement

Courtesy of GENERAL MOTORS COMPANY

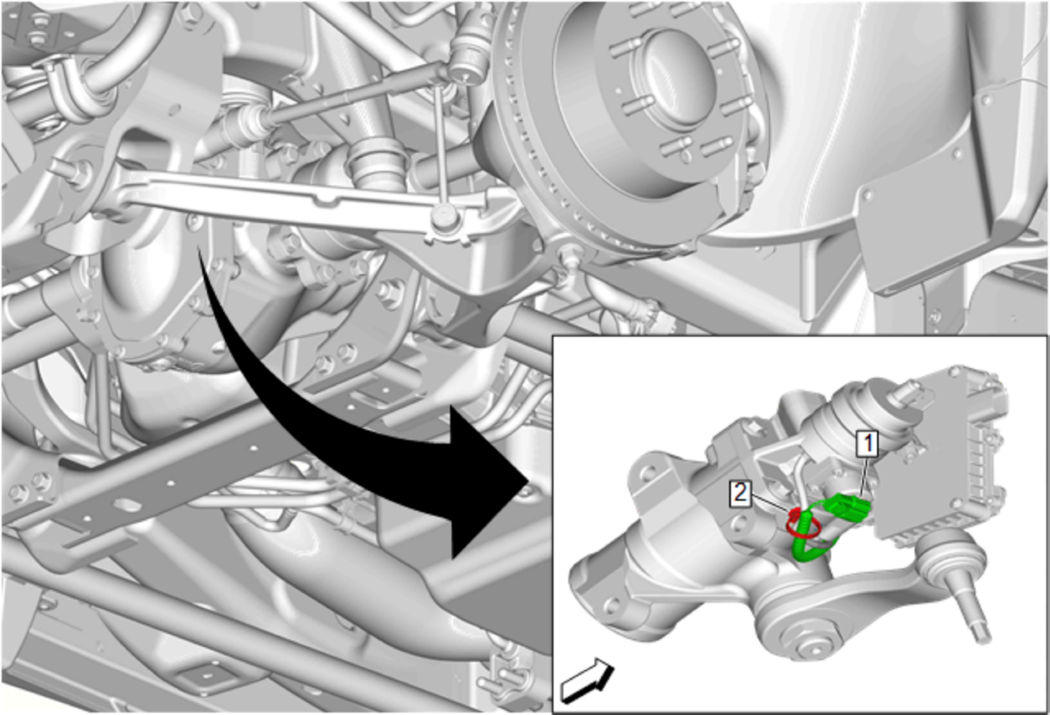

Connect the electrical connector (1).
Install the NEW wiring harness retainer (2) and secure the wiring harnesses.
Underbody Skid Shield - Install - Underbody Skid Shield Replacement
