Home >> GMC >> 2021 >> Savana 2500 LS, 2.8L Eng VIN 1 >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Communications Enable

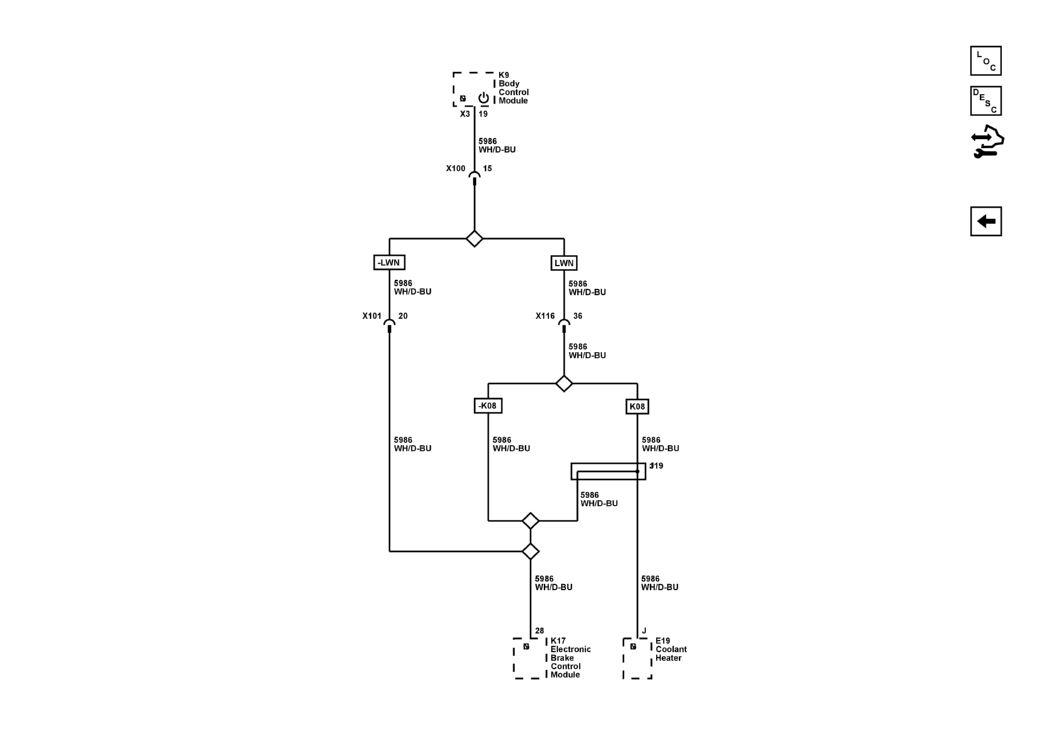

Communications Enable

GM5483170Courtesy of GENERAL MOTORS COMPANY
