Home >> GMC >> 2021 >> Canyon AT4, 2.8L Eng VIN 1 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> MYB

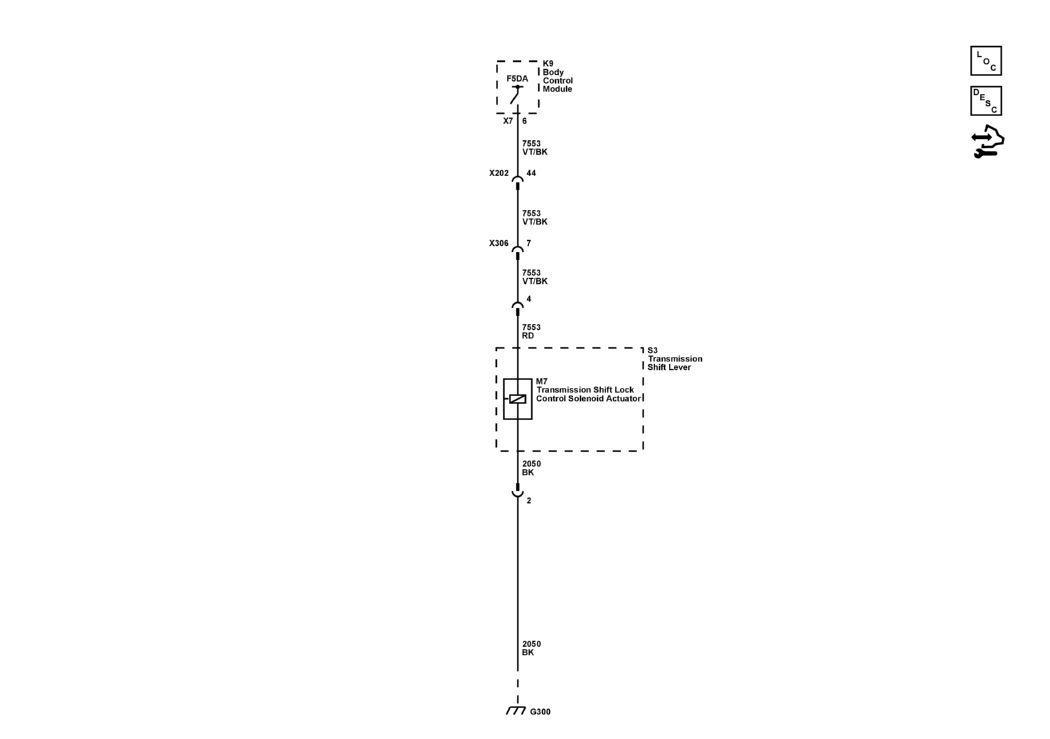

Shift Lock Control Wiring Schematics: MYB

GM5413090

Courtesy of GENERAL MOTORS COMPANY
