Steering Column Tilt Wheel and Telescope Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

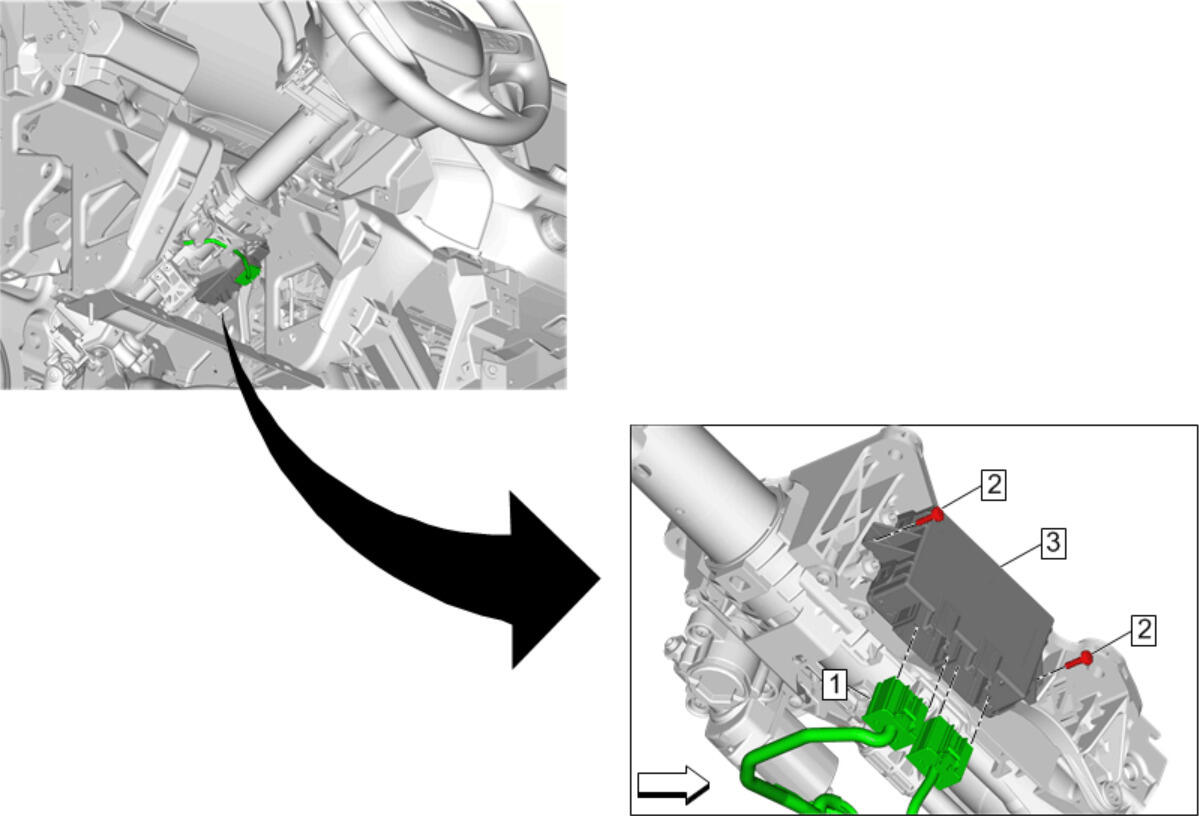

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Instrument Panel Knee Bolster Replacement
1	Steering Column Tilt Wheel and Telescope Control Module Connector [2x] Procedure  Disconnect the electrical connectors.
2	Steering Column Tilt Wheel and Telescope Control Module Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  3 N.m (27 lb in)
3	Steering Column Tilt Wheel and Telescope Control Module Procedure  Program the steering column tilt wheel and telescope control module. Control Module References
