Fuel Pump Power Control Module Replacement (AWD)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

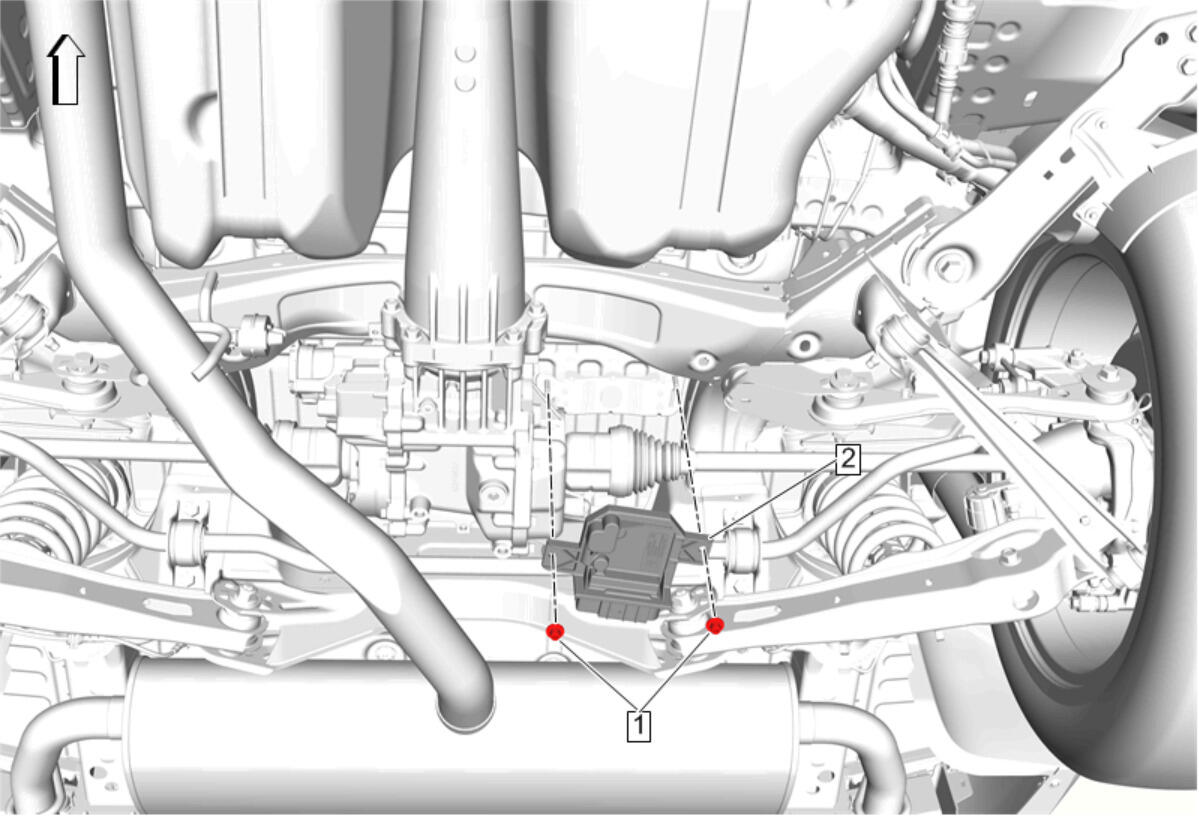

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Fuel Pump Power Control Module Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Control Module References

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle

Fuel Pump Power Control Module Nut [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Module

Procedure
