Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Using an appropriate brake caliper piston spanner tool, slowly rotate the brake caliper piston clockwise while applying inward pressure to the brake caliper piston until the piston is fully seated in the brake caliper housing.

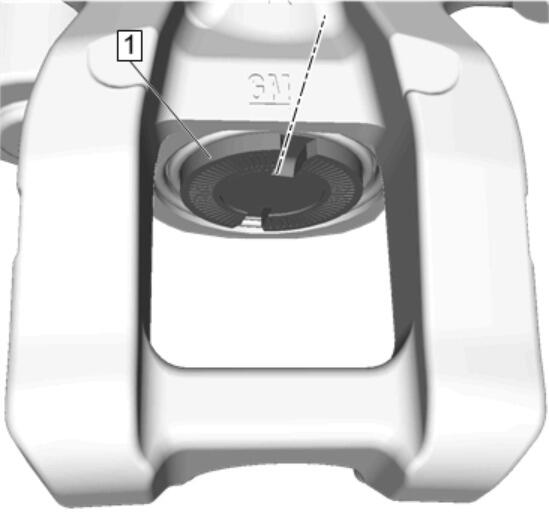

Align the right edge in the upper notch of the left rear brake caliper piston (1) with the left edge of the caliper logo as shown.

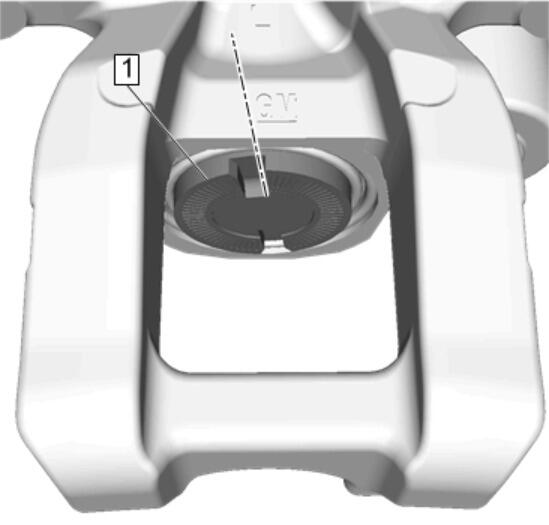

Align the left edge in the upper notch of the right rear brake caliper piston (1) with the right edge of the caliper logo as shown.

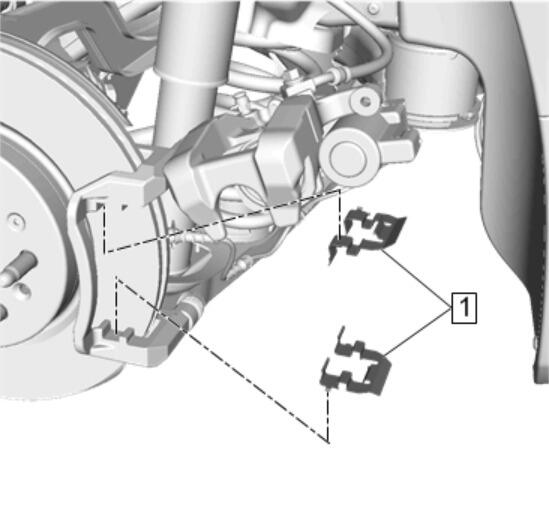

Rear Disc Brake Pad Spring (1) - Install [2x]
- NOTE:
The inner disc brake pad is equipped with a wear sensor on the leading edge of the disc brake pad.

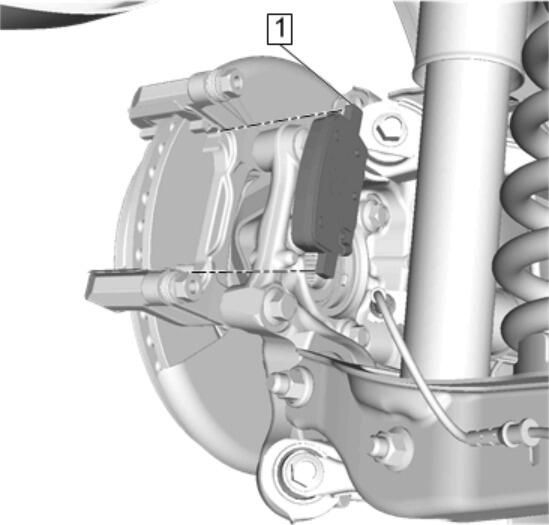

Rear Disc Brake Inner Pad (1) - Install

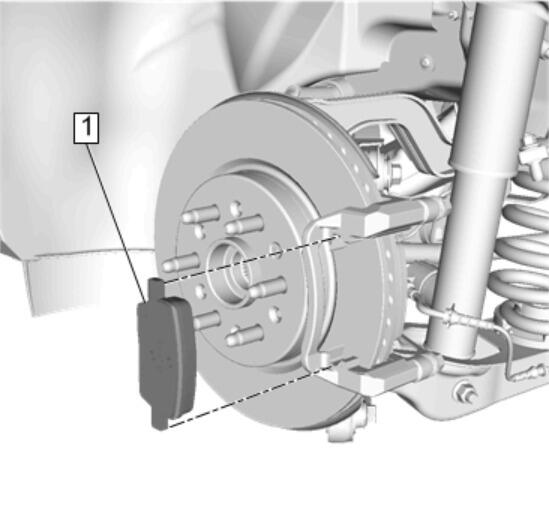

Rear Disc Brake Outer Pad (1) - Install
Install the brake caliper to the brake caliper bracket. (1)
Rear Brake Caliper Guide Pin Bolt (1) - Install [2x] - Rear Brake Caliper Replacement
- Electrical Connector @ Parking Brake Actuator - Connect
- Install the rear tire and wheel assemblies. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Wait 15 seconds, then repeat steps 11 - 12 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
- Calibrate the park brake. Park Brake Calibration
- Burnish the brake pads and rotors. Brake Pad and Rotor Burnishing
