Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Parking Brake Actuator - Install - Parking Brake Actuator Replacement
Align the right edge in the upper notch of the left rear brake caliper piston (1) with the left edge of the caliper logo as shown.
Align the left edge in the upper notch of the right rear brake caliper piston (1) with the right edge of the caliper logo as shown.

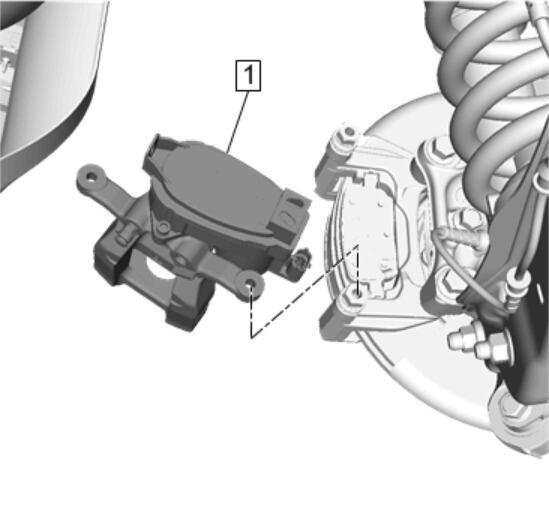

Rear Brake Caliper (1) - Install
- CAUTION:

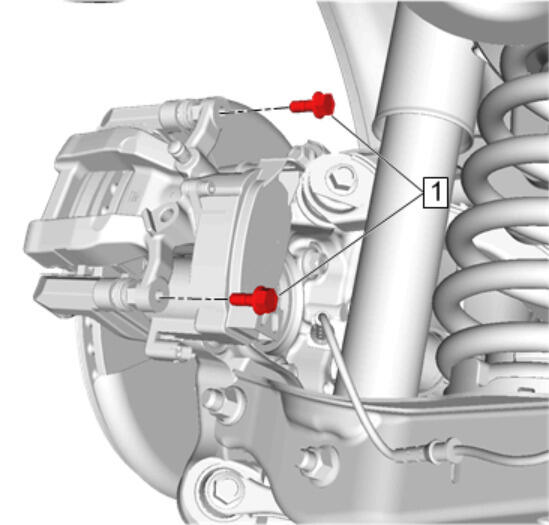

Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] 40 N.m (30 lb ft)

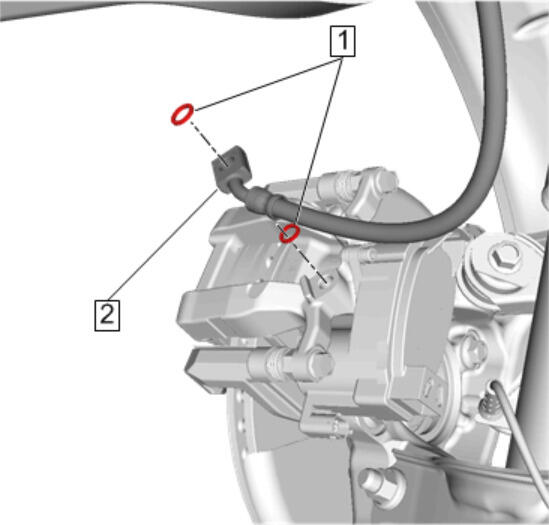

Brake Hose Fitting Gasket (1) @ Brake Hose Fitting (2) - Install NEW [2x]

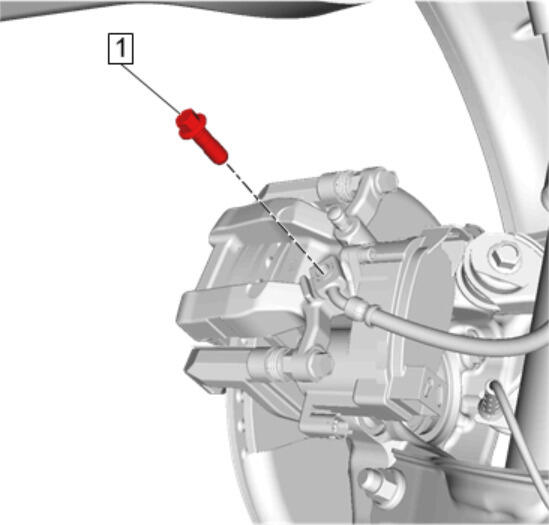

Rear Brake Hose Bolt (1) - Install - Rear Brake Hose Replacement
- Connect the parking brake actuator electrical connector.
- Using an appropriate tie strap, secure the parking brake actuator electrical harness to the harness bracket.
- Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the supports and lower the vehicle.
