Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

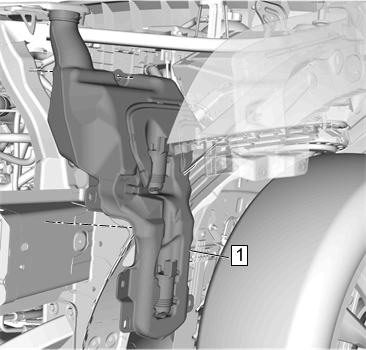

  1. GM4283136Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Solvent Container (1) - Install

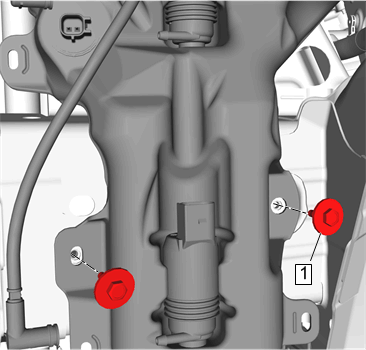

  2. GM4283090Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Windshield Washer Solvent Container Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)

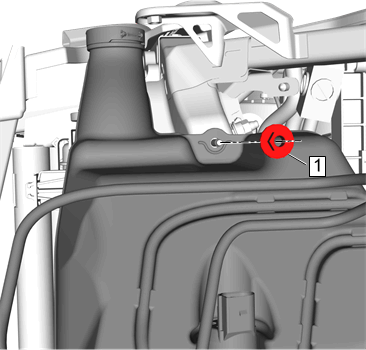

  3. GM4283093Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Solvent Container Nut (1) - Install and tighten 9 N.m (80 lb in)

  4. Wiring Harness Connector Retainer @Windshield Washer Solvent Container - Connect [3x]
  5. Connect all electrical connectors.

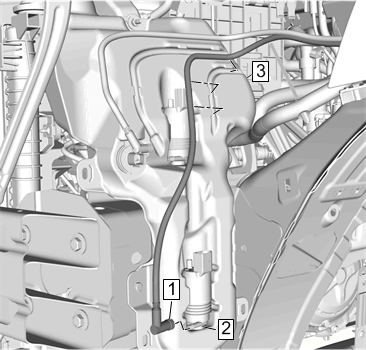

  6. GM4283048Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Pump Hose (1)@Windshield Washer Pump (2) - Install

  7. Windshield Washer Pump Hose (1)@Windshield Washer Solvent Container (3) - Install

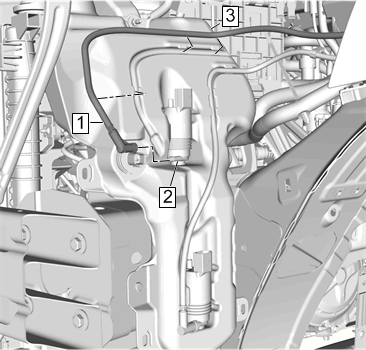

  8. GM4283046Courtesy of GENERAL MOTORS COMPANY

    Rear Window Washer Pump Hose (1)@Rear Window Washer Pump (2) (3) - Install

  9. Rear Window Washer Pump Hose (1)@Windshield Washer Solvent Container (3) - Install

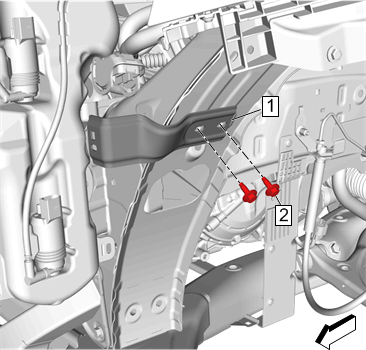

  10. GM4283171Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Rail Bracket (1) - Install

  11. Front Compartment Side Rail Bracket Bolt (2) - Install and tighten [2x] 9 N.m (80 lb in)
  12. Headlamp - Left Side - Install - Front Headlamp Replacement - Left Side
