Side View Driver Information Camera Replacement
WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

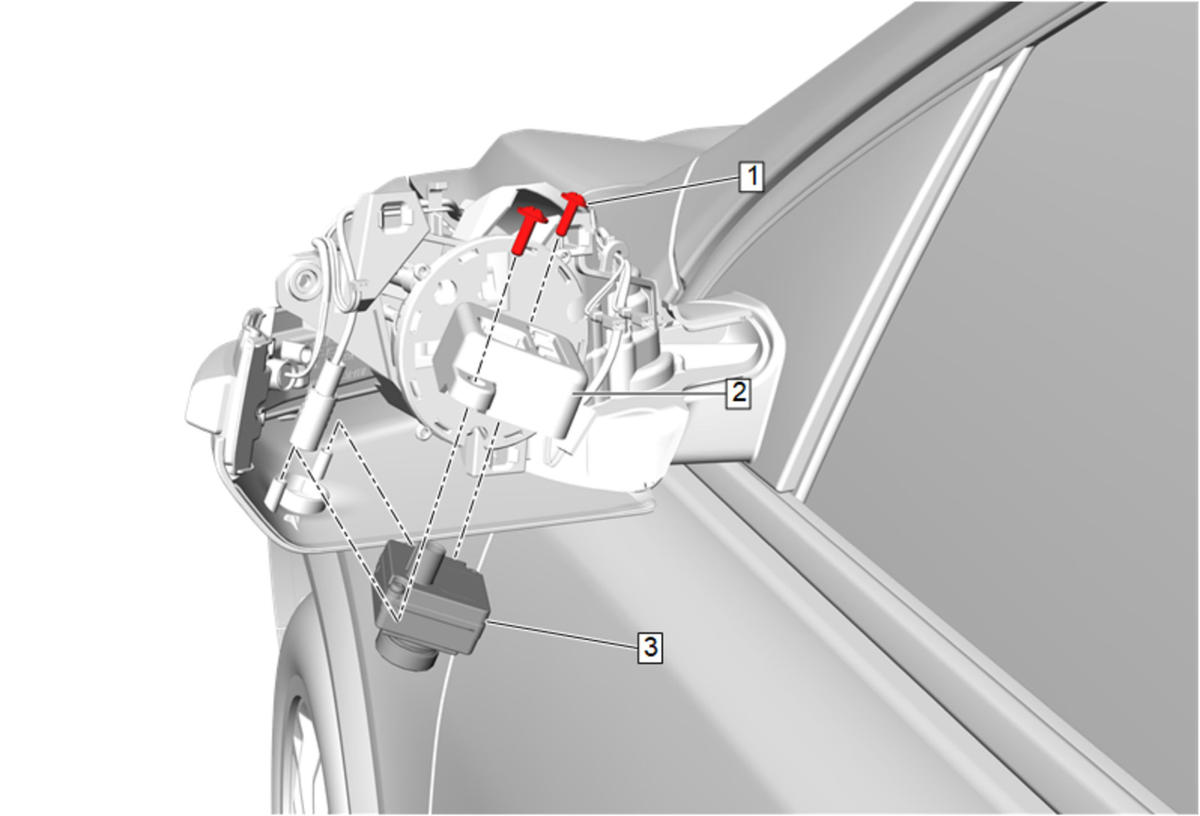

| Callout | Component Name |
|---|---|
| Preliminary Procedure Outside Rearview Mirror Housing Upper Cover Replacement |
|
| 1 | Side View Driver Information Camera Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 0.5 N.m (4 lb in) |
| 2 | Side View Driver Information Camera Bracket |
| 3 | Side View Driver Information Camera Procedure
|
