Turn Bulb Replacement

WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

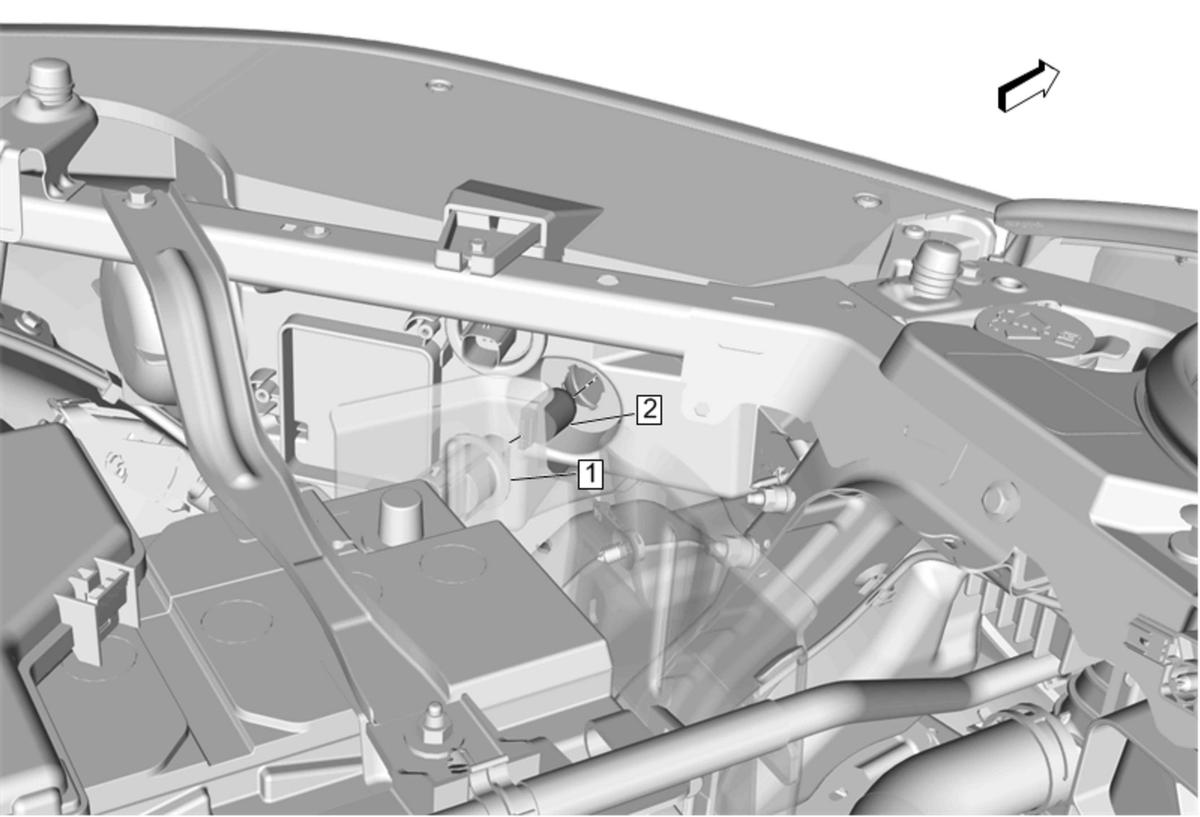

Callout	Component Name
1	Turn Bulb Socket Procedure Rotate the bulb socket a quarter turn counterclockwise and remove.
2	Turn Bulb Procedure Disconnect the electrical connector. Pull the bulb straight from the lamp socket.

Callout

Component Name

Turn Bulb Socket
Procedure
Rotate the bulb socket a quarter turn counterclockwise and remove.

Turn Bulb

Procedure

Disconnect the electrical connector.
Pull the bulb straight from the lamp socket.
