Backup Bulb Replacement
WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Closure Auxiliary Signal Lamp Replacement |
|

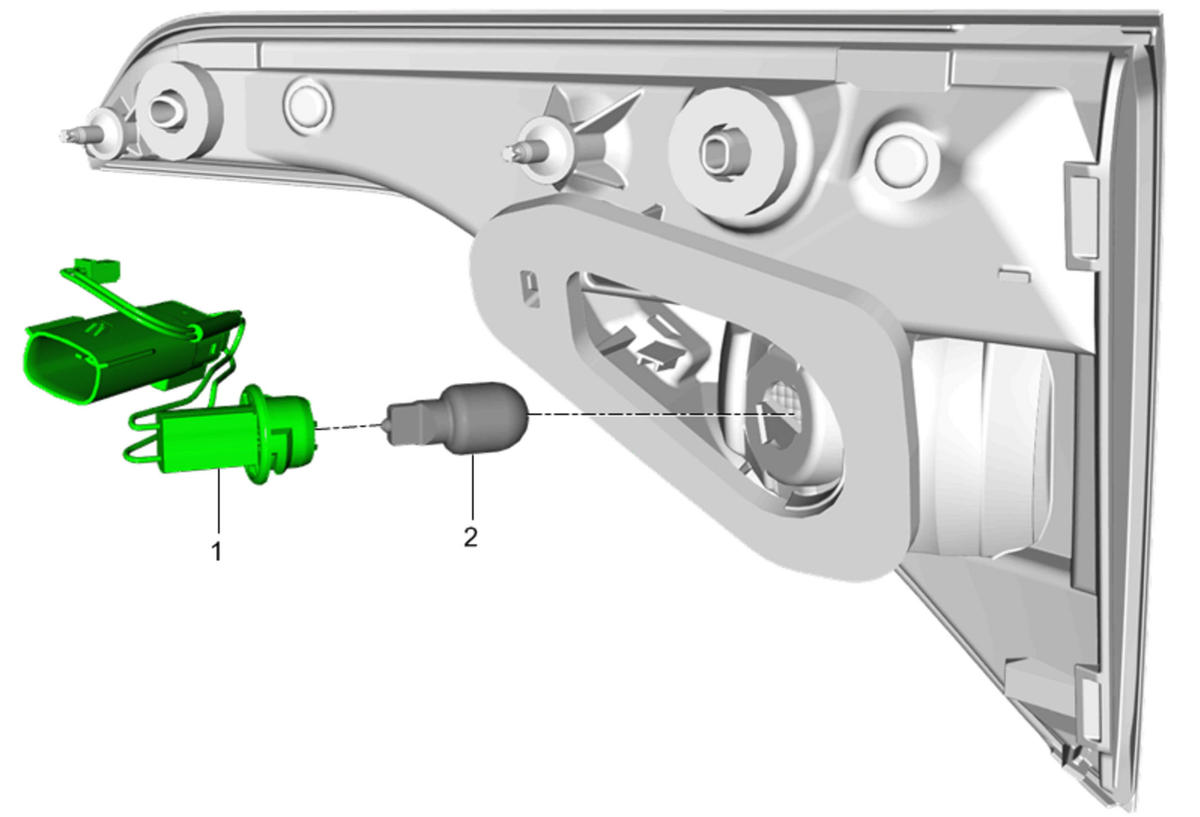

| 1 | Backup Lamp Wiring Harness Socket Procedure Rotate the bulb socket counterclockwise to remove it from the lamp housing. |
| 2 | Backup Bulb Procedure Pull the bulb from the bulb socket. |
