Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Radio Control Switch- Steering Wheel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

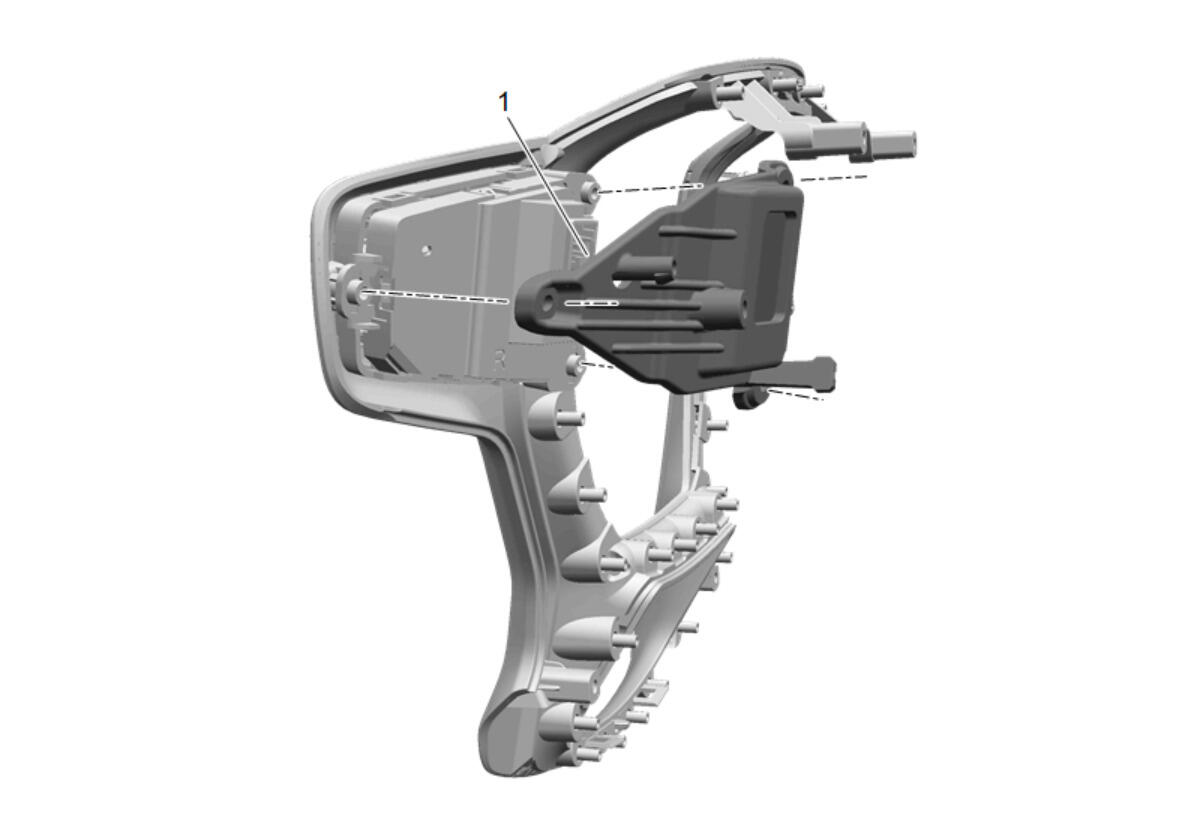

Radio Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

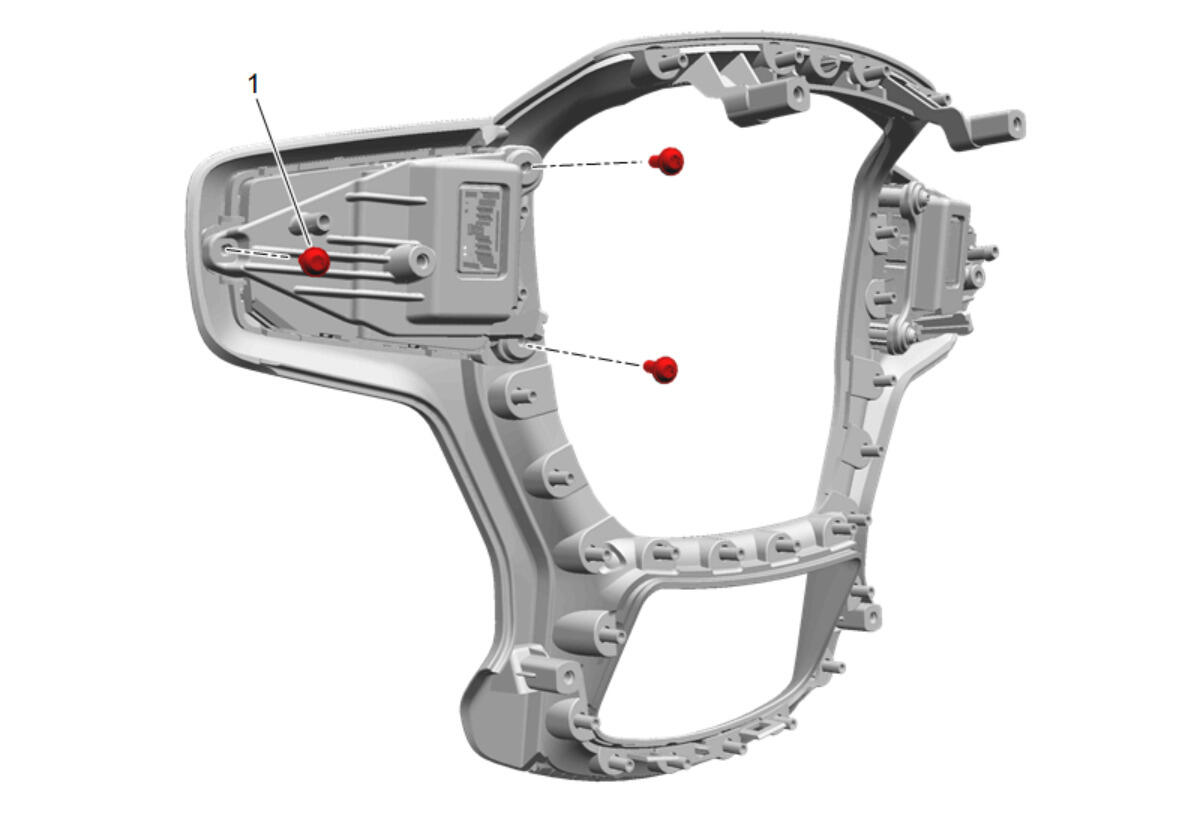

Install the 3 steering wheel spoke cover switch screws (1) and tighten to 0.80 N.m (7 lb in).
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Spoke Cover (1) - Install - Steering Wheel Spoke Cover Replacement (GMC)
Courtesy of GENERAL MOTORS COMPANY

Install the radio favorites switch (1).
Courtesy of GENERAL MOTORS COMPANY

Install the radio volume switch (1).
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Shroud (1) - Install - Steering Wheel Shroud Replacement
Install the steering wheel. Steering Wheel Replacement (GMC)
