Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

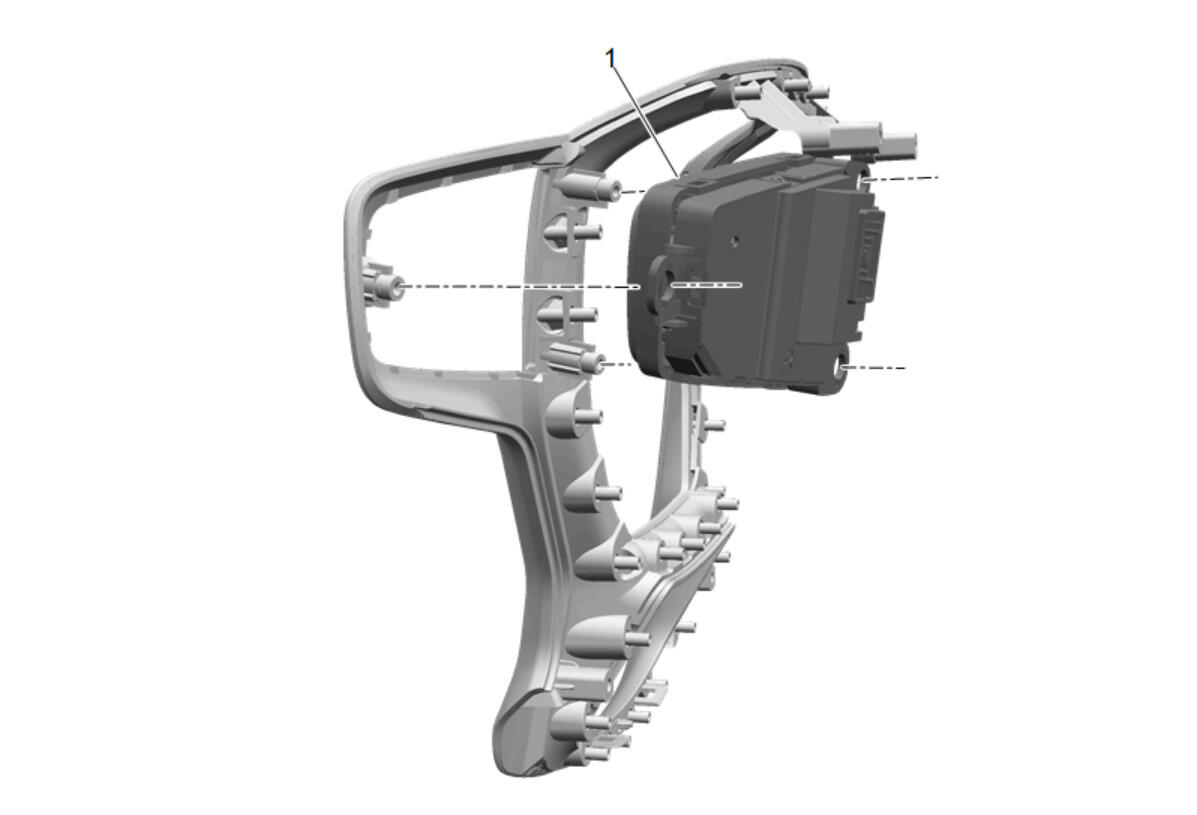

Cruise Control Switch-Steering Wheel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

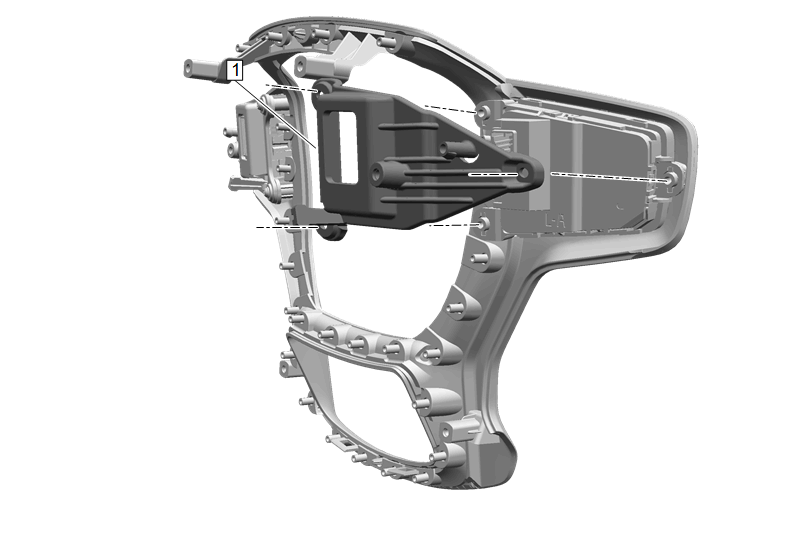

Install cruise control release switch bracket (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

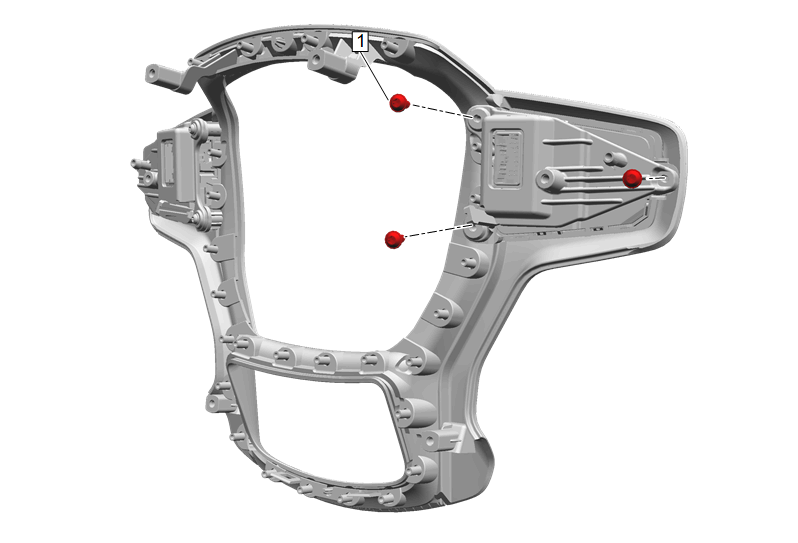

Install the 3 steering wheel spoke cover switch screws (1) and tighten to 0.8 N.m (7 lb in).
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Spoke Cover (1) - Install - Steering Wheel Spoke Cover Replacement (Holden)
Courtesy of GENERAL MOTORS COMPANY

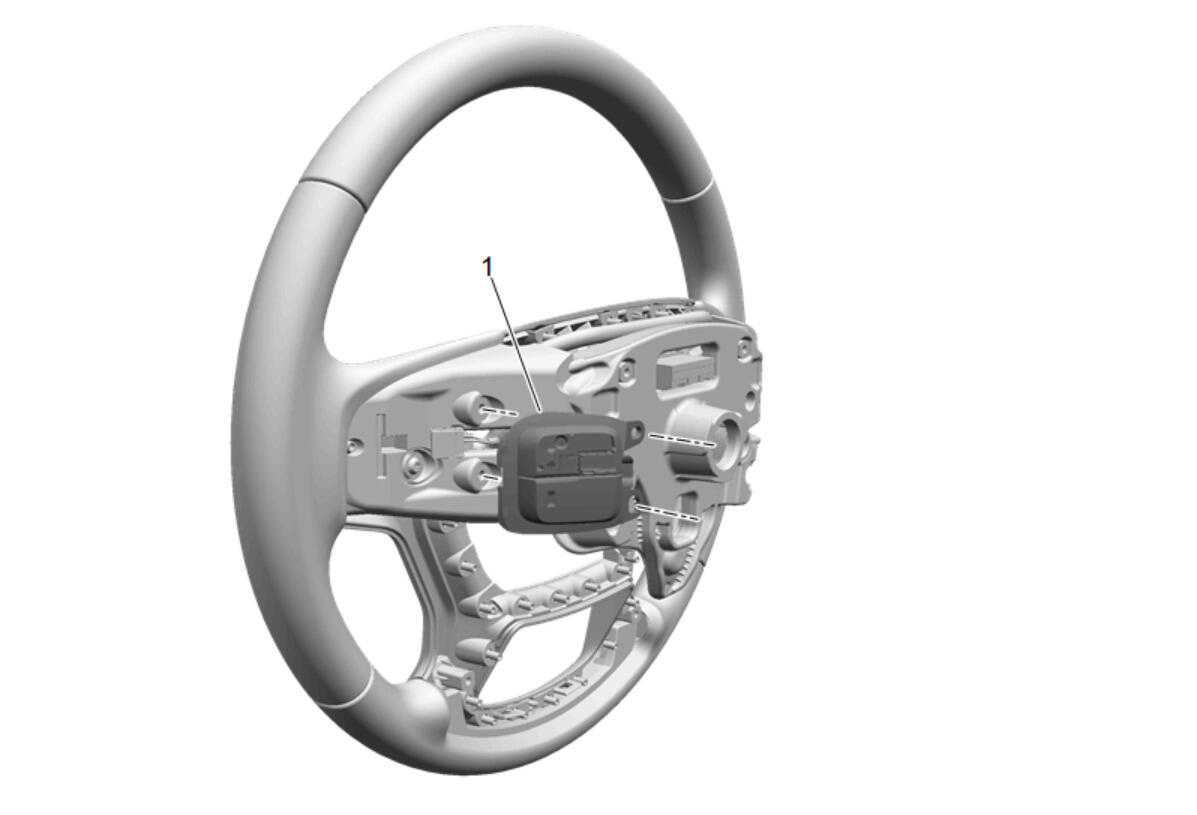

Install the radio favorites switch (1).
Courtesy of GENERAL MOTORS COMPANY

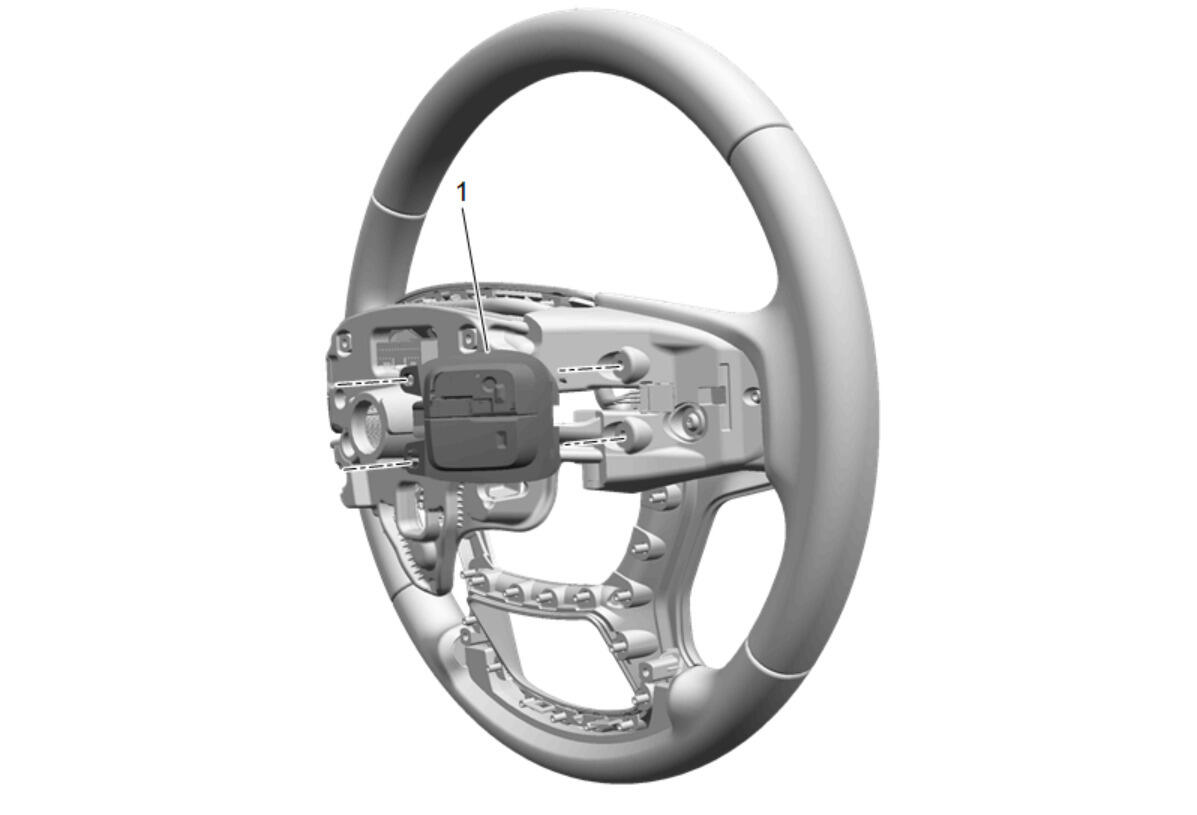

Install the radio volume switch (1).
Courtesy of GENERAL MOTORS COMPANY

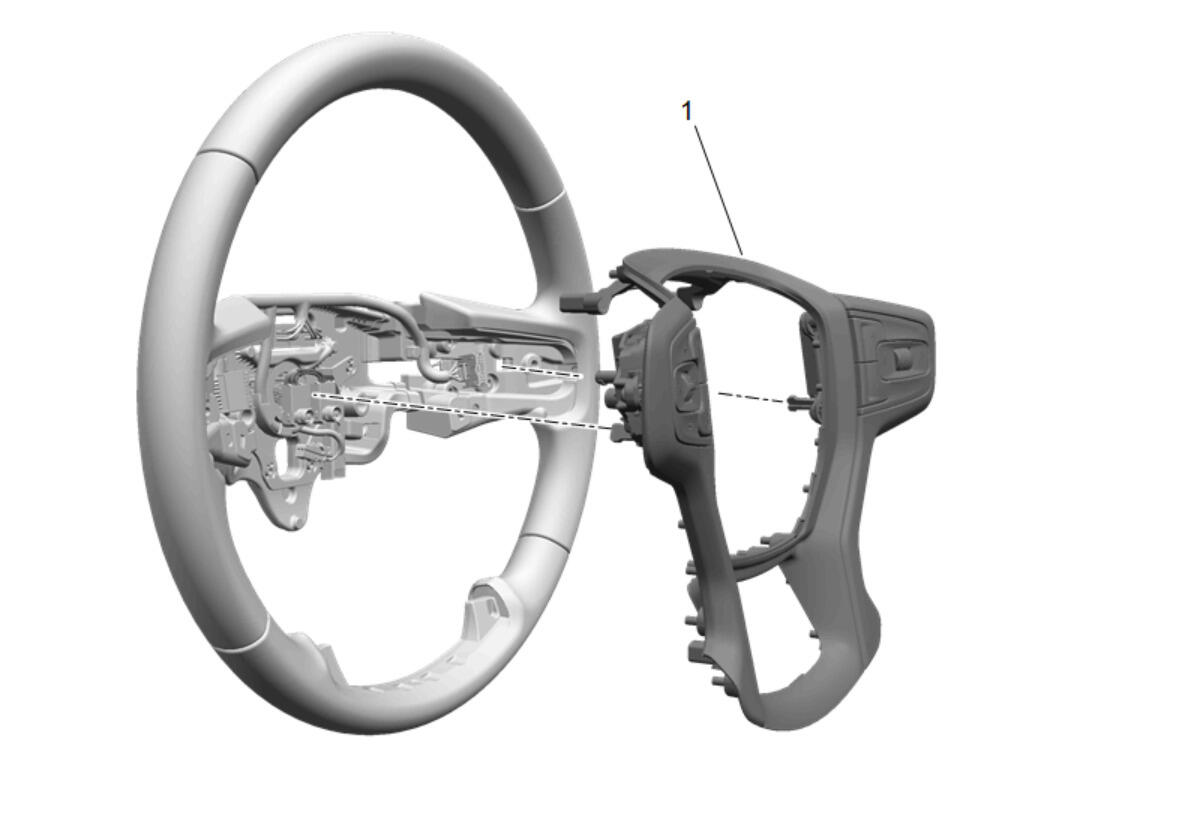

Steering Wheel Shroud (1) - Install - Steering Wheel Shroud Replacement
Install the steering wheel. Steering Wheel Replacement (Holden)
