Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

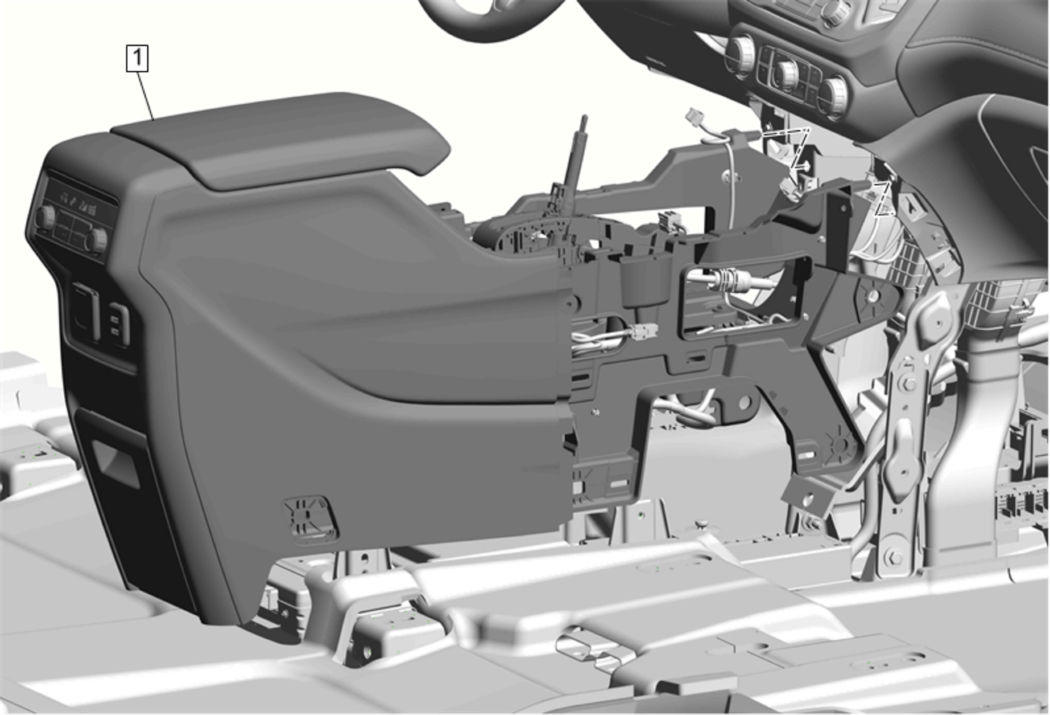

  1. GM4420364Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the front floor console assembly (1) into the vehicle.

  2. Connect the electrical connectors.
  3. GM4393979Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Floor Console Trim Plate (1) - Reposition

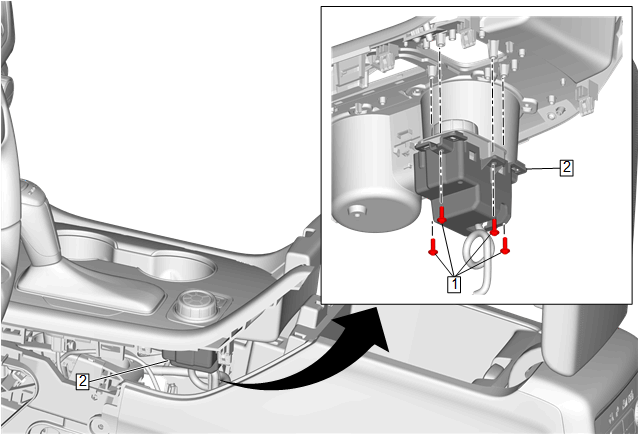

  5. GM5020561Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The ride control switch must be plugged in before installing the front floor console accessory trim plate.

    Front Floor Console Accessory Trim Plate (2) - Install

    6. CAUTION:

    Refer to Fastener Caution .

  6. Front Floor Console Bolt (1) - Install and tighten [4x] 1 N.m (9 lb in)

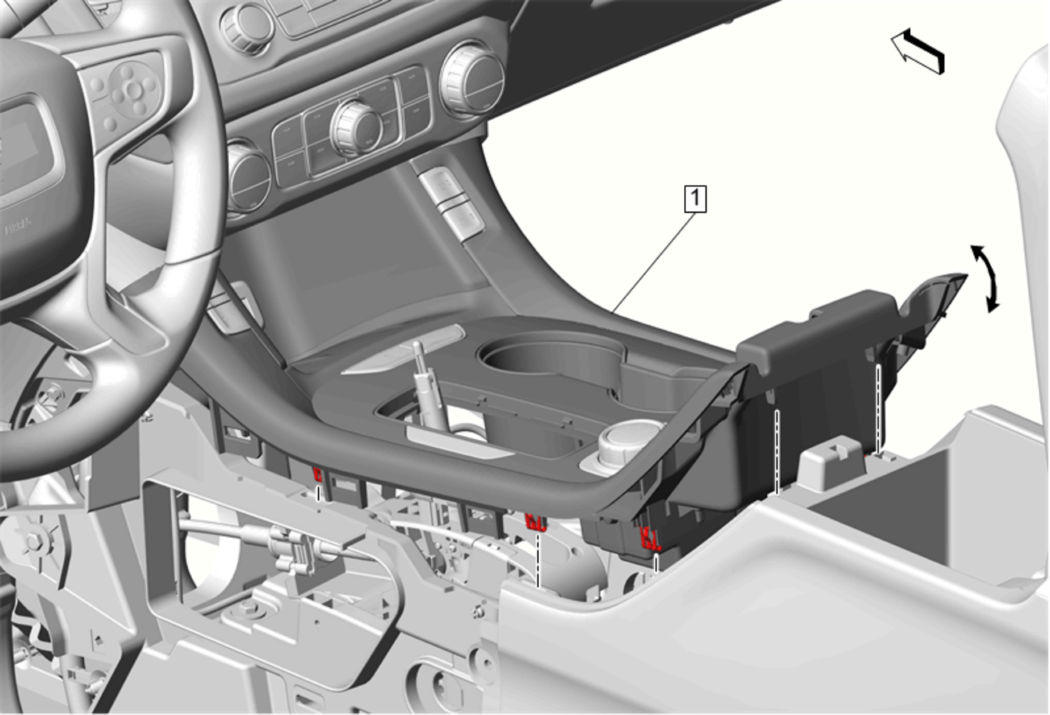

  7. GM4393675Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Install

  8. Carefully guide the front floor console pins into the instrument panel assembly.

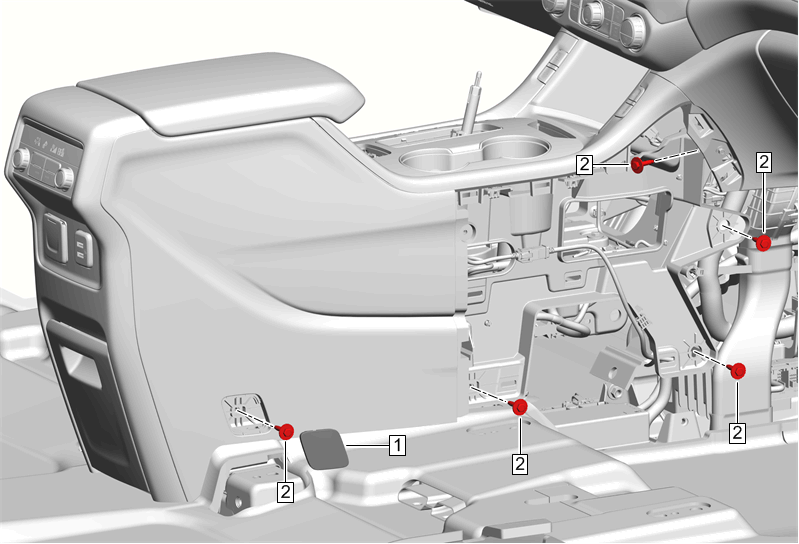

  9. GM4446766Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] 9 N.m (80 lb in)

  10. Front Floor Console Bolt Access Hole Cover (1) - Install

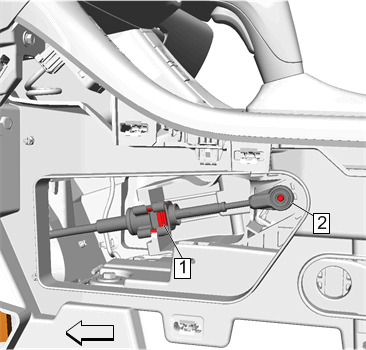

  11. GM4364012Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury.

    Install the transmission range selector lever cable to the transmission control lever base. Insure the cable retainer (1) is fully secured to the transmission control lever base.

  12. Connect the transmission range selector lever cable terminal (2) to the shift lever pin.

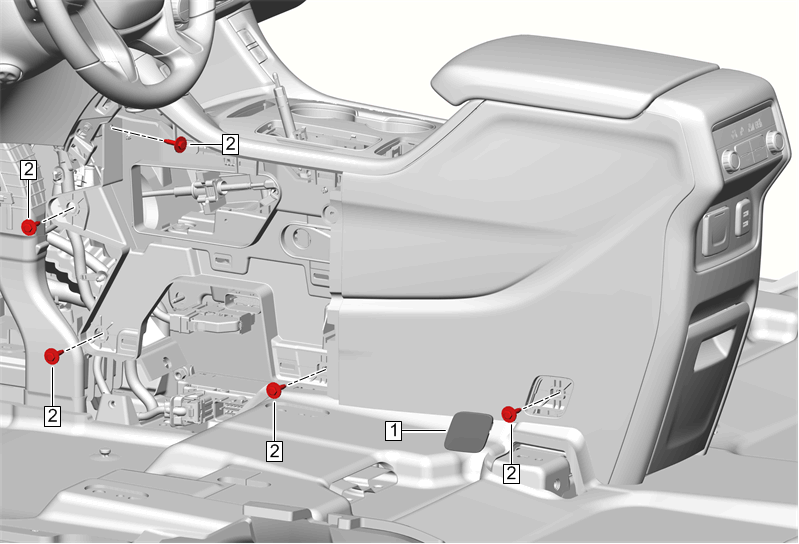

  13. GM4446760Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] 9 N.m (80 lb in)

  14. Front Floor Console Bolt Access Hole Cover (1) - Install

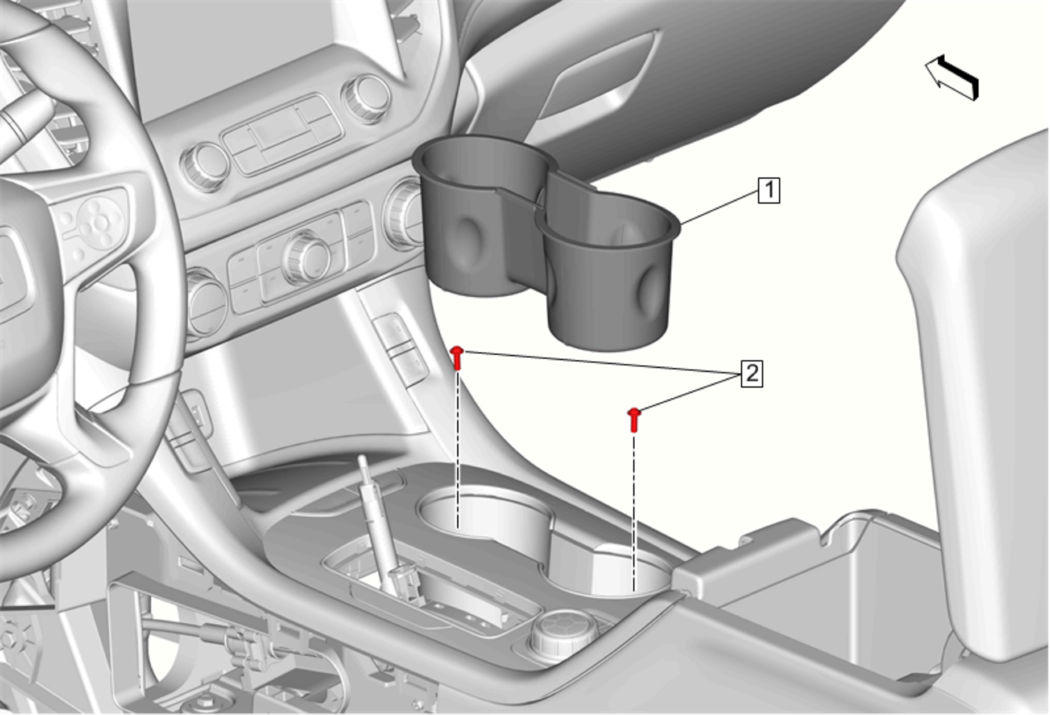

  15. GM4393402Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Front Floor Console Trim Plate Bolt (2) - Install and tighten [2x] 1 N.m (9 lb in)

  16. Front Floor Console Cup Holder Liner (1) - Install

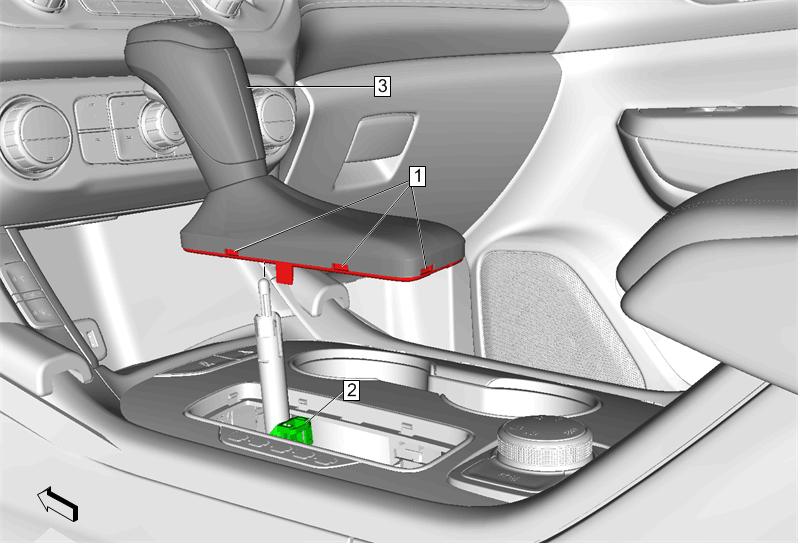

  17. GM4356302Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Lever Knob (3) - Install - Transmission Control Lever Knob Replacement

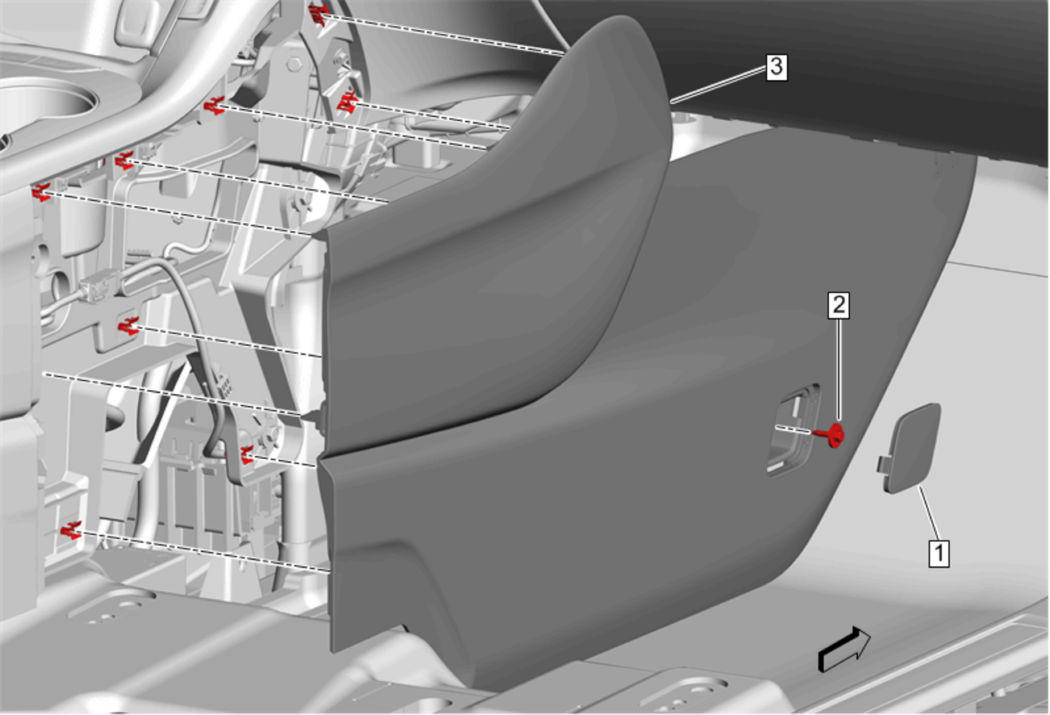

  18. GM4382579Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side

  19. GM4382575Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (3) - Install - Front Floor Console Extension Panel Replacement - Left Side
