Installation Procedure

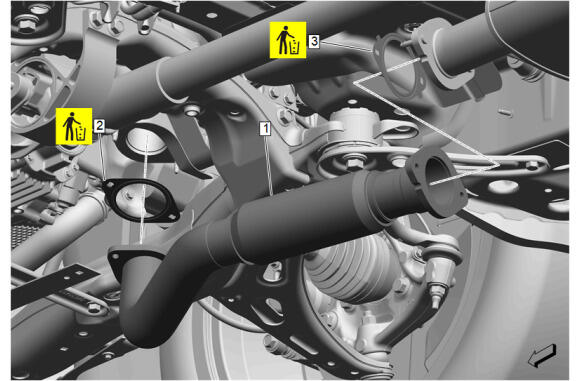

  1. Exhaust System Intermediate Gasket (3) - Install NEW
    GM5180273Courtesy of GENERAL MOTORS COMPANY
  2. Catalytic Converter Gasket (2) - Install NEW
  3. Exhaust Front Pipe (1) - Install

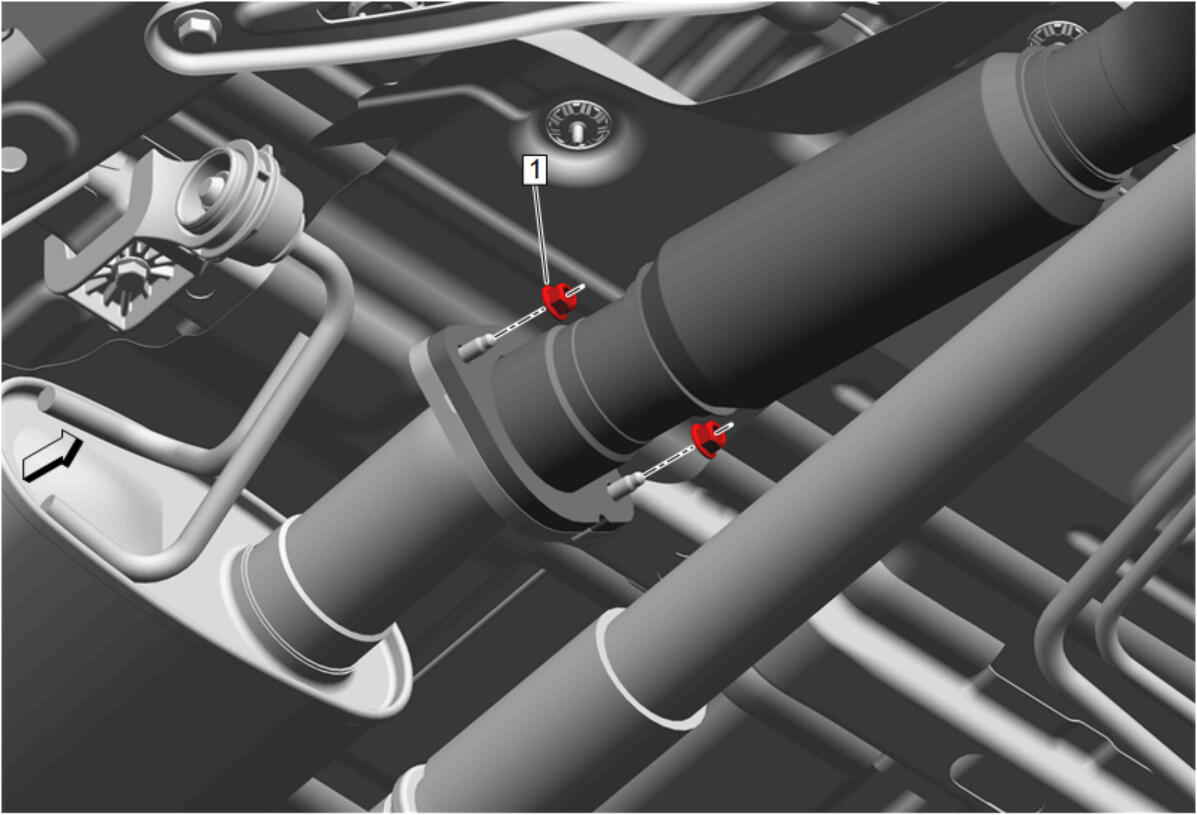

  4. Exhaust System Intermediate Nut (1) - Install [2x] - Exhaust Muffler Replacement (LSY)
    GM5180268Courtesy of GENERAL MOTORS COMPANY

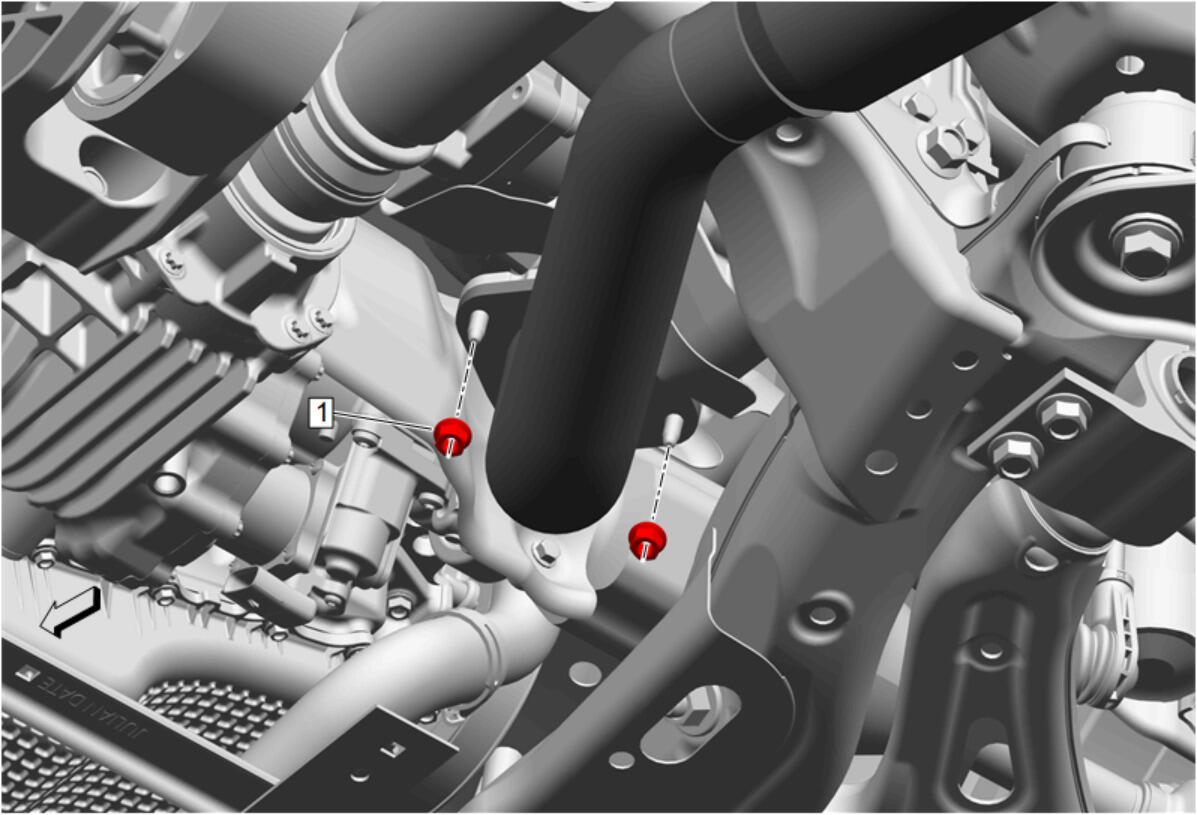

  5. Catalytic Converter Nut (1) - Install [2x] - Warm Up Three-Way Catalytic Converter Replacement (LSY)
    GM5180147Courtesy of GENERAL MOTORS COMPANY
  6. Lower the vehicle.
  7. Inspect the exhaust system for leaks.
