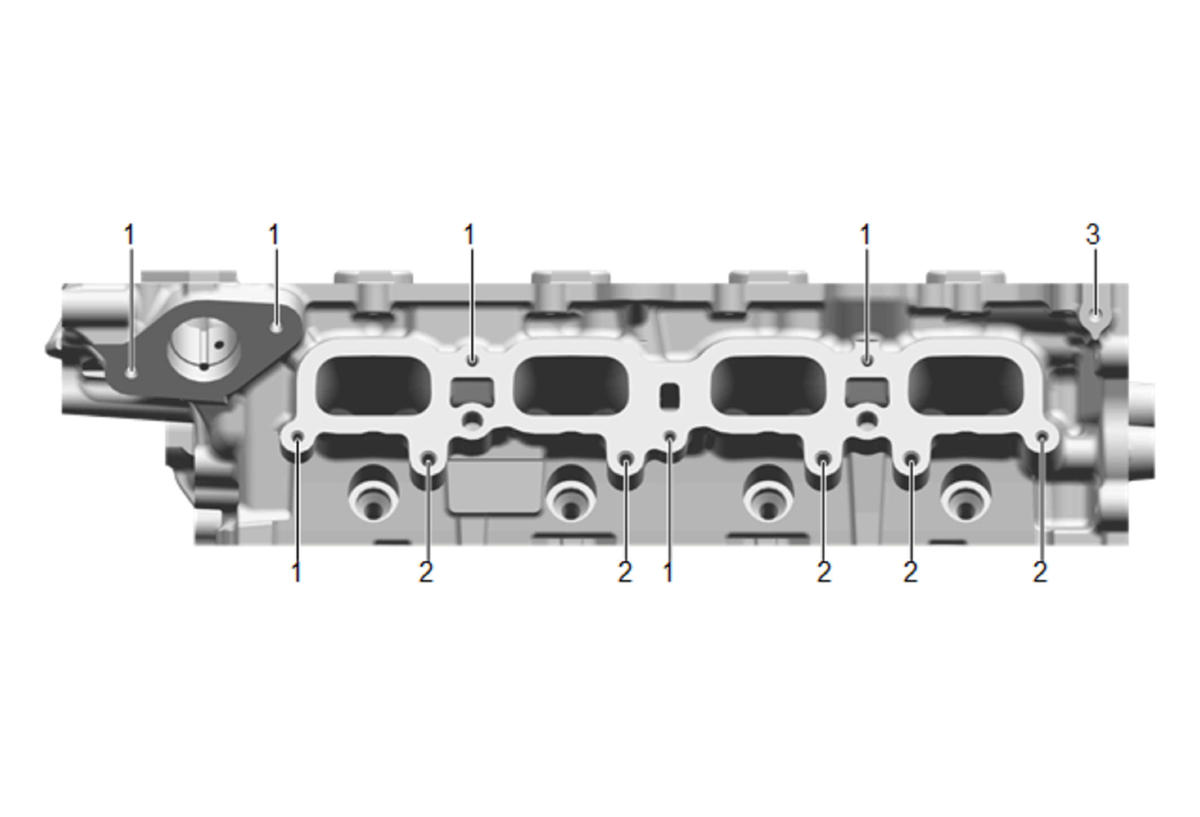

Cylinder Head Right Side View - Intake Manifold Deck Face
Cylinder Head Right Side View - Intake Manifold Deck Face
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth Maximum |
Tap Depth Maximum |
||
|---|---|---|---|---|---|---|---|---|---|---|
| EN 42385 | MM | IN | MM | IN | ||||||
| 1 | M6x1.0 | 161031 | 201 | 202 | 203 | 204 | 23.0 | 0.907 | 23.0 | 0.907 |
| 2 | M6x1.0 | 205 | 201 | 202 | 203 | 204 | 23.0 | 0.907 | 23.0 | 0.907 |
| 3 | M6x1.0 | 205 | 701 | one | 203 | 204 | 23.0 | 0.907 | 23.0 | 0.907 |
