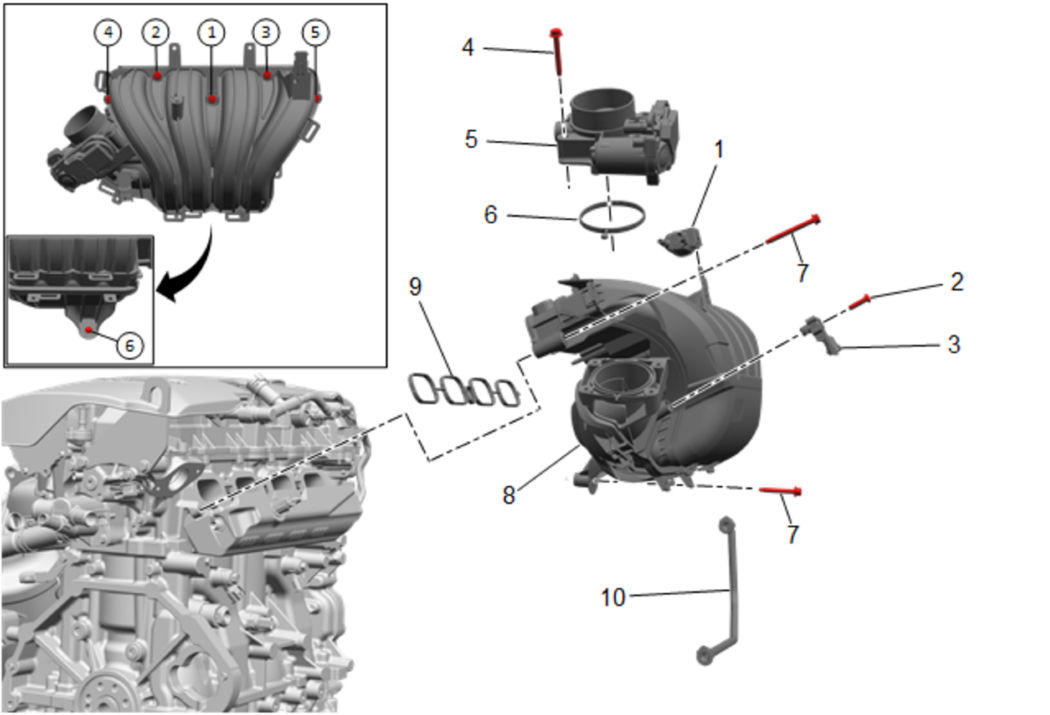

Intake Manifold and Components
NOTE:
Callouts in the following chart represent components shown in graphic above.
Intake Manifold and Components
| Callout | Component Name |
|---|---|
| 1 | EVAP Canister Valve Tube |
| 2 | Intake Manifold Gasket |
| 3 | Intake Manifold |
| 4 | Intake Manifold Bolts (Qty: 6)
CAUTION:
Alternately hand-tighten the fuel pump bolts one turn at a time until the pump is fully seated. Trying to draw down the pump without even side-to-side tightening may result in pump plunger damage.
CAUTION:
Refer to Fastener Caution .
NOTE:
Tighten the bolts in sequence. Tighten 12 N.m (106 lb in) |
| 5 | Throttle Body Gasket |
| 6 | Throttle Body |
| 7 | Throttle Body Bolts (Qty: 4) Tighten 10 N.m (89 lb in) |
| 8 | MAP Sensor |
| 9 | MAP Sensor Bolt Tighten 5 N.m (44 lb in) |
| 10 | EVAP Canister Valve |
