Installation Procedure
- Install the transmission to the engine. Transmission Replacement (Front Wheel Drive) , or Transmission Replacement (All Wheel Drive with LSY or LCV)
- Position the powertrain and support table under the vehicle.
- Raise the powertrain into position under the vehicle.
- With the table positioned, if required, lower the vehicle over the powertrain.
- Install the drivetrain and front suspension cradle to the vehicle. Drivetrain and Front Suspension Cradle Removal and Installation
- Lower the vehicle.
- Left Transmission Mount Bolt (3) - Install [4x] - Transmission Mount Replacement
- Engine Mount Bolt (1) - Install [2x] - Engine Mount Replacement

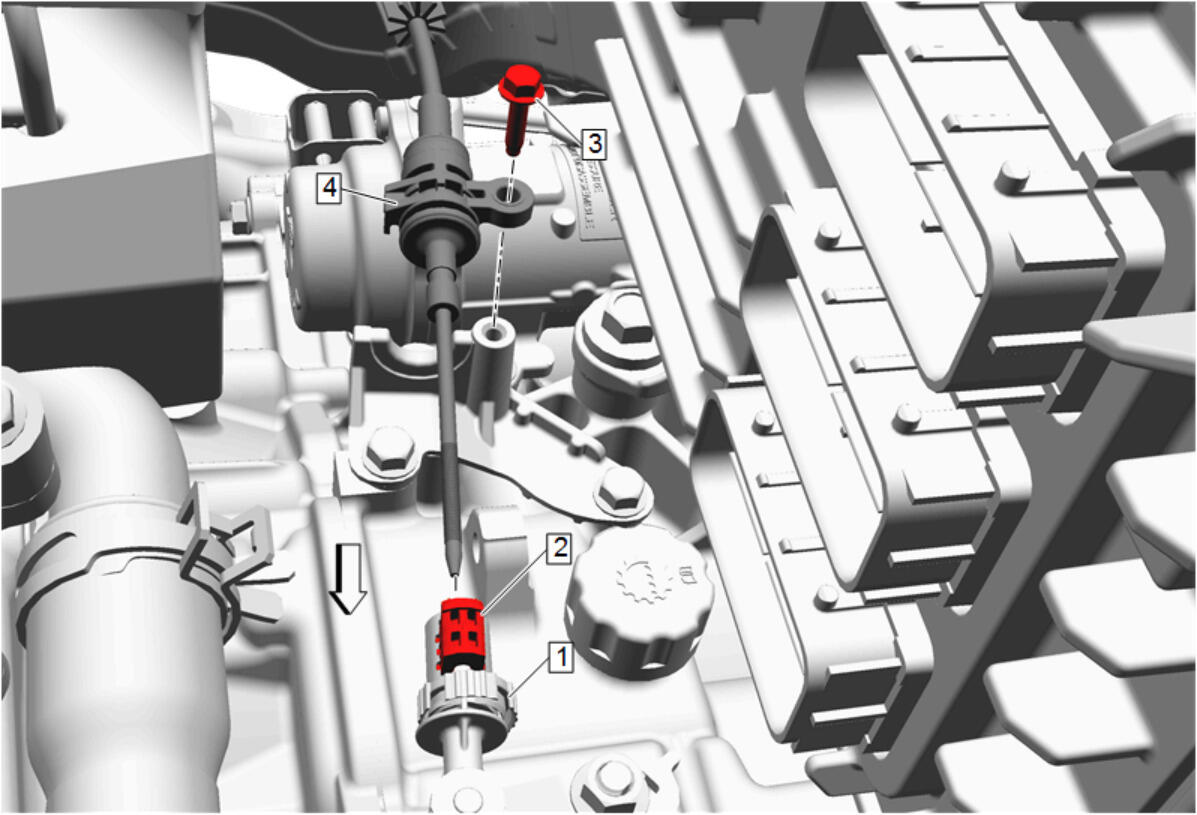

- Automatic Transmission Range Selector Lever Cable (4) - Connect - TRANSMISSION REPLACEMENT (ALL WHEEL DRIVE WITH LSY OR LCV)
- Radiator Surge Tank Inlet Hose @ Engine Coolant Air Bleed Pipe - Connect - Radiator Surge Tank Inlet Hose Replacement (LCV From Radiator Surge Tank to Radiator and Radiator Surge Tank Outlet Pipe)
- Left Front Wheel Drive Shaft - Install - Front Wheel Drive Half Shaft Replacement - Left Side
- Right Front Wheel Drive Shaft - Install - Front Wheel Drive Shaft Replacement - Right Side (LCV, LGX)
- Exhaust Front Pipe - Install - Exhaust Front Pipe Replacement (LCV)
- Connect the intermediate shaft (2) then install the intermediate shaft pinch bolt (1). Intermediate Steering Shaft Replacement
- Front Stabilizer Shaft Link (2) @ Front Stabilizer Shaft - Connect - Stabilizer Shaft Link ReplacementNOTE:
Connect the left and right sides. Left side shown, right side similar.
- Connect the outer tie rod (3) to the steering knuckle. Steering Linkage Outer Tie Rod ReplacementNOTE:
Connect the left and right sides. Left side shown, right side similar.
- Transmission Fluid Cooler Outlet Pipe (1) @ Transmission Fluid Auxiliary Cooler Outlet Pipe (2) - Connect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
- Transmission Fluid Cooler Inlet Pipe (1) @ Transmission Fluid Auxiliary Cooler Inlet Pipe (2) - Connect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

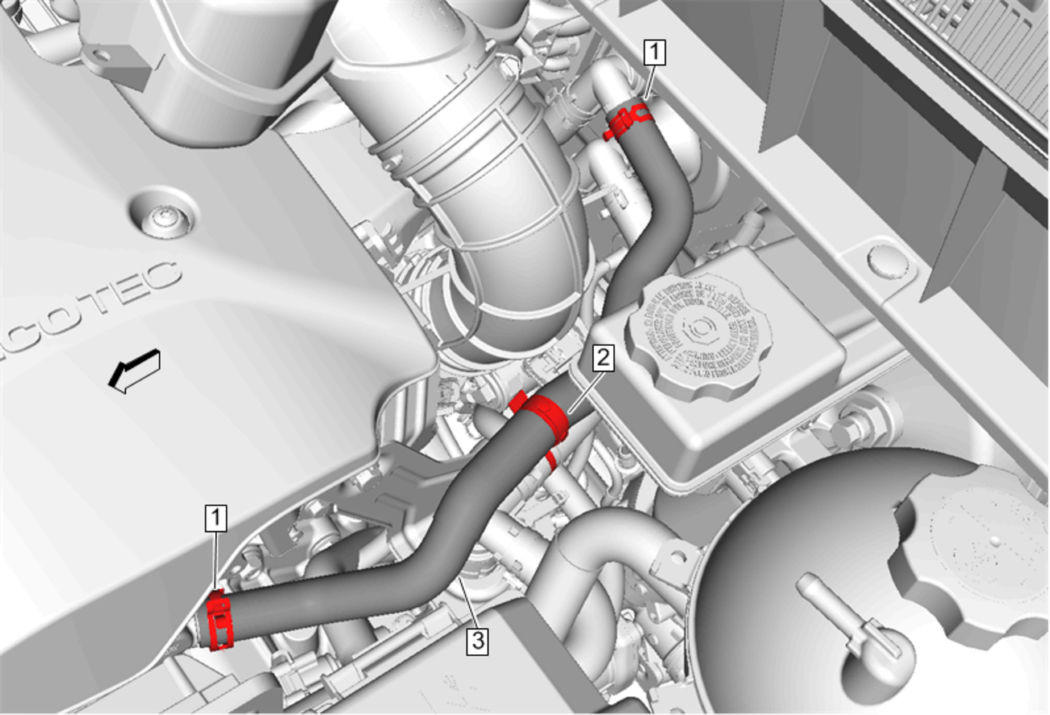

- Heater Inlet Hose (3) - Install - Heater Inlet Hose Replacement (LCV Water Outlet to Heater Inlet Hose Connector)
, or Heater Inlet Hose Replacement (LCV Heater Inlet Hose Connector to Auxiliary Air Conditioning Evaporator Intermediate Tube)
- Heater Outlet Hose (2) - Install - Heater Outlet Hose Replacement (LCV Heater Outlet Hose Connector to Auxiliary Air Conditioning Evaporator Intermediate Tube)

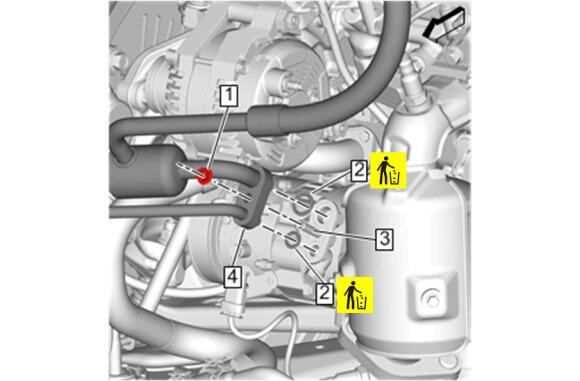

- Air Conditioning Compressor and Condenser Hose (4) @ Air Conditioning Compressor - Install - Air Conditioning Compressor and Condenser Hose Replacement (LCV)
- Radiator Inlet Hose (2) - Install - Radiator Inlet Hose Replacement (LCV)

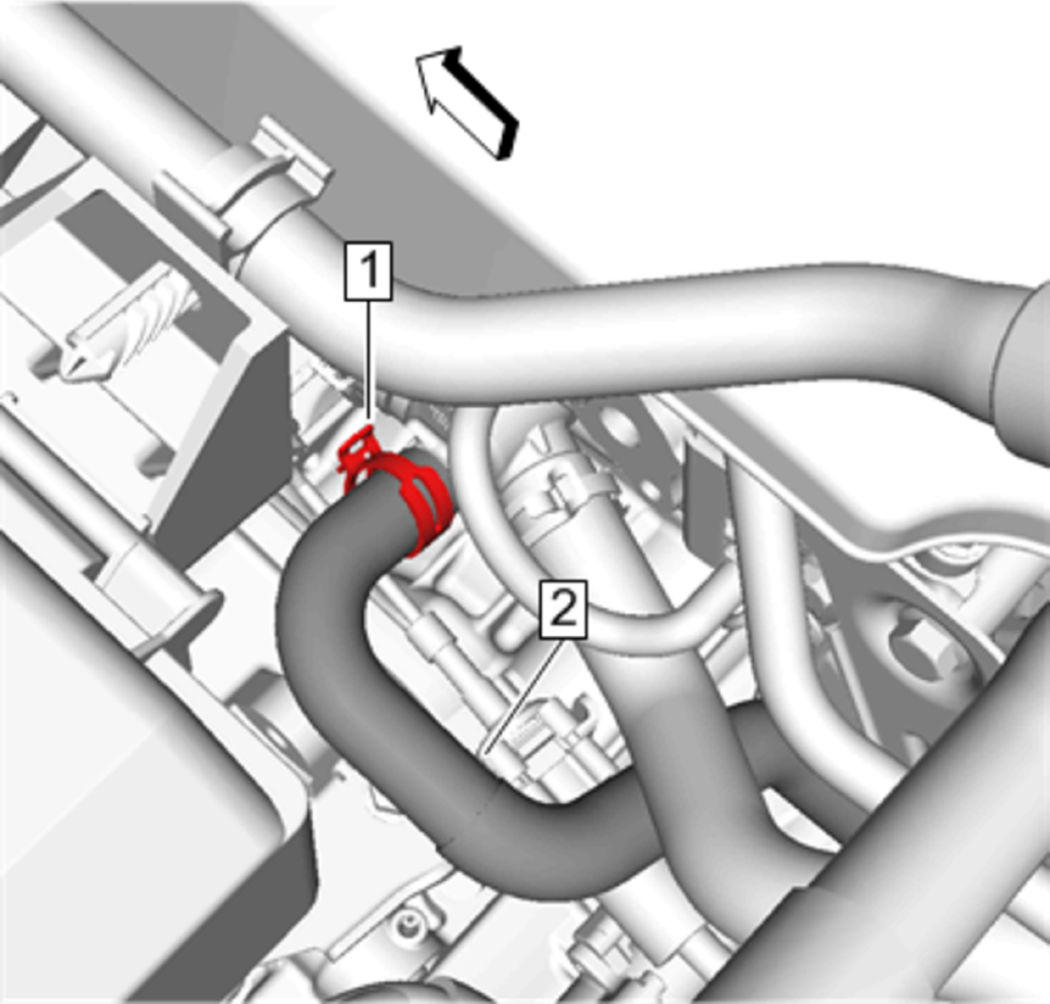

- Radiator Outlet Hose (2) - Install - Radiator Outlet Hose Replacement (LCV)
- Evaporative Emission Canister Purge Hose (1) - Install - Evaporative Emission Canister Purge Hose Replacement
- Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement

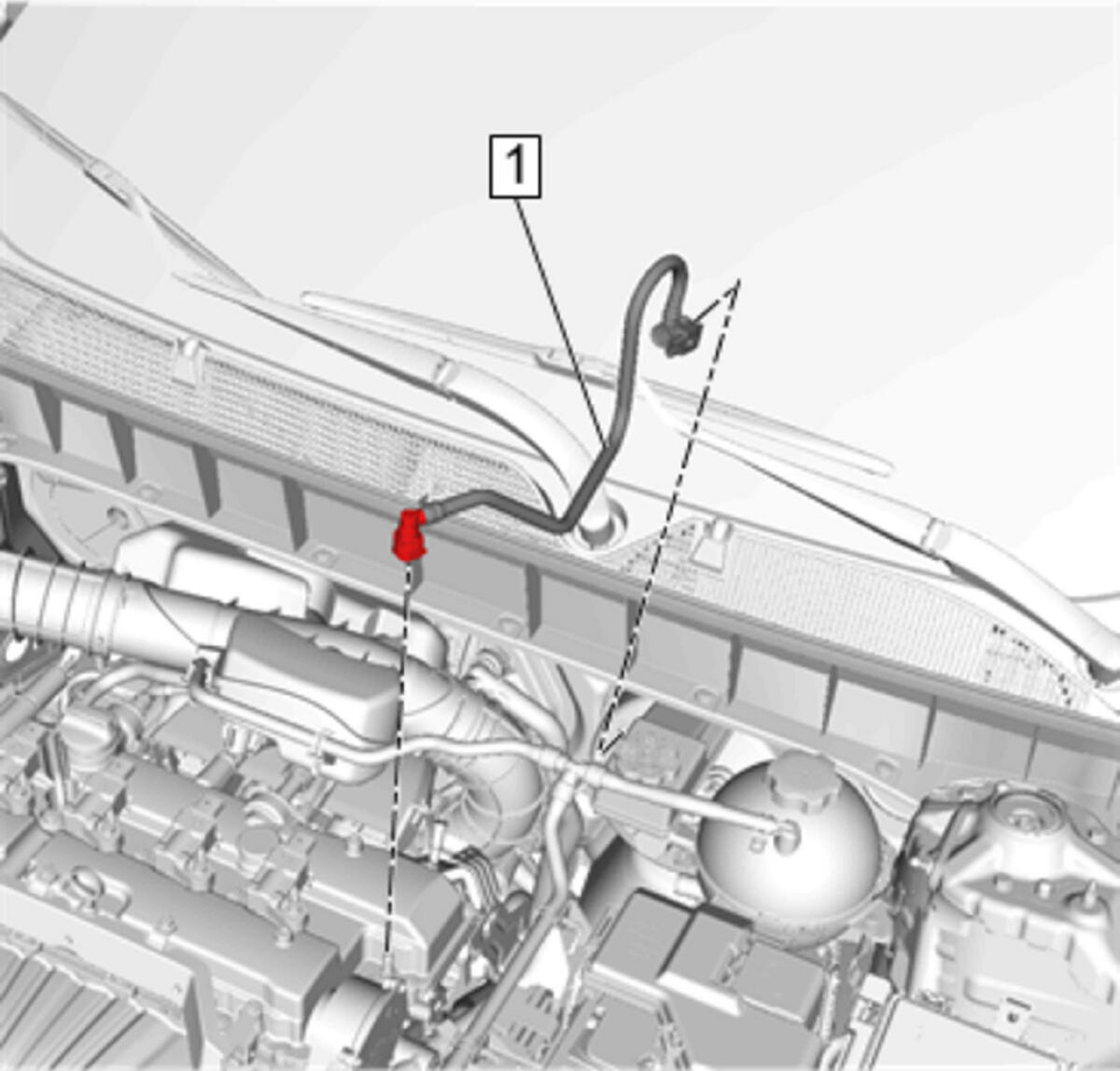

- Power Brake Booster Vacuum Hose (1) - Install - Power Brake Booster Vacuum Hose Replacement (LCV)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LCV, LGX) , or Cooling System Draining and Filling (GE-47716 LCV, LGX)
- Fuel Feed Front Pipe (1) - Install - Fuel Feed Front Pipe Replacement
- Battery Tray (2) - Install - Battery Tray Replacement
- Recharge the refrigerant. Refrigerant Recovery and Recharging (R-134a) , or Refrigerant Recovery and Recharging (R-1234yf)
- If the engine is replaced with a new engine or has been overhauled, perform the engine prelubing procedure. Engine Prelubing
- If prelubing has not been performed, fill the engine oil. Engine Oil and Oil Filter Replacement
NOTE:
Prelube is necessary if the engine is replaced or overhauled.
