Installation Procedure

NOTE:

For ease of installation, all engine mount bolts should be hand started prior to performing final tightening steps.

  1. Engine Mount (2) - Install
    GM4326249Courtesy of GENERAL MOTORS COMPANY
  2. Engine Mount Bolt (1) - Install and tighten [2x] 100 N.m (74 lb ft)
  3. Hand start NEW engine mount to engine mount bracket bolts (1).

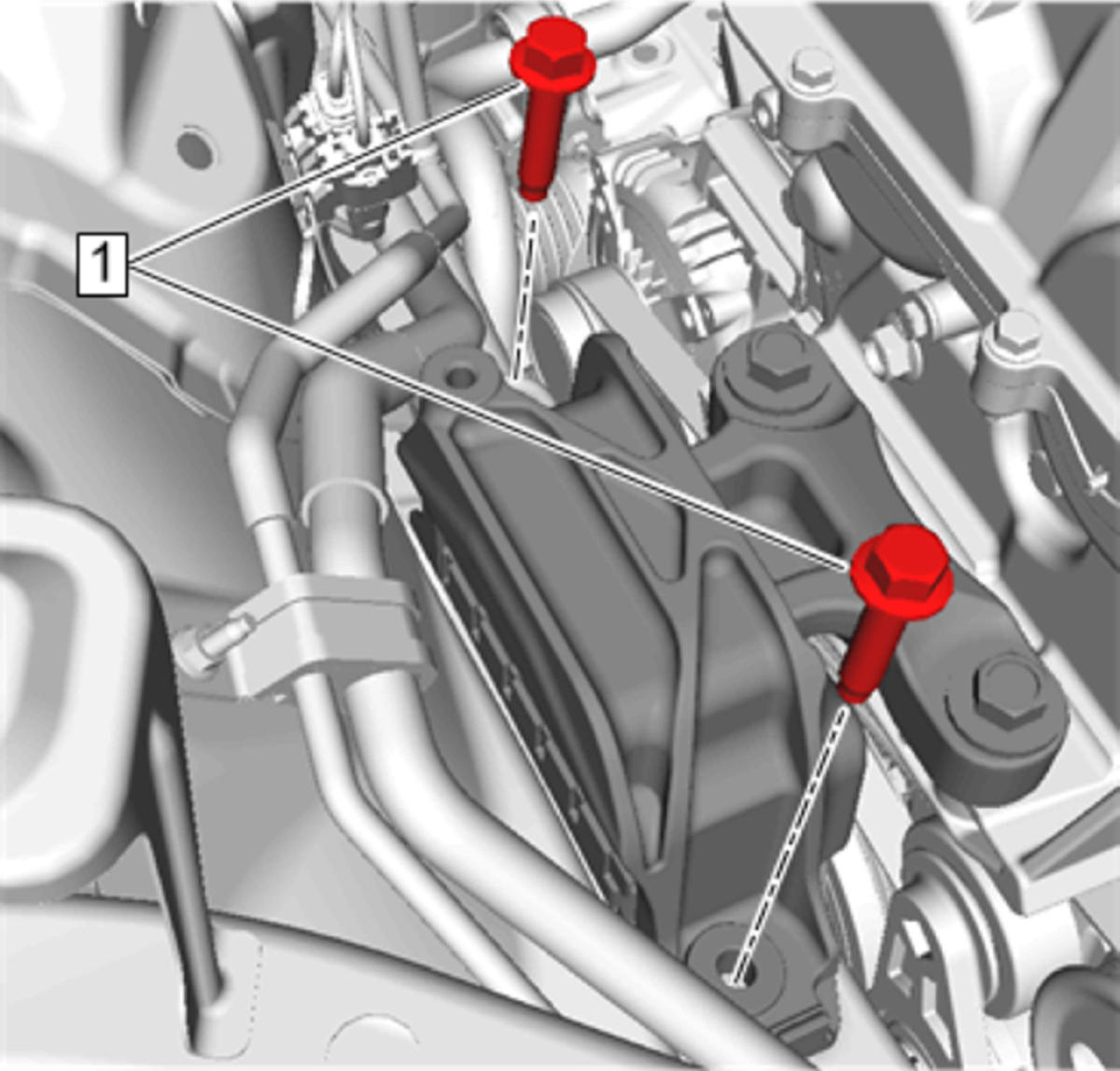

    GM4326248Courtesy of GENERAL MOTORS COMPANY
  4. With the mount fasteners hand tightened, release the tension from the engine support fixture.
    1. Shake the powertrain vigorously by hand to allow the powertrain to settle.
  5. Engine Mount Bolt (1) - Tighten 58 N.m (43 lb ft)
  6. Engine Mount Brace (2) - Install

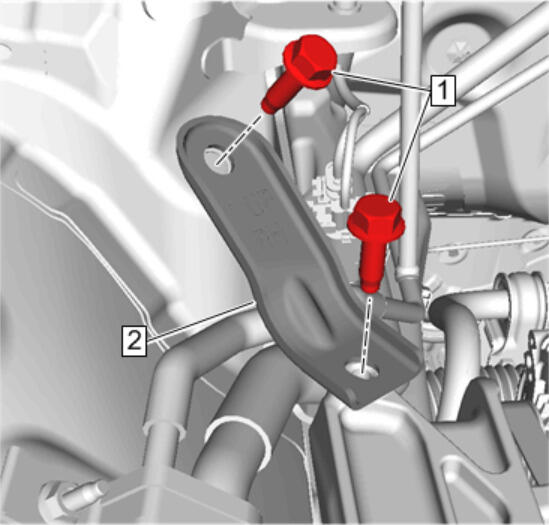

    GM4326239Courtesy of GENERAL MOTORS COMPANY
  7. Engine Mount Brace Bolt (1) - Install and tighten 22 N.m (16 lb ft) [2x]
  8. Engine Support Fixture  - Remove
  9. Air Cleaner Assembly Replacement - Install
  10. Intake Manifold Cover Replacement  - Install
