Removal Procedure

  1. Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
  2. Camshaft Cover Replacement  - Remove
  3. Engine Mount Replacement  - Remove
  4. Crankshaft Balancer Replacement  - Remove
  5. Drive Belt Tensioner Replacement  - Remove

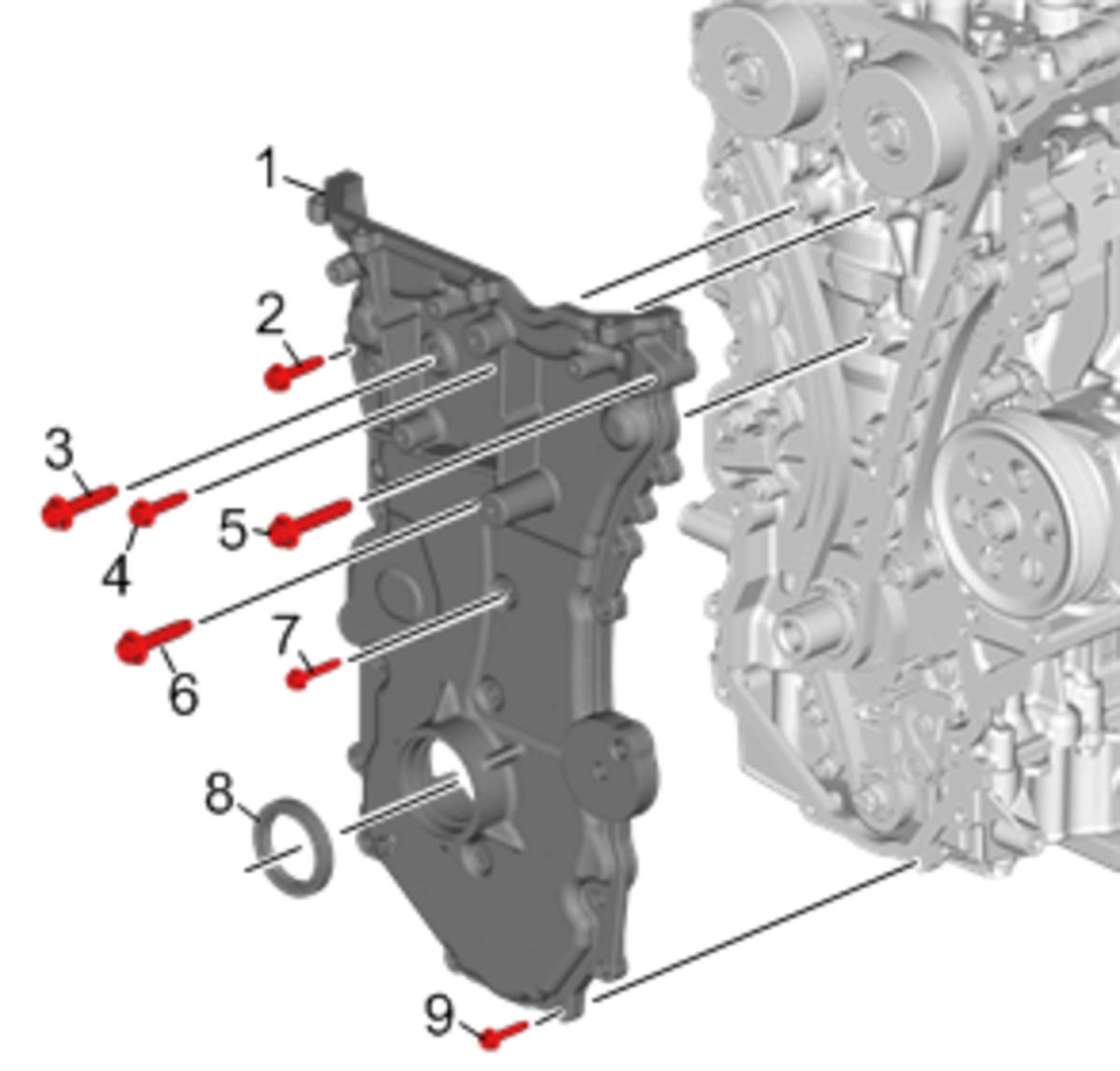

  6. Engine Front Cover Bolt (3, 5 and 6) - Remove and DISCARD
    GM4038928Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Only bolts 3, 5 and 6 will be replaced with NEW bolts.

  7. Engine Front Cover Bolt (2-7, 9) - Remove
  8. Engine Front Cover (1) - Remove
  9. If replacing the engine front cover, remove and DISCARD the crankshaft front oil seal using an appropriate tool.
