Horn Replacement

Courtesy of GENERAL MOTORS COMPANY

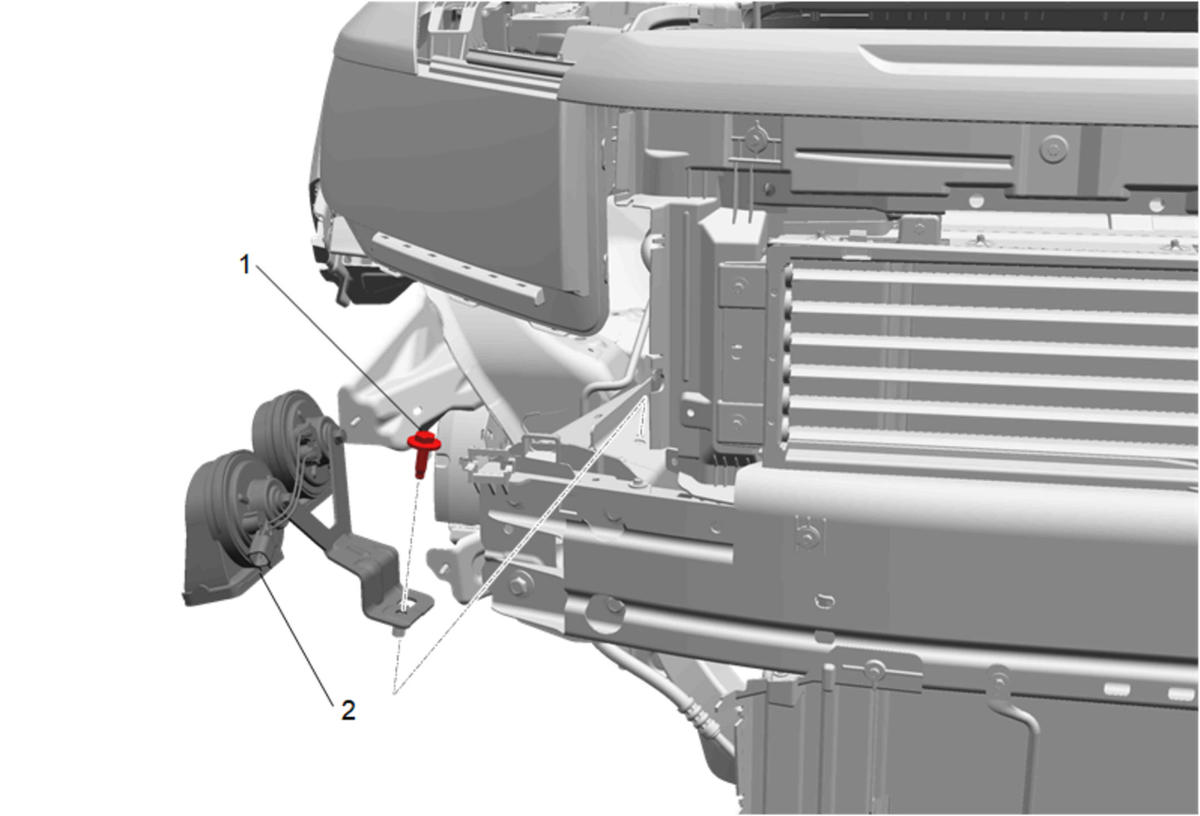

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation
1	Horn Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Dual Horn Procedure Disconnect the electrical connector.
