Installation Procedure

  1. Connect the electrical connector.
    GM4409172Courtesy of GENERAL MOTORS COMPANY
  2. Instrument Panel Compartment (1) - Install

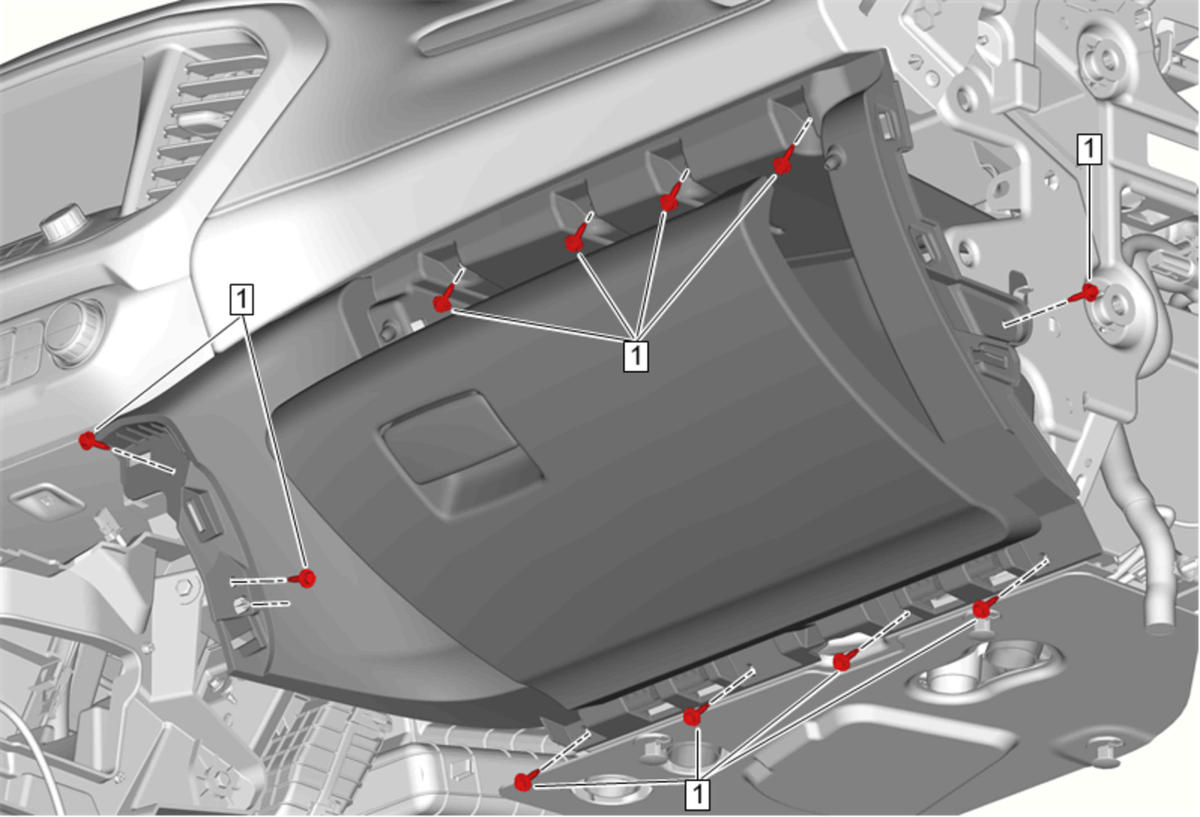

  3. Instrument Panel Compartment Bolt (1) - Install and tighten [11x] 2.5 N.m (22 lb in)
    GM4409171Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

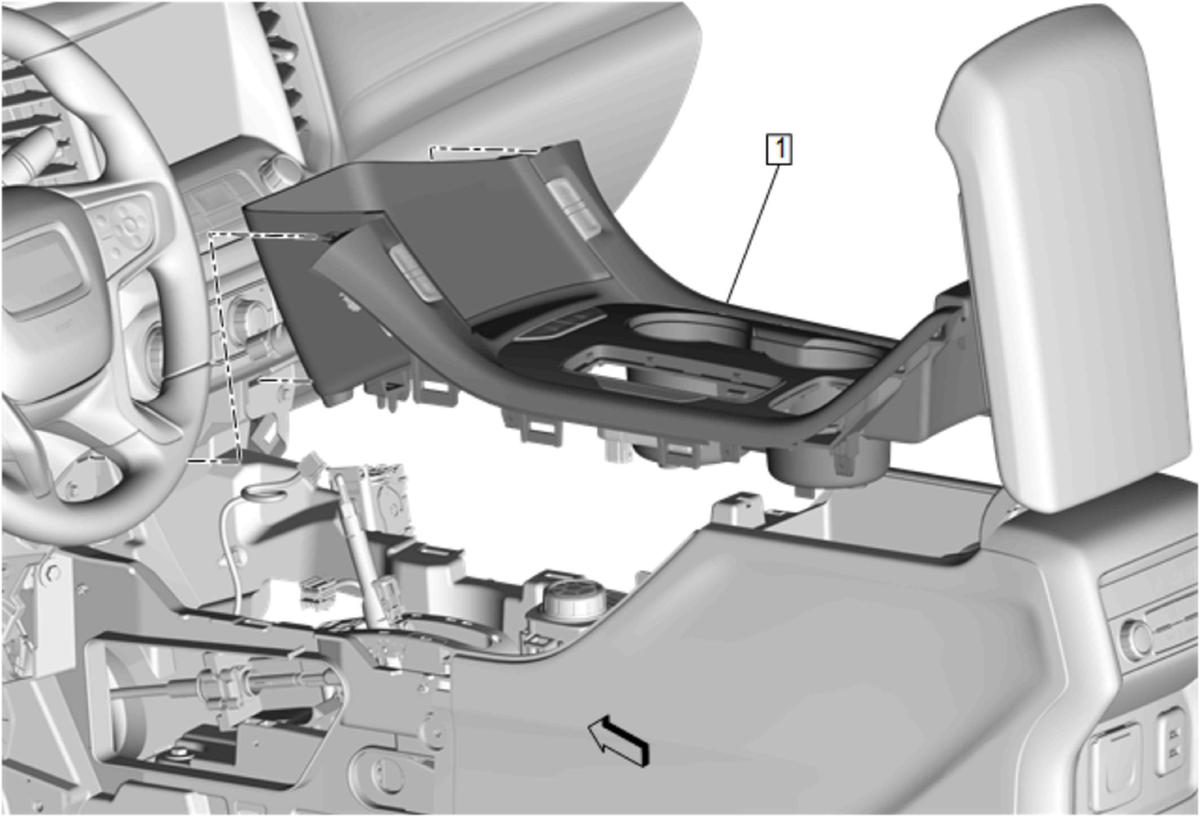

  4. Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement
    GM4393979Courtesy of GENERAL MOTORS COMPANY

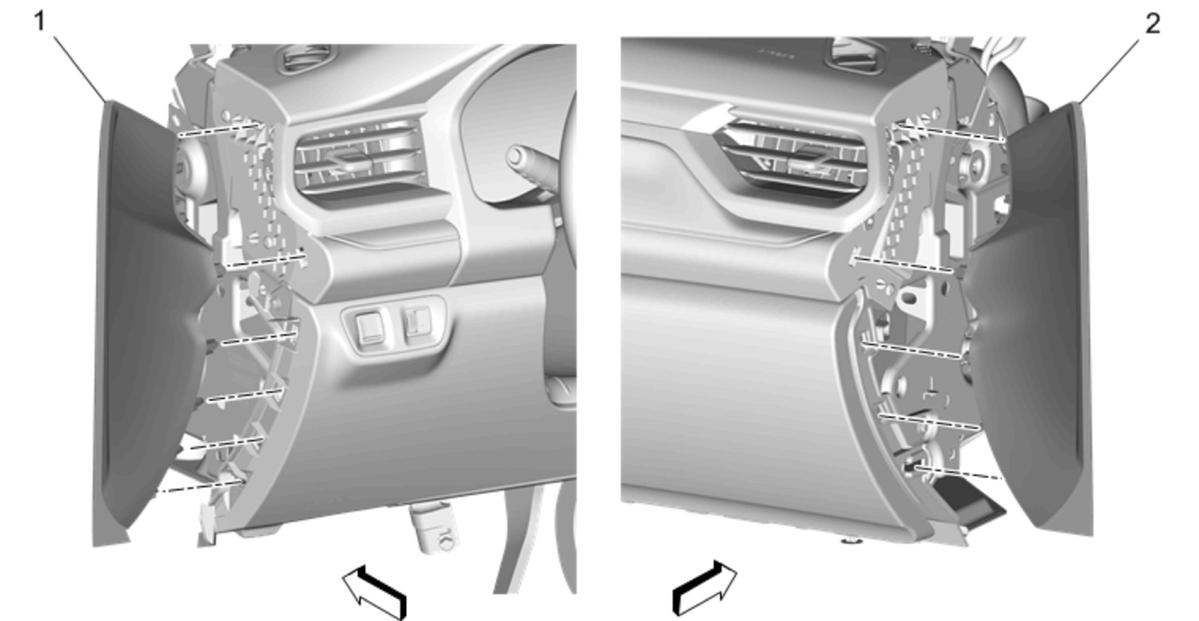

  5. Instrument Panel Outer Trim Cover - Right Side (2) - Install - Instrument Panel Outer Trim Cover Replacement
    GM4381679Courtesy of GENERAL MOTORS COMPANY

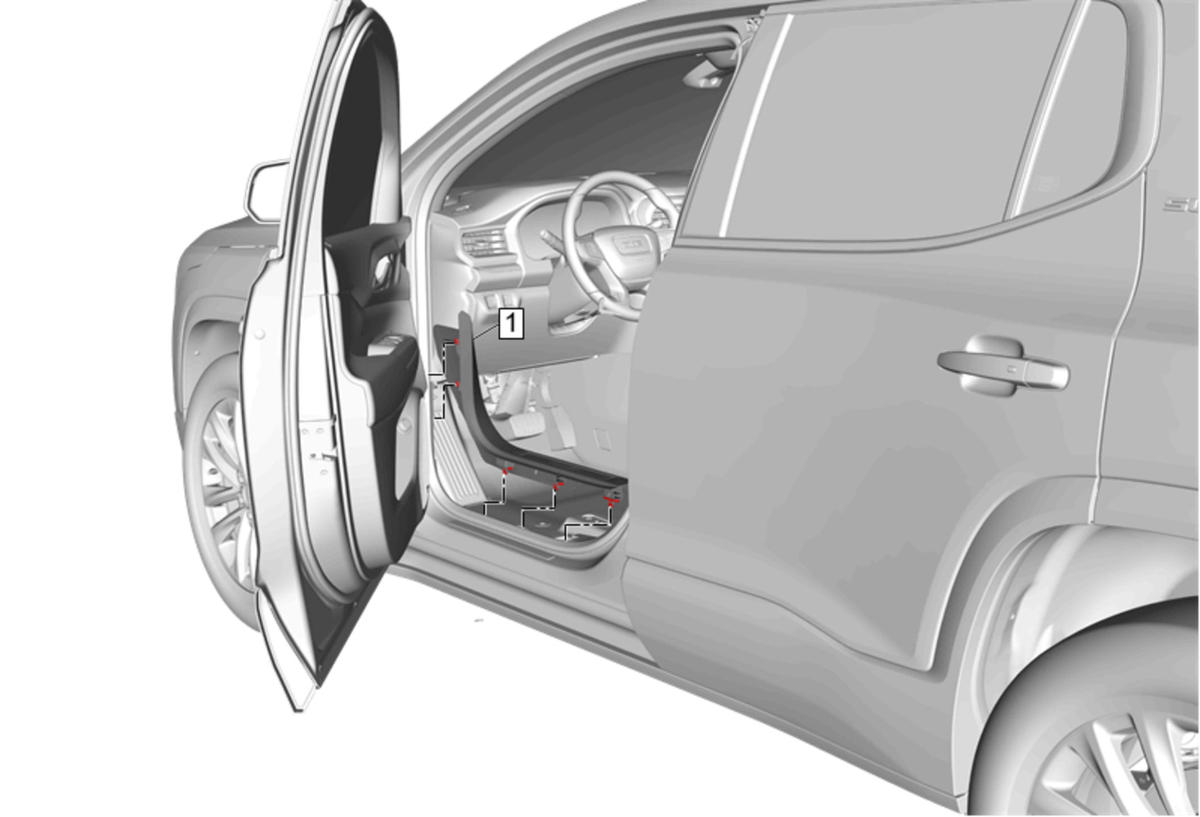

  6. Front Side Door Sill Garnish Molding (1) - Install - Front Side Door Sill Garnish Molding Replacement
    GM4430512Courtesy of GENERAL MOTORS COMPANY
